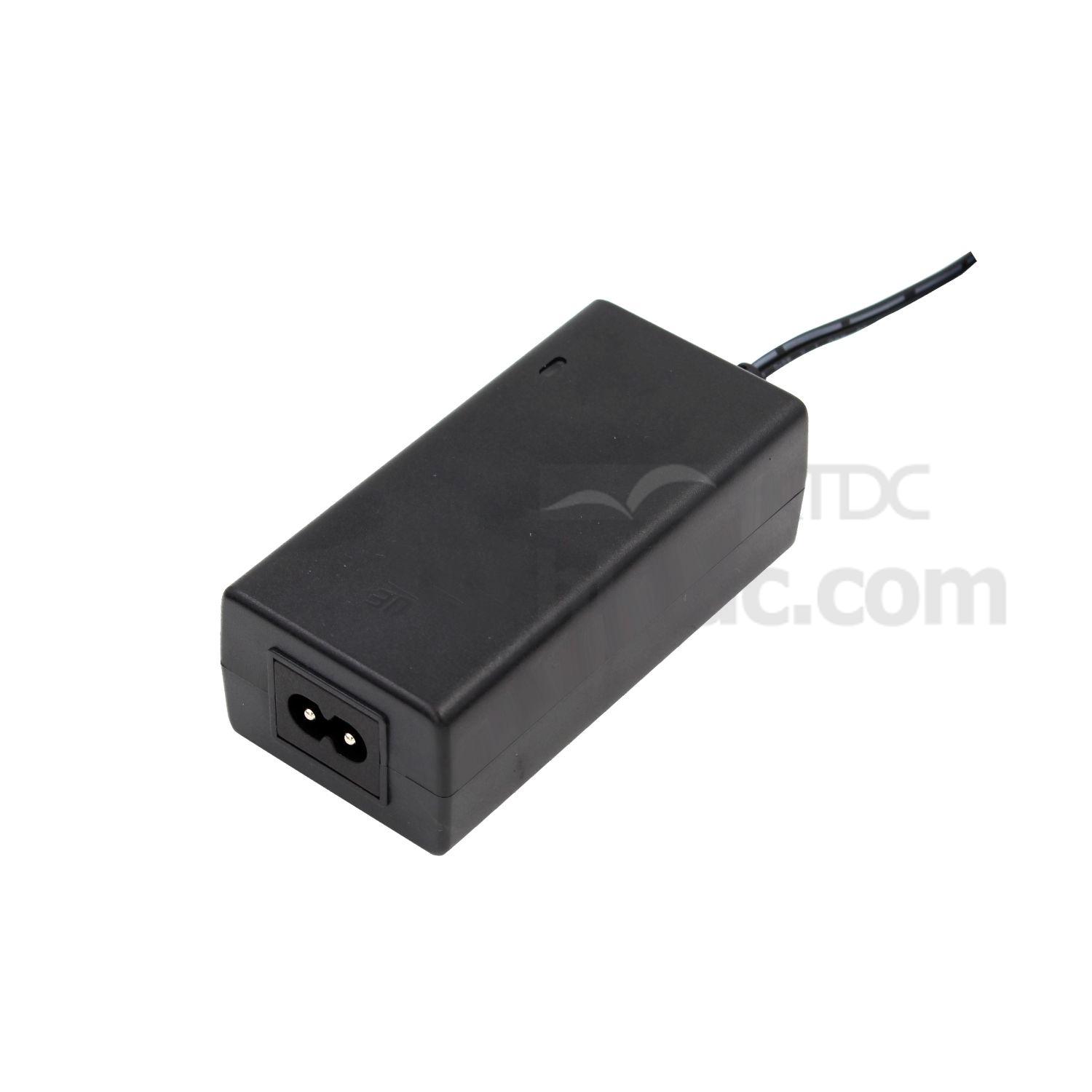

36W Medical Power Adapter Desktop
產品型號:
UES36-SPA
品牌名稱:
FUHUA
顏色:
Black
尺寸:
102(L)x50(W)x33.5(H)mm
港口:
FOB Hong Kong
最低訂購數量:
1,000 piece(s)
是否有包裝:
有
是否可訂造:
是
輸出電壓:
9.0-36.0V
輸入電壓:
90 - 264VAC
輸出頻率:
47-63Hz
輸出功率:
36W
輸出電流:
0.01-4.0A
輸出類型:
單
原產地:
中國內地
描述
聯絡供應商
描述
Features:
Electrical specifications:
General:
Safety approval:
- Wide range of AC input voltage 90 - 264V AC
- Suitable for medical equipment up to class BF
- 9V to 36V outputs, up to 36W
- Protection against: short circuit, over voltage, overload protection
- Medical safety standard, meets Energy Star VI CoC V5 Tier 2 (2016)
- AC inlet C8
Electrical specifications:
- Input voltage range: 100-264VAC
- Frequency range: 47-63Hz
- Input current: 0.5A at 90VAC
- Standby power: 0.075W
- Touch leakage current: Class I & Class II ≤50μA at 264VAC
- MTBF: 100,000 hours at maximum load levels and an ambient temperature of 25°C (in correspondence with MIL-HDBK-217)
- Environmental parameter:
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 60°C
- Operating humidity: 10% to 90% RH, non-condensing
- Storage humidity: 5% to 90% RH
- Operating altitude: 5,000m
General:
- Dimensions: 102 x 50 x 33.5mm
- Weight: 230g
- Isolation: 4,000VDC Input to Output
Safety approval:
- cULus (ITE UL60950-1 & medical ES60601-1), TUV-GS (ITE EN60950-1 EN62368-1 & medical EN60601-1), CB (ITE IEC60950-1 IEC62368-1 & medical IEC60601-1), RCM(ITE 60950.1), PSE(ITE J60950-1 For Class II only),CE, CCC (ITE GB4943)
- Applications: medical equipment/ITE devices
