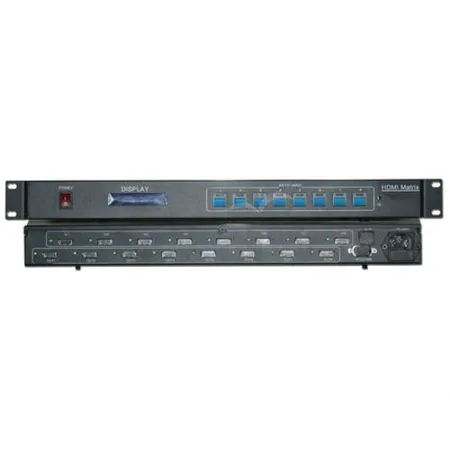

3D HDMI Matrix 8 x 8
產品型號:
AM-M8
品牌名稱:
Amtune
顏色:
Black
港口:
Shenzhen
付款方式:
T/T, L/C
最低訂購數量:
10 set(s)
描述
聯絡供應商
描述
- HDMI input & output compatible HDMI1.3.
- ≤8 of inputs HDMI.
- ≤8 of outputs HDMI.
- HDMI pixel rates clock frequency beyond 165Mpix/second.
- TMDS output clock up to 250MHz.
- Supports 24, 30 & 36‐bit pixel video modes.
- Supports 4:4:4 and 4:2:2 data input formats.
- Output jitter (single channel input only) (peak-to-peak) <36ps.
- Crosstalk jitter with 1 channel (peak-to-peak) <37.2ps.
- Output return loss (40MHz to 2.5GHz): <15dB.
- Input return loss (40MHz to 2.5GHz): <15dB.
- Single signal bandwidth: ＜3.0GHz.
- HDMI Interface type: A 19-pin HDMI Interface.
- HDMI input line length: ≤10 meter.
- HDMI output cable length: ≤10 meter.
- RS232 control line length: ≤15 meter.
- Infrared control distance: ≤5 meter.
- Power consumption: <60W.
- Humidity: <95% RH.
- Operating temperature: 0℃-45℃.
- MTBF: >40000 hours.
- Communication Interface: RS-232, 9600bps, 8, n, 1.
- Dimensions: 483 (width) x 300 (deep) x 45 (high) mm (1U).
- Machine weight: 5kg.
- Power input: AC 220V/50Hz ± 10%.
