3MP AR0331 WDR H.264Camera Module

美元 $26.60 - 美元 $30.40

美元 $28.00 - 美元 $32.00

生產所需時間:

5 日

運送方式:

express delivery

Model Number:

HAMPO-003-0404

Special Features:

Face Recognition

Resolution:

2048 x 1536

Compression Format:

H.264/MJPG/YUV

Focusing:

Fixed focus

Sensor:

CMOS, 1/3" AR0331

Function:

Wide Angle

Customized support:

OEM, ODM

Frame Rate:

30fps

PCB Size:

38mm*38mm&32mm*32mm

FOV:

91.2°

描述

聯絡供應商

Product Description

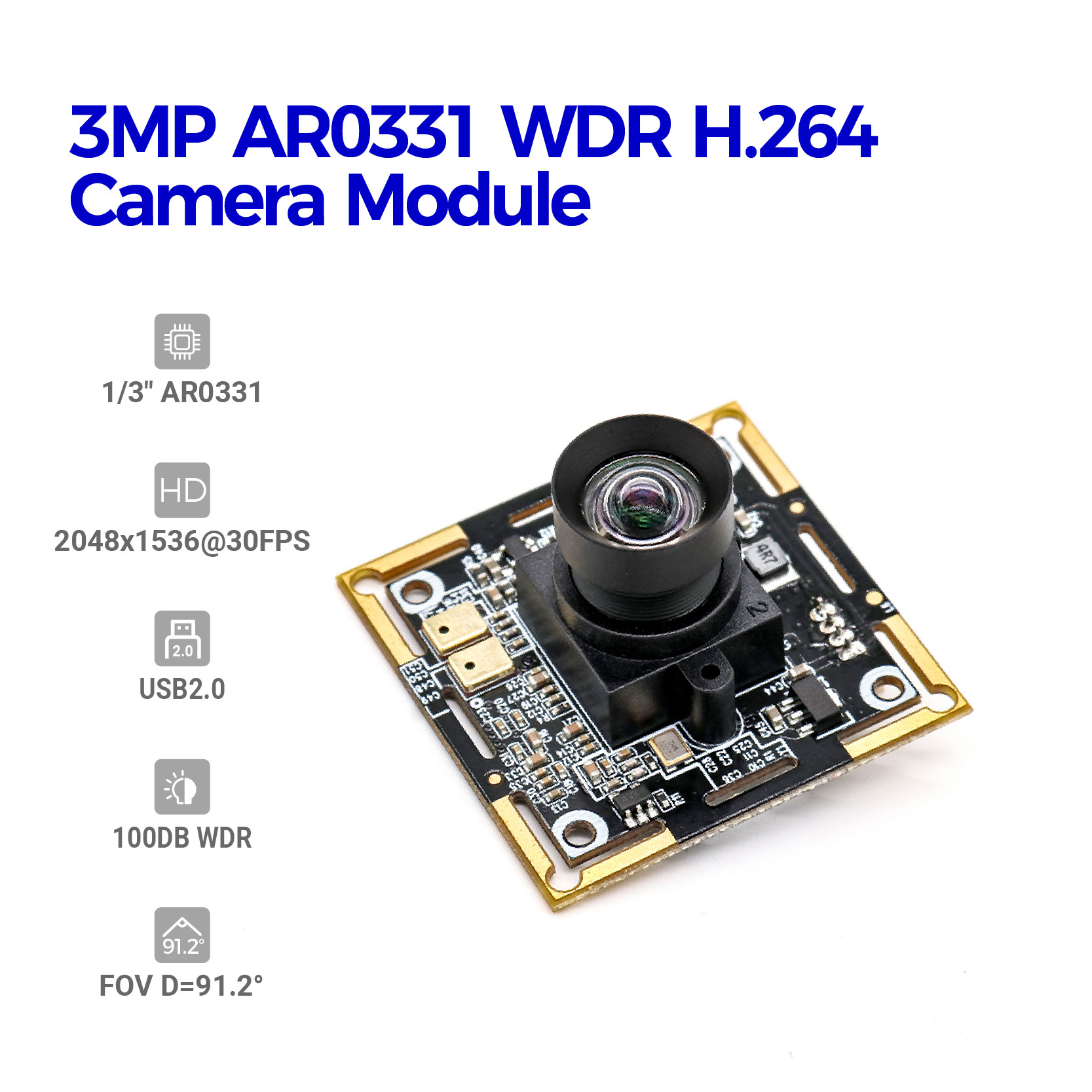

HAMPO-003-0404 camera module has the advantages of 3 million full HD pixel, H.264 high-speed output, clear backlight shooting etc. The 1/3 "AR0331 CMOS color sensor supports 2048x1536@30fps for high quality picture and video shooting.

The HAMPO-003-0404  camera module has an 91.2 degree diagonal wide angle lens that can detect a wide range of objects. What's more, it has a wide dynamic range up to 110DB and can take sharp photos and videos in a backlight environment. Widely used in various surveillance cameras, video doorbell, cat eye camera etc.

Key Features

3MP Full High Definition

The HAMPO-003-0404 camera module adopts 1/3 "AR0331 CMOS color sensor, which has 3MP high definition and can shoot high-quality pictures and videos stably.

WDR Backlight Shooting&Super Clear

The HAMPO-003-0404  camera module has a wide dynamic range up to 110DB,  which can shoot high-definition pictures and images in a backlight environment.

Wide Angle Distortionlsee Lens

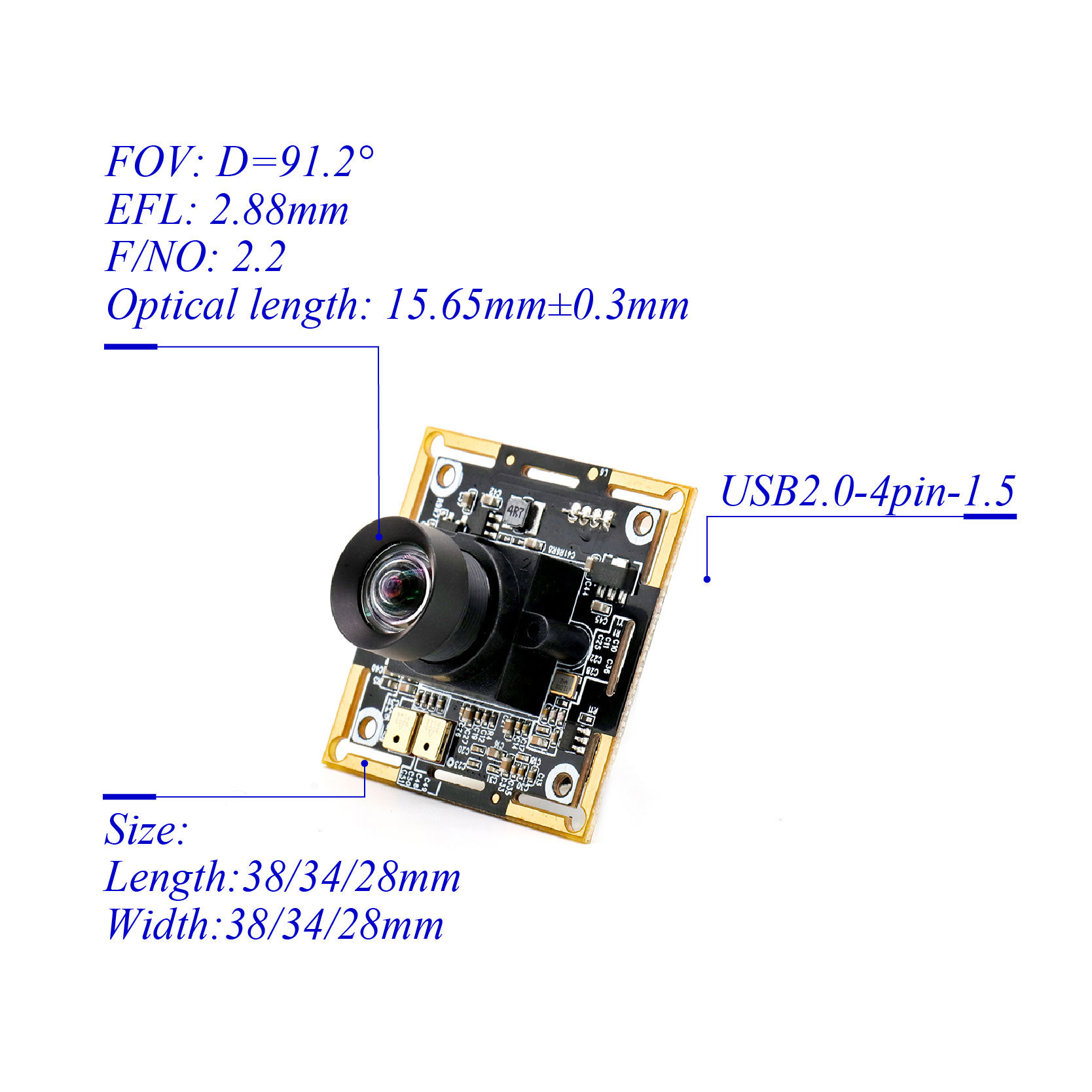

The HAMPO-003-0404  camera module has a 91.2 degree diagonal wide angle lens, which can record things in a wide range and is the ideal choice for monitoring equipment.

USB2.0 MJPEG/YUY2/H.264 Output

The module supports H.264/MJPG/YUV output, can achieve high-speed picture and video transmission stably, plug and play, easy to use.

Specification

Model NO.	HAMPO-003-0404
Sensor Size	1/3 "AR0331
Max Resolution	2048x1536
Wide Dynamic Range	110dB
Output Format	H.264/MJPG/YUV
Working Current	Max500mA
Ttl	22mm
Origin	China
Feature	Mini Size
Remote Control	Without Remote Control
Pixel Size	2.2μm*2.2μm
Frame Rate	30fps

Applications

Machinery equipment

All-in-one machine

Robot

Document scanner

Industrial machine

DroneMedical auxiliary equipment
Security camera
Face recognition
ATM

Company Profile

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products.

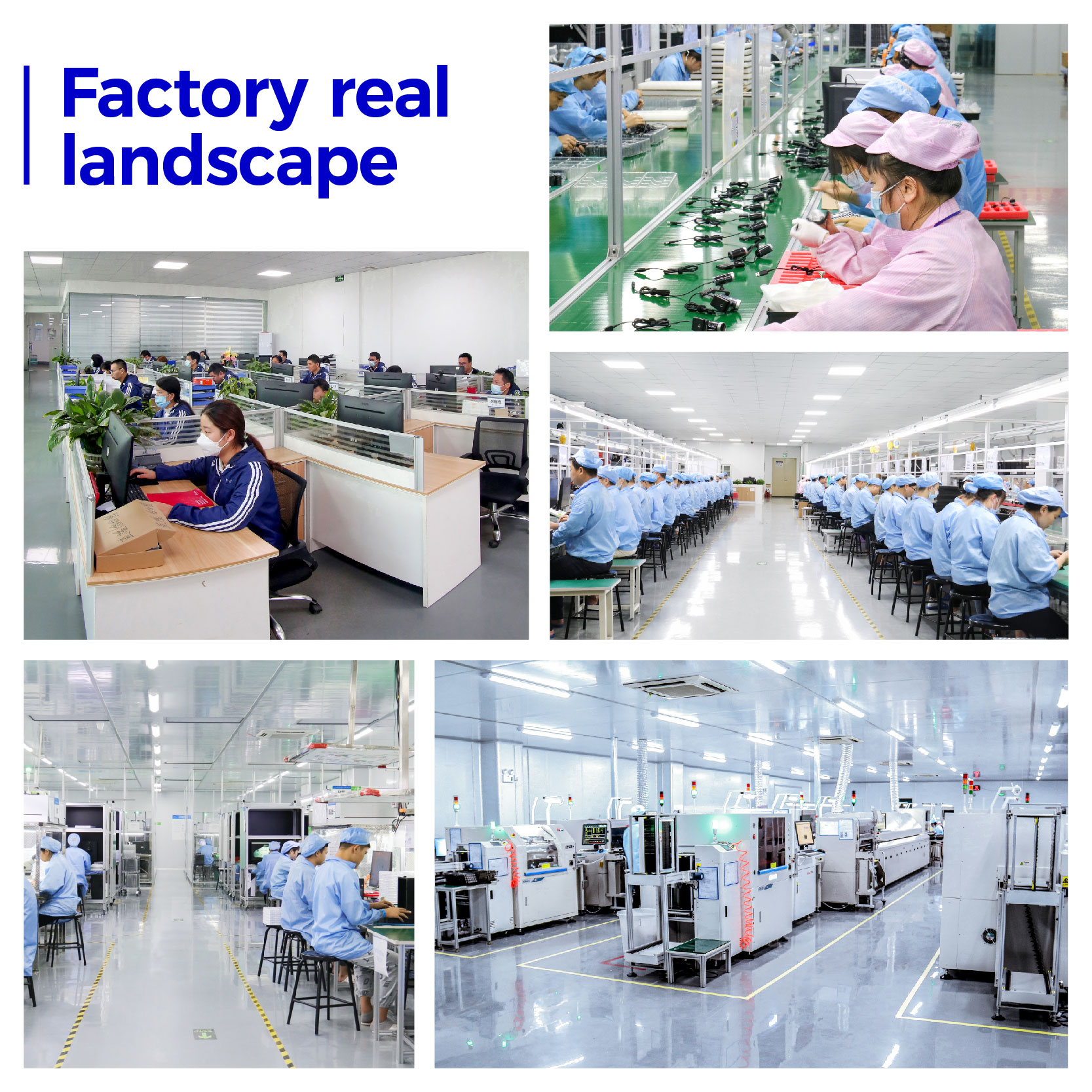

Hampo owned two buildings(Building58 and building 26) as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
