Product Overview

Direct Replacement

• Easy to install in new or retrofit installations
• Same cutting hole size as traditional fitting
• Fitting complete with flex and plug attached

Quality Finishing

• Plastic casing with embedded aluminium heatsink
• Zero glass, mercury, toxic material
• Choice of rums - PC (white glossy/black glossy), Stainless Steel (mirror/spin brushed)

Total Performance

• High efficiency and uniform illumination
• No excessive heat output from LED
• Up to 50% savings in energy
• Power factor >0.9
• Dimmable – supported by leading/trailing edge phase cutting (triac) dimmers

Applications

• Indoor commercial and residential areas, including lobbies, corridors, offices, meeting rooms etc

Specifications

• Model No.: LDR412(Round Shape) / LDS412 (Square Shape)
• Wattage: 11W
• Input:220-240V~, 50-60Hz
• Lumen: 850lm
• CRI: 85
• Colour Temp.: warm white/cool white/daylight
• Beam Angle: 112˚
• IP Rating: IP44
• Material: Plastic casing with embedded aluminium heatsink
• Diffuser: PMMA
• Lifespan: 35,000 hours

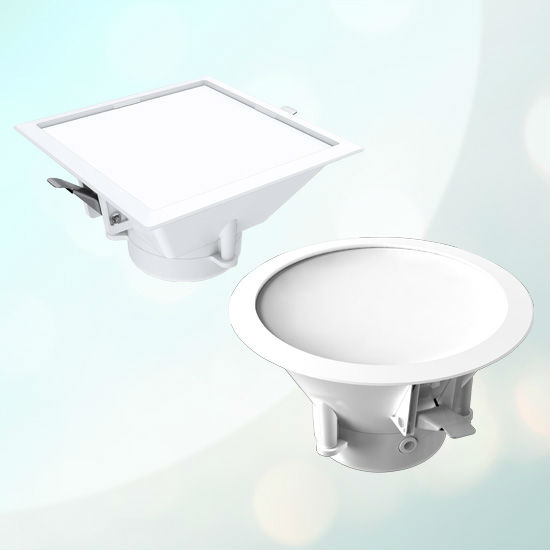

• LDR412(Round Shape)
         - Dimension: ø122 x 69(H)mm
         - Cut-out: ø110-115mm
• LDS412 (Square Shape)
         - Dimension: 122(L) x 122(W) x 68(H)mm
         - Cut-out: 112 x 112mm
• Replacement: 18W PLC 4-inch Downlight

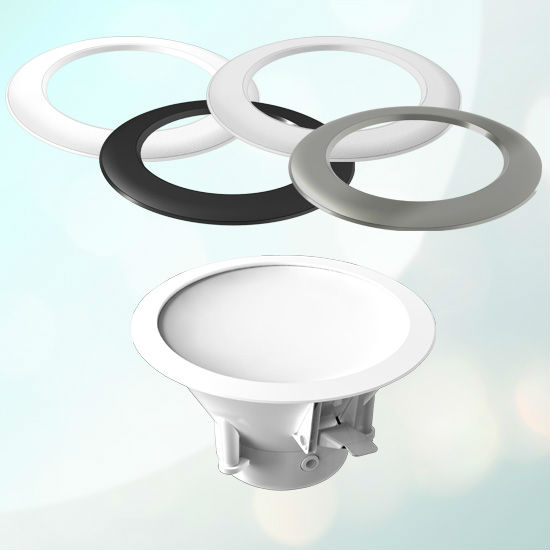

LED Downlight Rim (Round Shape)
LDR4R
Size: ø139 x 4(H)mm
Colour: white/black/mirror/spin brushed

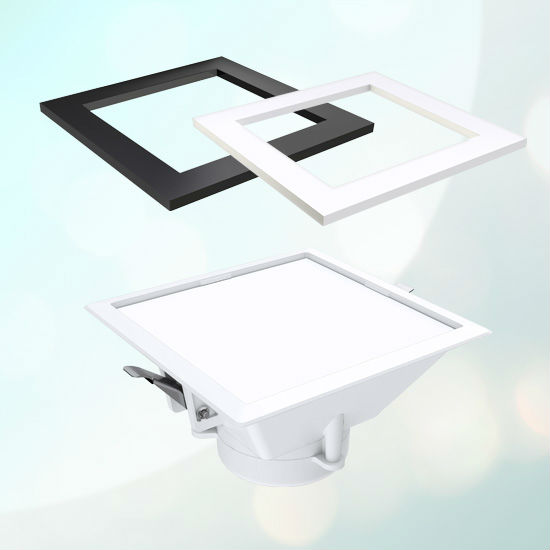

LED Downlight Rim (Square Shape)
LDS4R
Size: 126(L) x 126(W) x 4(H)mm
Colour: white/black
