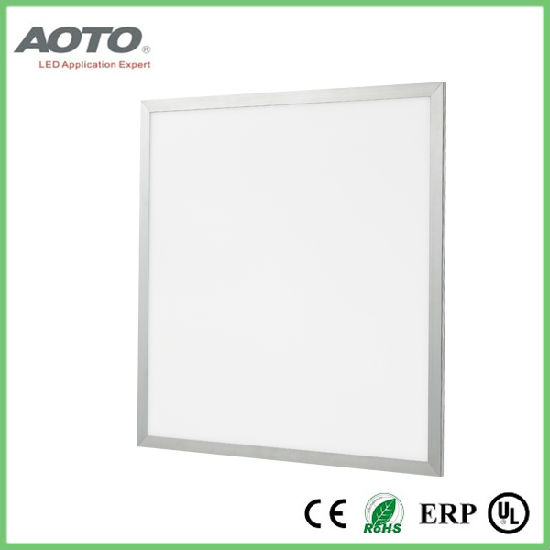

Edge-lit LED Panel light 600*600mm

Characters:
★  Ultra-thin, the thickness is 13mm, edge-lighting.
★  Optimum light uniformity and high color homogeneity
★  LED Source: high brigntness SMD 2835
★  Luminous efficiency: 85lm/W
★  Beam angle: 120dg
★   Lifespan: 50000hrs
★   Installation: Embeded, Suspended, Mounted.
★   Standards: CE, RoHS approved, UL/ DLC/ FCC are in applying.
★   Heat dissipation: Aluminum PCB and aluminum housing ensure     excellent heat dissipation.
★   Optional dimming: Infrared,0-10v,DALI.

Application:
1. Commercial lighting: high-class stores, shopping malls, hotels, restaurants, airport.
2. Office lighting: Conference, Factories, offices.
3. Institution Buildings: schools,hospitals, pharmacy.

Item No. AT-SPL-S0606S3-040
Electrical Paremeters :
Power 40W
 Input Voltage  AC100-240V (50/60Hz)
LED style 192 pcs SMD 2835
output current 900mA
output voltage 42V
Power Factor ﹥0.9
Opticall Paremeters:
  Luminous output  3200lm@3000K, 3400lm@4000K, 3400lm@6000K
Color Temp (CCT)  3000K/4000K/6000K
Color Rendering   ﹥80
Beam Angle  120dg
Uniformity  ﹥90%
Physical Parameter :
Material  Aluminium+（Optical）PMMA
Lighting method  Edge-lit
Power supply  External driver (included)
Operation Temperature  -20°C ~ +45°C
Storage Temperature  -25°C ~ +55°C
Protect Level  IP20
Certificate  CE, RoHS
