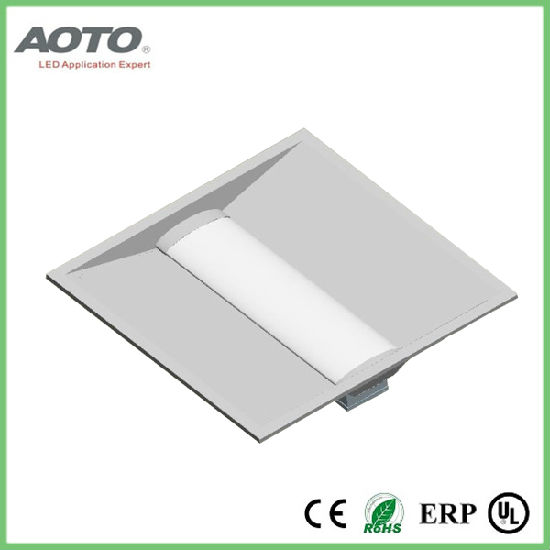

LED Troffer 600*600mm

Characters:
★ The thickness is 70mm, back-lighting.
★  Optimum light uniformity and high color homogeneity
★  LED Source: high brigntness SMD 2835
★  Luminous efficiency: 100lm/W
★  Beam angle: 120dg
★   Lifespan: 50000hrs
★   Installation: Embeded, Suspended
★   Standards: CE, RoHS approved
★   Heat dissipation: Aluminum PCB ensure excellent heat dissipation.
★   Optional dimming: Infrared,0-10v,DALI.

Application:
1. Commercial lighting: high-class stores, shopping malls, hotels, restaurants, airport.
2. Office lighting: Conference, Factories, offices.
3. Institution Buildings: schools,hospitals, pharmacy.

Item No. AT-DPL-S0606S5-040
Electrical Paremeters:
  Power  40W
 Input Voltage   AC100-240V (50/60Hz)
LED style  432pcs SMD 2835
output current  1000mA
output voltage  36V
Power Factor  ﹥0.9
Opticall Paremeters  :
Luminous output  3600lm@3000K, 4000lm@4000K, 4000lm@6000K
Color Temp (CCT)  3000K/4000K/6000K
Color Rendering   ﹥80
Beam Angle  120dg
Uniformity  ﹥90%
Physical Parameter:
  Material  Iron +（Optical）PC
Lighting method  Back-lit
Power supply  External driver (included)
Operation Temperature  -20°C ~ +45°C
Storage Temperature  -25°C ~ +55°C
Protect Level  IP20
Certificate  CE, RoHS
