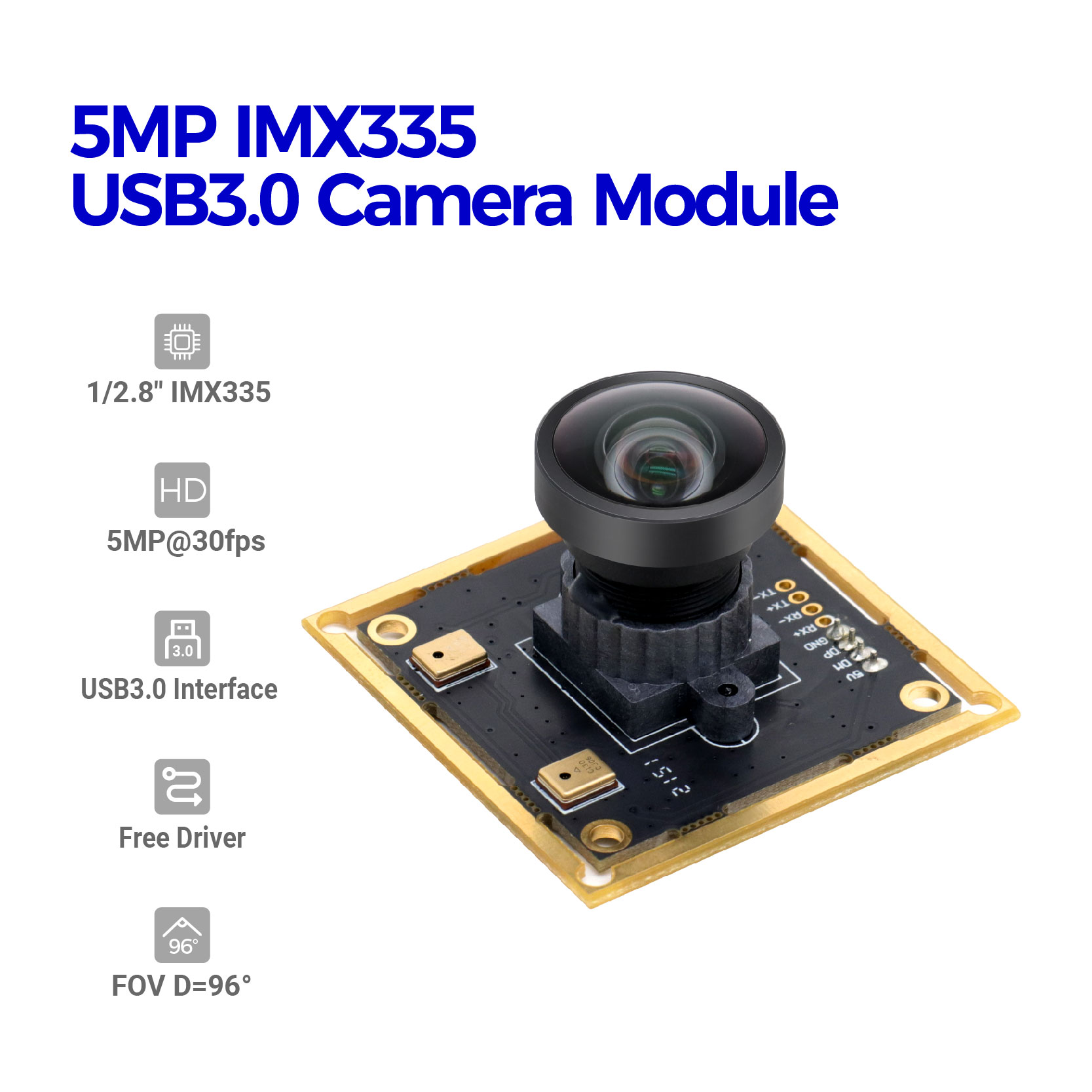

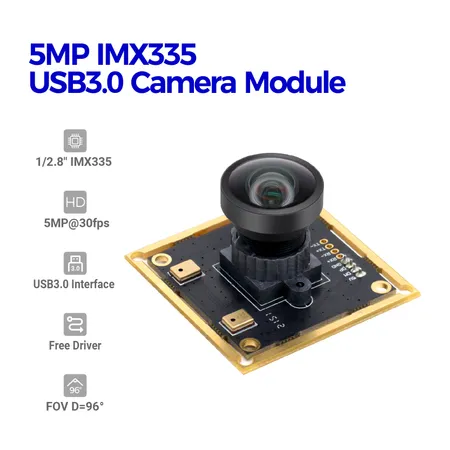

5MP IMX335 CMOS USB3.0 Camera Module
美元 $42.00 - 美元 $45.00
生產所需時間:
7 日
運送方式:
FOB SZ
型號編號:
03-1590
尺寸:
38mm*38mm
Sensor:
1/2.8" IMX335
FOV:
D=96°
Connector:
4pin 1.5mm
Resolution:
2592*1944
描述
聯絡供應商
描述

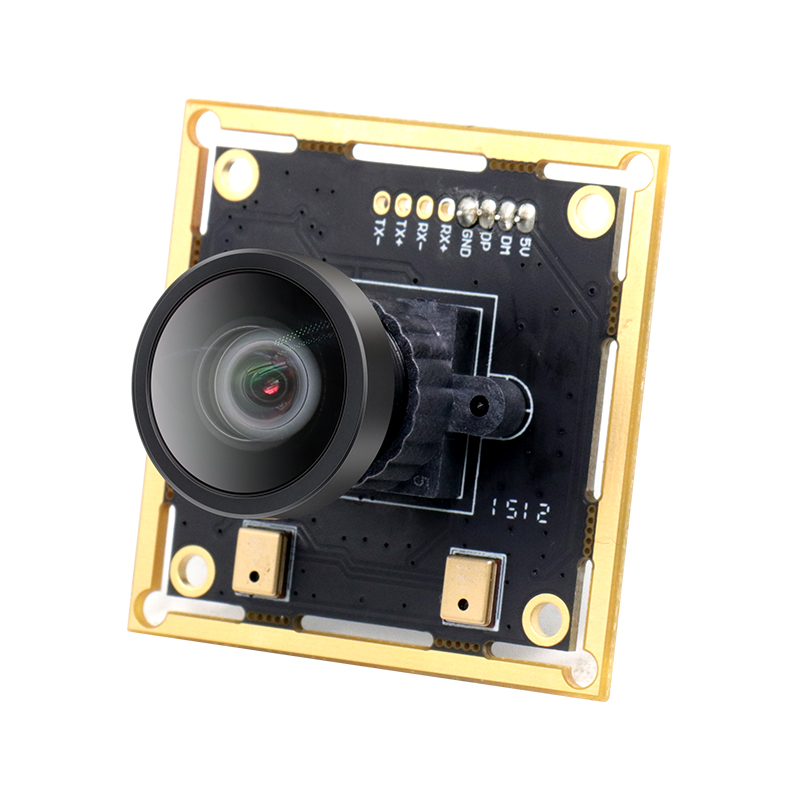

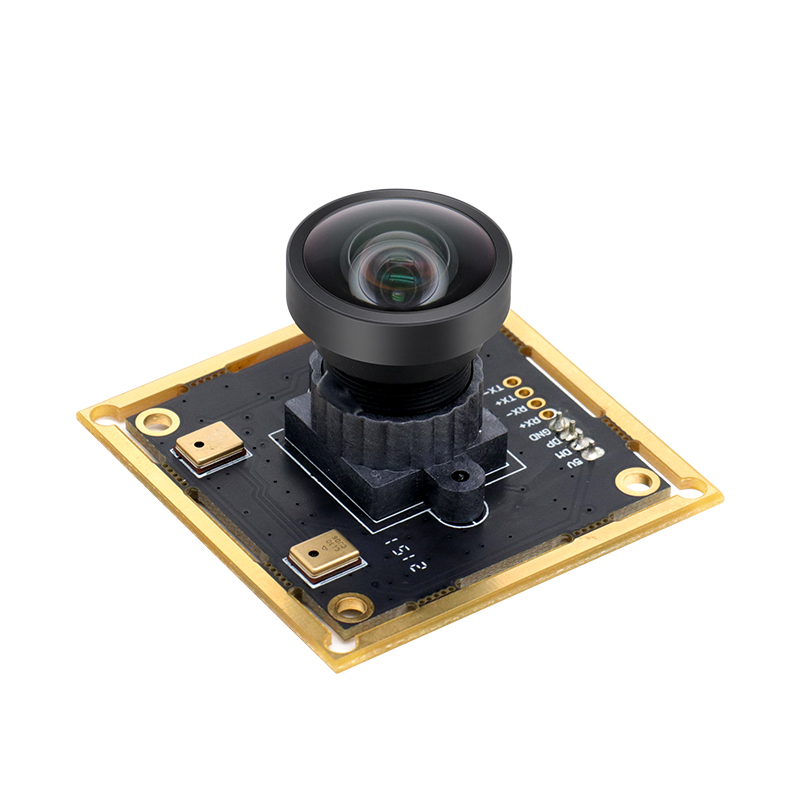

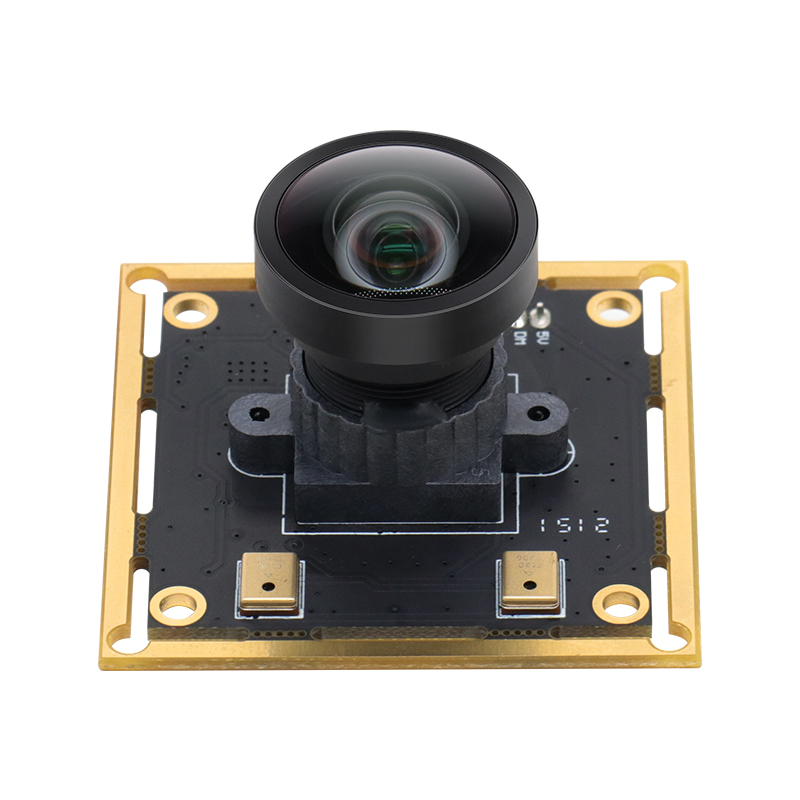

Product Description
Hampo 03-1590 is a 5MP high speed USB3.0 camera module supply crisp image and crystal clear video. Adopting high quality 1/2.8" Sony IMX335 Cmos image sensor,has a 6.52mm diagonal providing 5MP resolution with a 2592 * 1944 effective image size while keeping the power consumption low. This high resolution camera is also backward compatible with USB 2.0, although in USB 2.0, this camera supports fewer resolutions at lower frame rates.The Sony Starvis backside illuminated pixel technology used on this camera module allows for high sensitivity in the visible light and near infrared spectrums making it ideal for document scanner,car and ship control,face matching,OCR components,all-in-one machine, advertising machines, automatic vending machine,industrial&medical equipment,robot project,security and surveillance etc. applications.
Key Features
High Definition: The 2K 5MP webcam with 1/2.8 inch SONY IMX335 image sensor give you a high definition Image and video, offering a crystal clear image quality for video call,conference,etc..
High Frame Rates: MJPG:2592x1944@30fps; 2048x1536@20fps; 1920x1080@30fps; 1280x960@30fps; 1280x720@30fps; 1024x768@30fps;800x600@30fps; 640x480@30fps; 320x240@30fps; 160x120@30fps;
YUY2:2592x1944@2fps; 2048x1536@3fps; 1920x1080@3fps; 1280x960@8fps; 1280x720@8fps; 960x540@15fps; 800x600@20fps; 640x480@30fps;
High Speed USB 3.0：USB connecting port in this camera support high speed USB 3.0 data transmission.Faster and better experience than regular USB 2.0.
Dynamic Range: Features like a dynamic range up to 72dB, advanced HDR functions and digital overlap HDR further improve the image quality and contrast behavior allowing for more detailed image analysis.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Specification

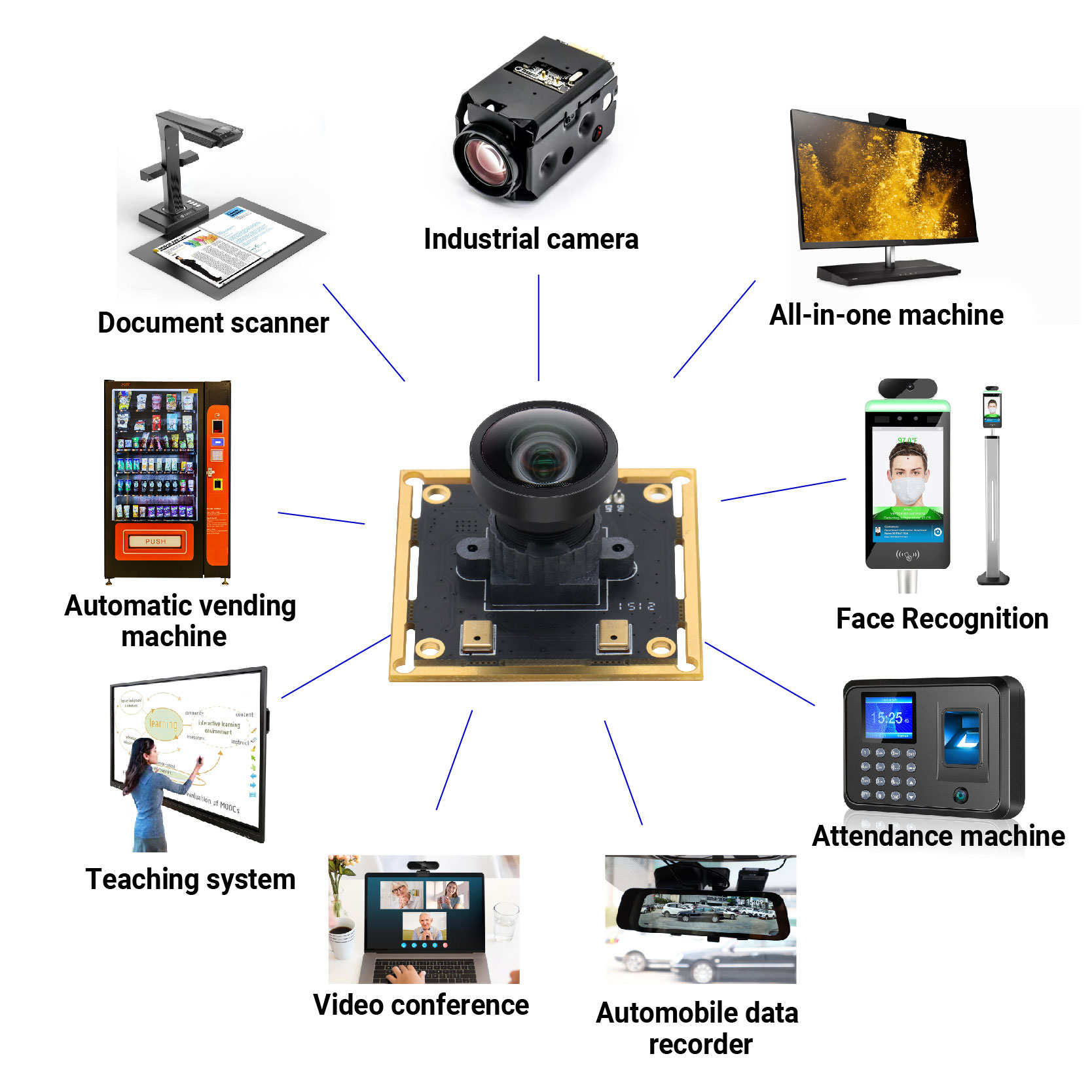

Applications
Iris recorganization
Gesture recognition machine vision
3D printer camera solutions
Video technology solutions
Industrial infrared imagers
Digital cameras
DV PDA/handheld devices
Smart
Security cameras
Car cameras
Embedded Systems solutions
Face recognition
