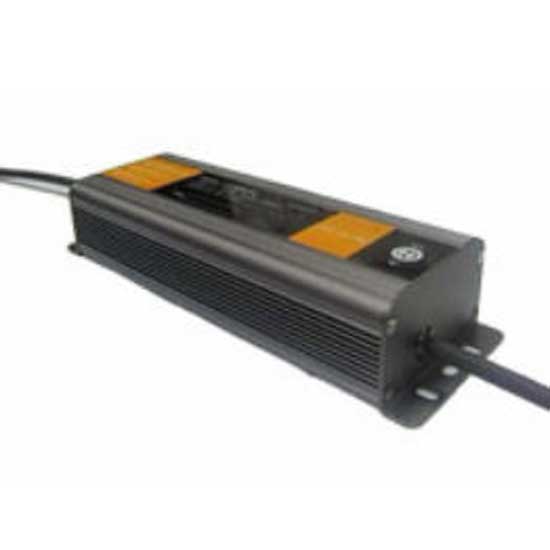

This is an LED driver with a waterproof casing to provide protection against rain and dust. It is great for driving LED lighting and moving sign applications up to a maximum of 60W. The safety is guaranteed by the built-in automatic short circuit shut-off and restart protection with overheating and overload protection.

• Output type: single output.
• Input voltage (V): 90-264VAC.
• Input current (A): 0.8A/115V AC, 0.4A/230V AC.
• Efficiency: 85% type.
• Power factor: ＞0.92.
• Output voltage (V): +48VDC.
• Output current (A): 1.25A.
• Rated power (W): 60W.
• Ripple/noise (mVp-p): 4.6Vp-p.
• Working temperature (℃): -30-70℃ (refer derating curve).
• Withstand voltage (VAC): I/P-0/P: 3.75KVAC, I/P-FG: 1 .88KVAC, 0/P-FG: 0.5KVAC.
• Safety standard: UL879, UL8750, TUV EN61347-1, EN61347-2-13, J61347-1, J61347-2-13, IP66 approved.
• EMC standard: compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61547, light industry level (surge 4KV), criteria A.
• Over voltage protection: 54-60V.
• Protection type: shut down O/P voltage, re-power on to recover.
• Over current protection: 95-110%, hiccup mode, recovers automatically after fault condition is removed.
• Short circuit protection: hiccup mode, recovers automatically after fault condition is removed.
• Over temperature protection: auto reboot MTBF: ≥ 523.4Khrs, MIL-HDBK-217F (25℃).
• Packing: 0.56kg.
• Universal AC input/full range.
• Protections: short circuit/over current/over voltage/over temperature.
• Output voltage and constant current level adjustable.
• Built-in active PFC function.
• IP66 design for indoor or outdoor installations.
• Cooling by free air convection.
• 100% full load burn-in test.
• 3 years warranty.
