7'' HD Reversing Camera Monitor System
產品型號:
DF-77404P4
品牌名稱:
VEISE
顏色:
Black
尺寸:
106(W) x 75(H) x 70.4(D) mm
港口:
Guangzhou
付款方式:
T/T; L/C in advance.
最低訂購數量:
1
認證:
CE, EEC, EMARK, FCC, ISO9001, ROHS
是否可訂造:
是
特色:
HD products
描述
聯絡供應商
描述

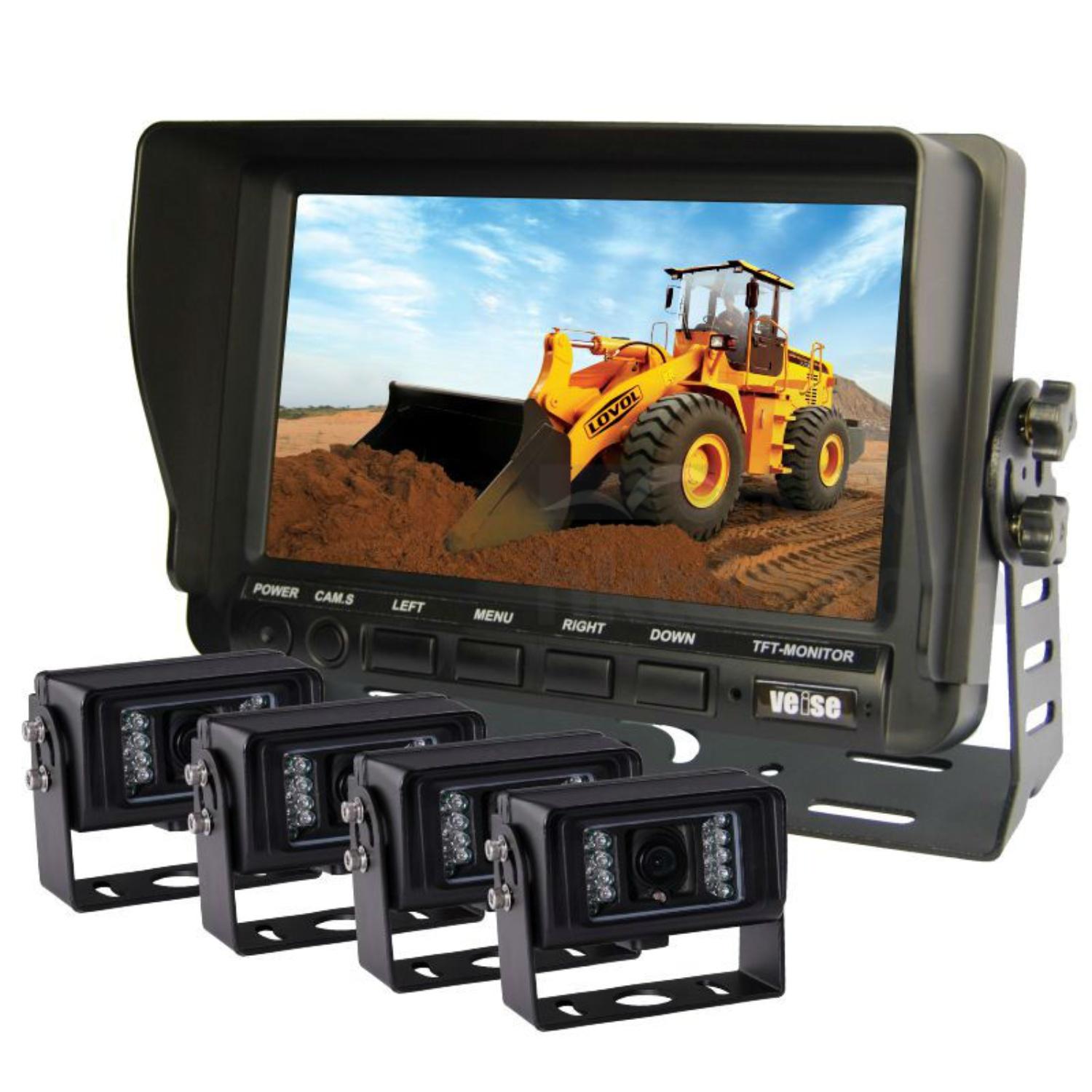

- HD Reversing Camera Monitor System
Asphalt Paver Reversing Camera Monitor System For Bulldozer Loader, Backhoe Backhoe Loader, Motor Grader, Road Roller, Machine Cold Milling Excavator
7"HD Monitor Support four-channel Camera Video Audio Inputs,OSD Menu Separately Set Each Camera Mirror/Normal image,Trigger Priority of Camera image Display,Reversing Image Delay Time 0-30"
Resolution 1024 * 600，600cd/m2 Brightness
DC14+87V(Td400mS) 5pulses Load Dump
720P HD Camera IP69K Waterproof and 10G Vibration fo, IR LED's for Picture Support in the Dark
System Free Operating Voltage DC11~32V - Aluminum Shell Waterproof IR 720P HD Camera(MODEL:DF-8275-720P)
Image Type: 1/3 Color Cmos
Image Dlarity:720P
Usable Illumination : 0Lux ( Built in 18pcs IR for Picture Support in the Dark)
Free viewing angle: 130°
Waterproof: IP69K
Shockproof: 10G
Video Output: HD TVI
Power supply:DC12V from Reversing Monitor
Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting)
Weight : 450g

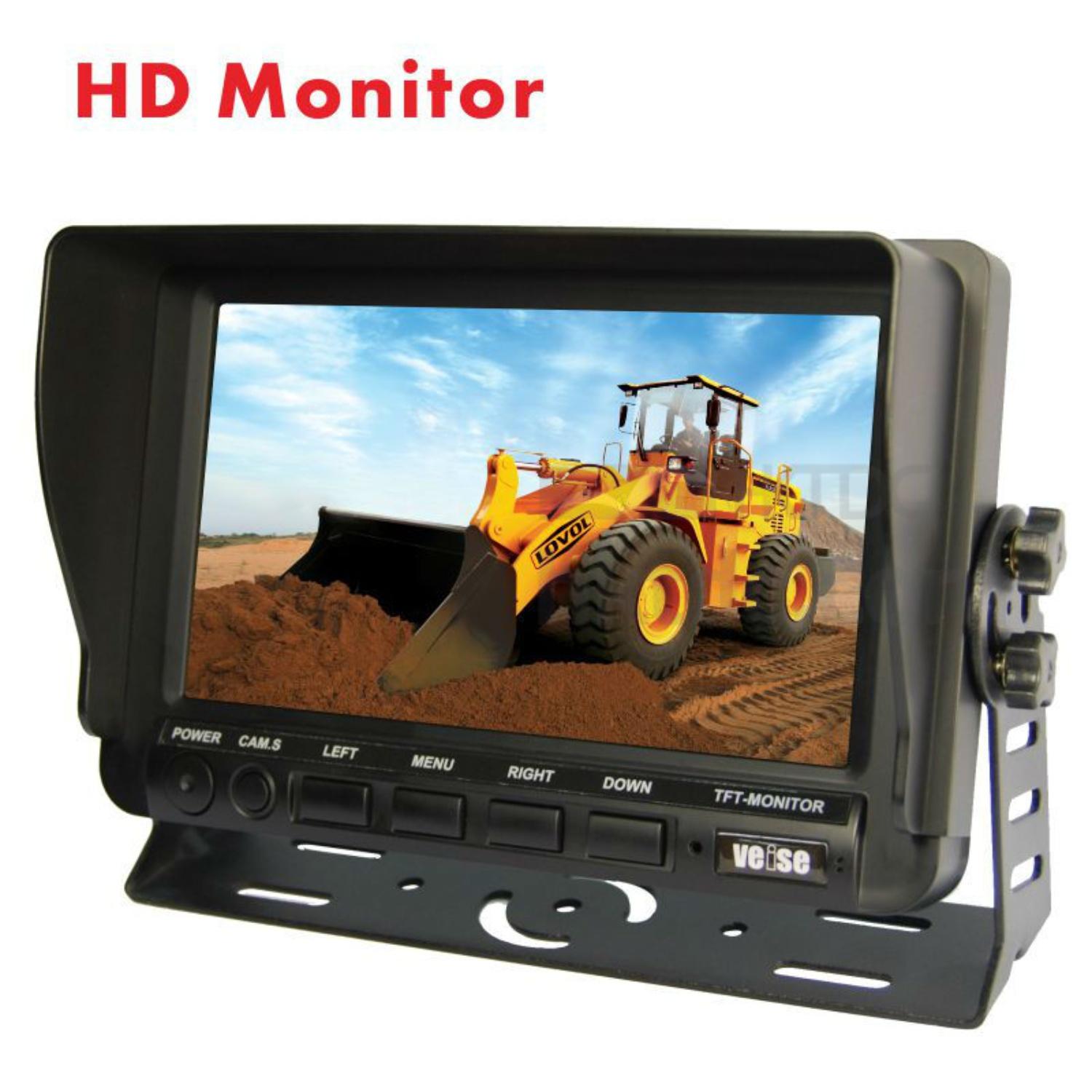

7 inches HD Monitor(Model:SP-774)
HD Monitor with Removable Sun Visor
OSD MENU Separately Set Each Camera Trigger Priority
OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30"
OSD MENU Separately Set Each Camera Mirror/Normal image
Manual and Automatic Switch Display Mode
Color System:PAL/NTSC (AUTO)
Display Resolution: 1024*600
Accepts up to 4 Cameras Video Inputs:HD TVI
Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65
Contrast ratio: 500:1
Back-light : Single LED 600cd/m2 Brightness
Operating temperature: -20℃ to +70℃
Storage temperature: -30℃ to +80℃
Load Dump: DC14+67V(Td400mS) 5pulses
Free Operating Voltage DC11-32V
External dimensions:L*W*T(216X180X85)mm(without mounting)
Weight Approx: 600g
Product Accessories
U- Support Bracket、Angle Adjustment Screw、Removable Sun Visor、Electrical Connecting Cable、15m cable、 Auto cigarette lighter、User's Manual
