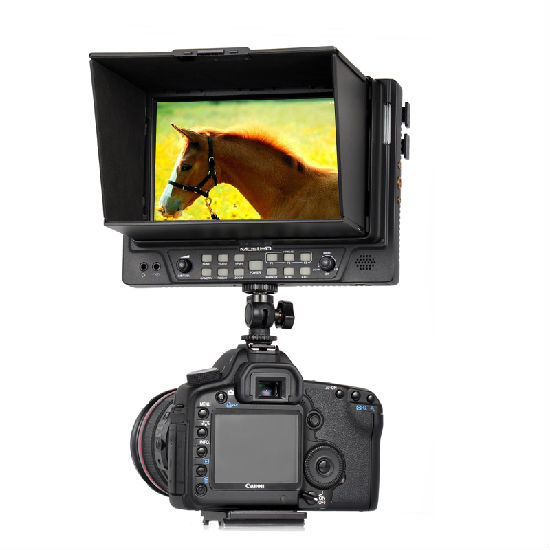

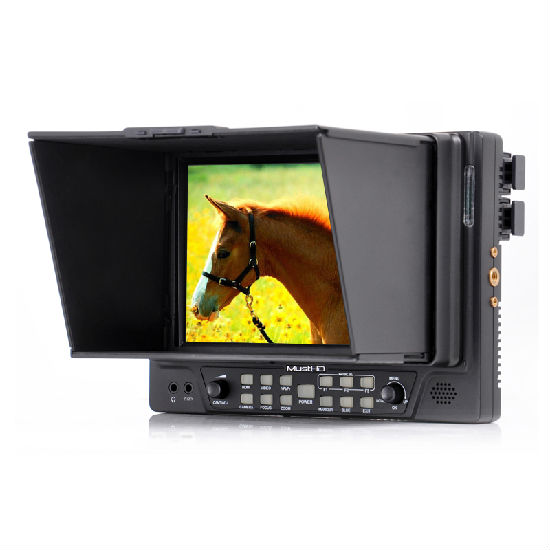

What makes the MustHD 7-inch on-camera video-assist field monitor for DSLR better than other similar products in the market are largely from its excellent menu design; custom preset button, knob-control mechanism, unique sun-hood and battery plate. Users can scroll up and down easily to view the menu confirmation, customize regularly-used function to 6 buttons. Users can install/uninstall, open/close the sun-hood easily, so are the battery plate
Major features:
7" LCD, 1280 x 800
Unique Sun-Hood
HDMI Head Locker
Camera Button
Knob Control
Tally
Custom Preset Button
Battery Plate (easy to lock)
Focus Assist
Fit Marker
H/V Delay
Aspect
Over-scan
Exposure
False Color
Black and White
Blue only
Pixel to Pixel
Zoom
Freeze
Specifications:
LCD Size: 7 inches
Resolution: 1280 x 800
Pixel Pitch: 0.039 (H) x 0.0.117 (W) mm
Color Depth: 16.7M (8bit)
Viewing Angle: H: 178 degrees/V: 178 degrees
Luminance of white: 350 cd/㎡ (Center)
Contrast Ratio: 800:1
Display Area: 149.76 (H) x 93.60 (V) mm
Input Connector:
5 x BNC Analog Input
1x HDMI HDMI input
1x LAN (RJ45)
TALLY
Output:
5 x BNC Analog Output
1x HDMI HDMI Output
Input Signal:
Analog Video
Y Pb Pr
HDMI: 480i/480p/576i/576p/720p/1080i/1080p
Audio Out: Analog Stereo (phone jack)
Internal speaker: (Mixed Mono)
Power: DC 6-20V
Power Consumption (Approx): 10 Watts (typical)
Operating Temperature: 0℃ to 45℃ (32℉ to 113℉)
Storage Temperature: -20℃ to 60℃ (14℉ to 140℉)
Main Body Dimension (mm/inch): 197.5 x 143.6 x 50.6/7.78 x 75 x 1.99
Weight: 766g/1.69lbs
Box contents:
Field monitor with sun-hood (detachable)
AC adaptor
User manual
F Key Cable Control
Shoe mount adaptor
Screws (for fixing the battery plate more tightly)
