720P Mini USB Camera Module

美元 $8.55 - 美元 $12.35

美元 $9.00 - 美元 $13.00

生產所需時間:

5 日

運送方式:

express delivery

是否可訂造:

可以

型號編號:

HAMPO-003-0751

應用:

Win XP/Win7/Win8/Win10/Linux

Sensor Size:

CMOS, 1/4" JX-H62

Frame rate:

30fps

FOV:

160°

Function:

Low Power

Focusing:

Fixed Focus

Resolution:

1280*720

Size:

62*8mm

描述

聯絡供應商

Product Description

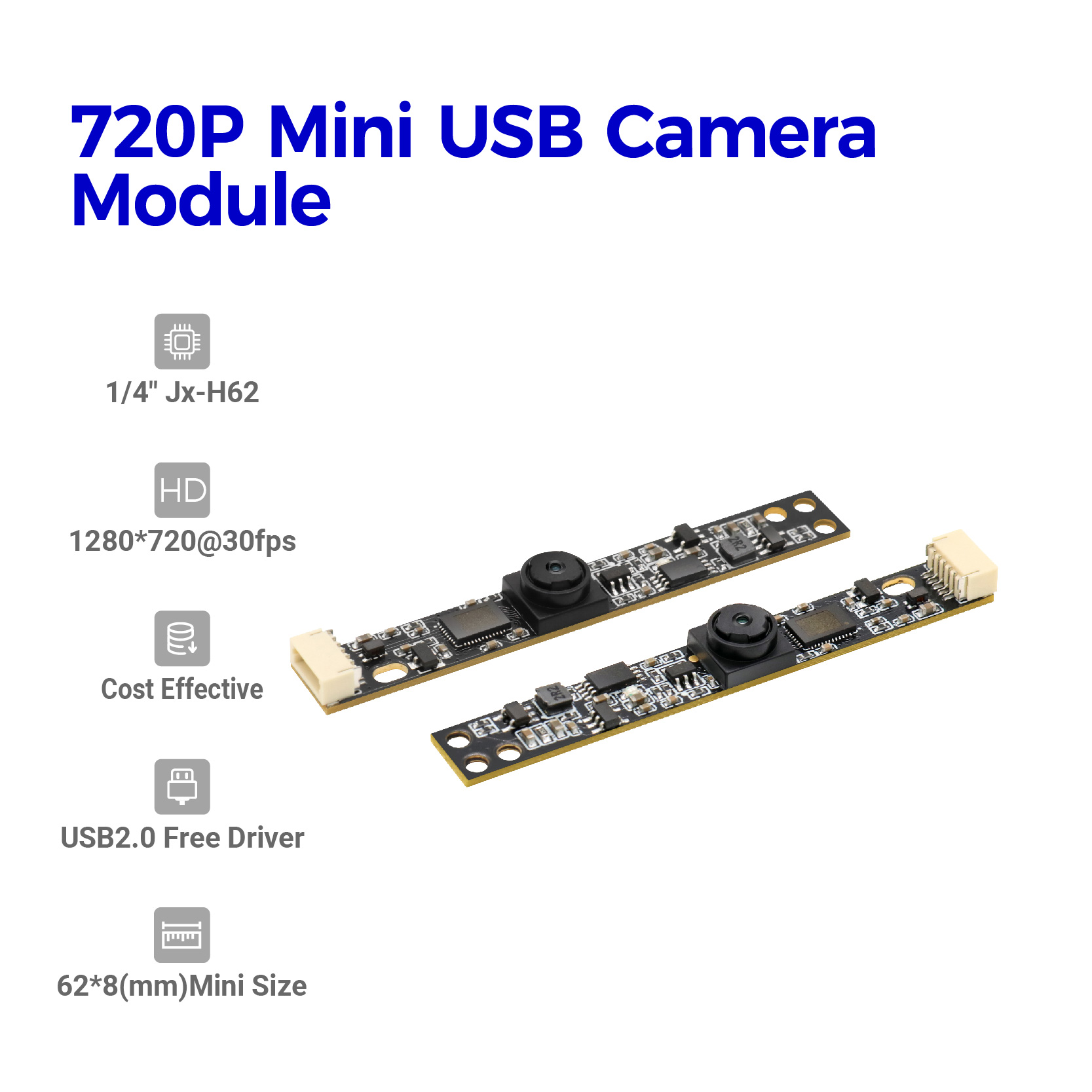

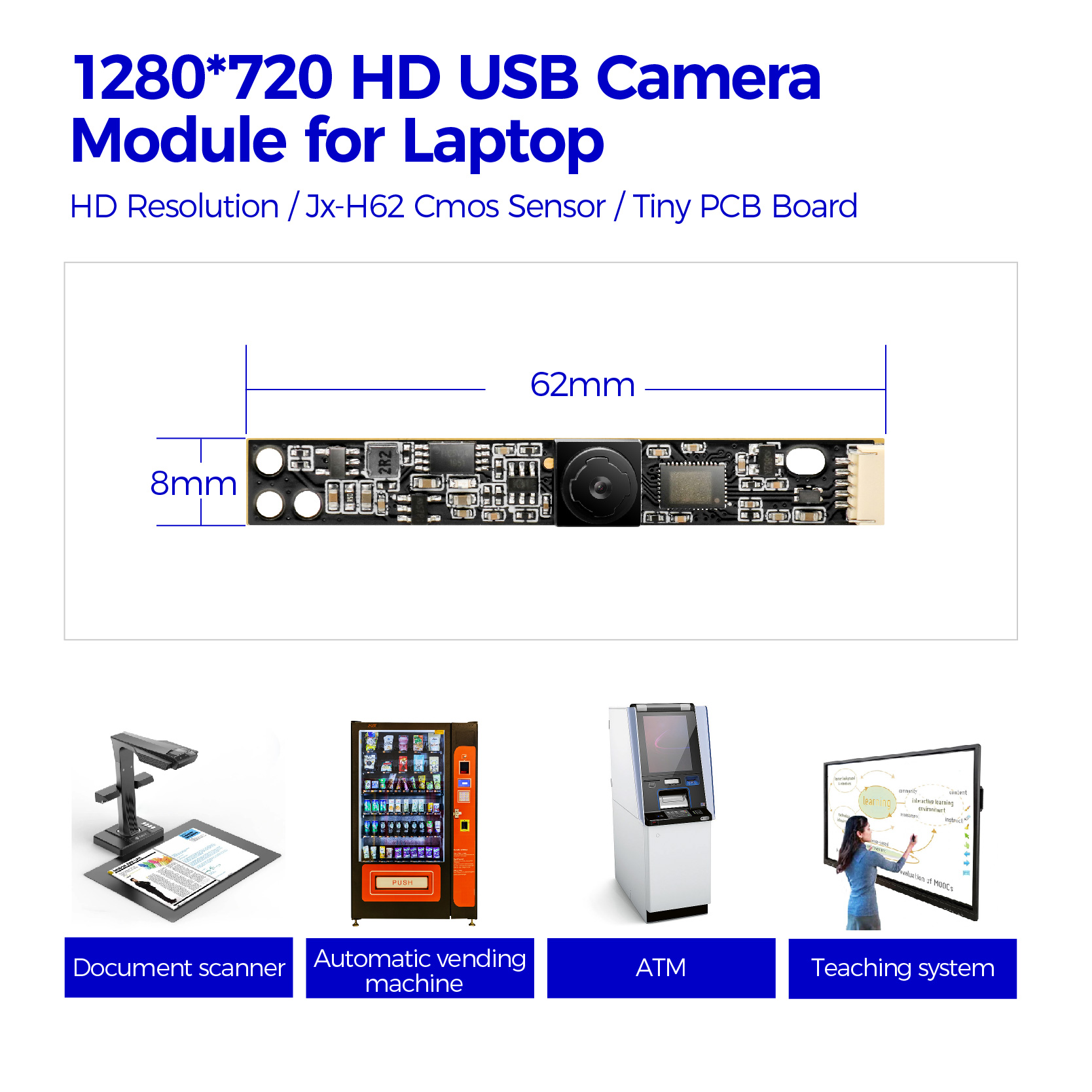

HAMPO-003-0751 is a mini camera module with 62*8mm specification,adopting 1/4" JX-H62 Cmos image sensor, the high frame rate is 30fps at 1280*720P.

The ultra tiny PCB size make it perfect for the embedded solution which require a narrow board such as the application in all-in-one machine, advertising machines, automatic vending machine,industrial&medical equipment,robot project,teaching system,automobile data recorder,endoscope,and laptop camera etc.  The FOV for default lens on this module is D=160°, H=120°, will different according to the choosing lens.

Key Features

Wide View of Angle: The 1megapixel camera module with a ultra wide view of angle, D=160°， H=120° .

Cost Efficient: This camera adopts the 1MP JXH62 Color COMS sensor, which cuts costs and gets decent image quality.

Frame Rates: MJPG 30fps@1280 x 720/640 x 480/320 x 240; YUY2 10fps@1280 x 720; 30fps@640 x 480/320 x 240.

Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

Specification

Camera
Model No.	HAMPO-003-0751
Max Resolution	1280*720P
Sensor	1/4" OV9281
Frame Rate	MJPG 30fps@1280 x 720/640 x 480/320 x 240; YUY2 10fps@1280 x 720; 30fps@640 x 480/320 x 240
Pixel Size	3.0μm*3.0μm
Output Format	YUY2/MJPG
Lens
Focus	Fixed focus
FOV	D=160° H=120°
Lens Mount	M12 * P0.5mm

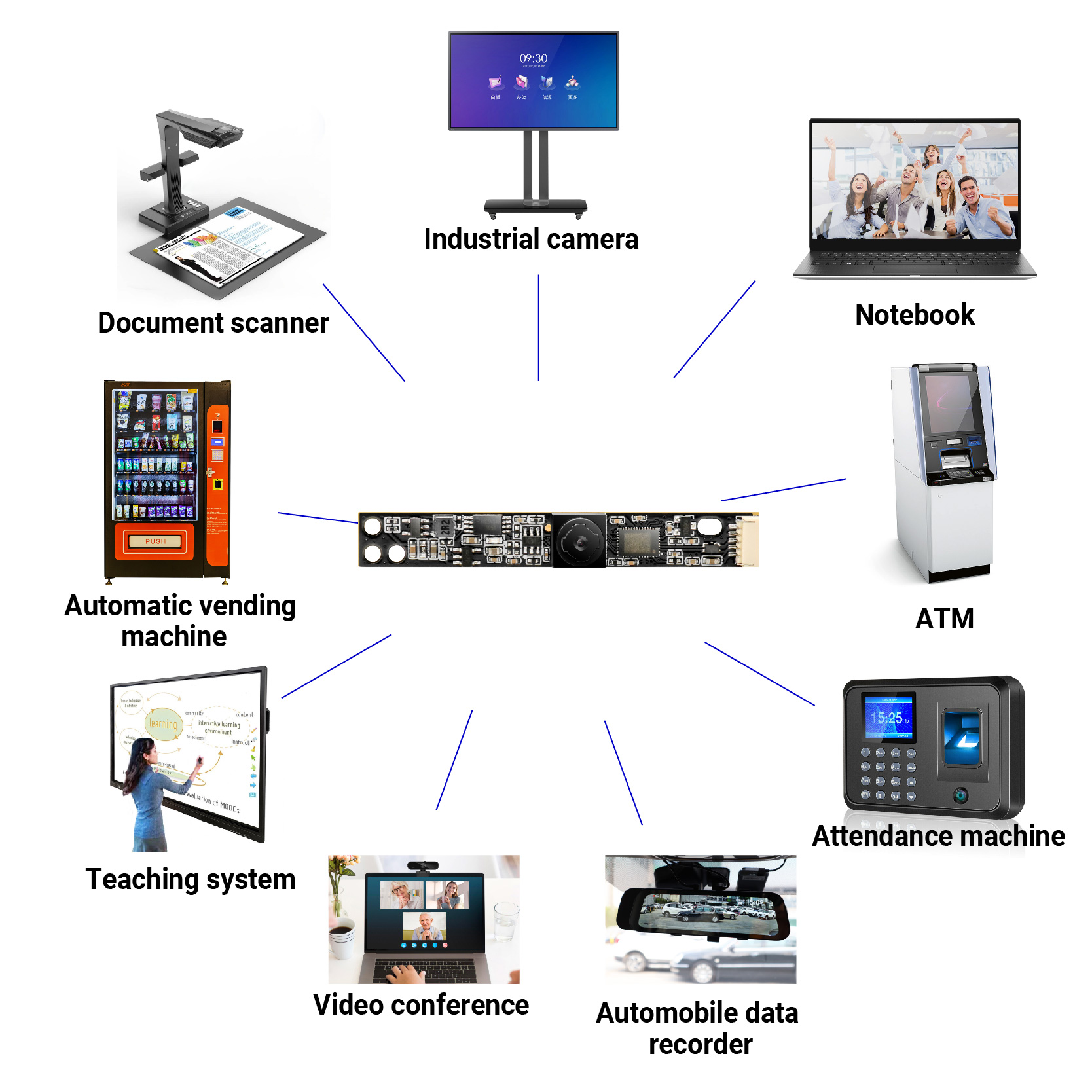

Applications

Laptop/Notebook
Robot
Advertisement machine
All-in one machine
Endoscope

Company Profile

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Hampo owned two buildings as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.

As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
