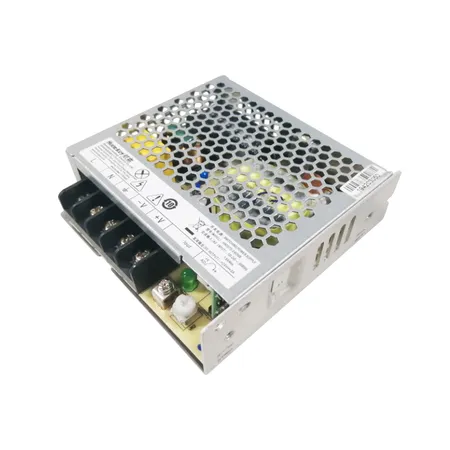

Model

HKI075-050NB

HKI075-120NB

HKI075-240NB

HKI075-480NB

Output

DV/DC

5V/14A

12V/6A

24V/3A

48V/0.75A

Voltage Regulation Range

4.5~5.5V

10.8~13.2V

21.6~26.4V

43.2~52.8V

Current Regulation Range

0~7A

0~6A

0~3A

0~0.75A

Regulation Precision

±1%

±1%

±1%

±1%

Ripple

<100mVp-p

<100mVp-p

<100mVp-p

<150mVp-p

Input

Lowest Efficiency

82%

84%

86%

86%

Voltage Range

90~264VAC；102~370VDC

Surge Current

Cold boot<45A/230VAC

Protections

OVP

115%-135%(Rated Voltage), auto restore

115%-135%(Rated Voltage), power off to restore

OCP

120%-180%(Rated Current), auto restore

OTP

To ensure all components will not exceed a certain temperature, auto restore

UVP

Input UVP activation point:<=60Vac, UVP restoration point:>=70Vac

SCP

To protect components without being damaged or burned, auto restore

Environment

Operating

-30~+70°C, 5~85﹪RH, no condensation (please refer to load-deflection curve)

Storage

-40~+85°C, 5~95﹪RH, no condensation

Vibration

10~500HZ, 5G, 10 minutes/cycle, 60 minutes for each X-, Y-, Z-direction

Safety & EMC

Safety Standards

GB4943, EN62368

EMC Standards

EN55032 Class B, GB9254 Class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3

Hi-Pot

I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC

Others

Dimensions

99*97*30mm

Packing

30pcs/9kg

Mechanical Specifications
