8-15W, 100-240Vac, Constant current LED Driver in small case
美元 $2.25 - 美元 $2.52
美元 $2.50 - 美元 $2.80
生產所需時間:
7-35 日
運送方式:
By sea, by air, by train, by courier
應用:
LED Luminaires
品牌:
SINOBASE
特性:
Wide range of voltage input 100-240Vac
材料:
Plastic case
光源:
發光二極管照明
電源類型:
交流电
尺寸:
56.5*35.5*23.7MM
型號編號:
SILA.....BG1
重量:
50.4g / 79.5g
Certificate:
CE, LVD, EMC, CB, SAA
Warranty:
5 years
圖案:
Yes
是否可訂造:
可以
描述
聯絡供應商
描述

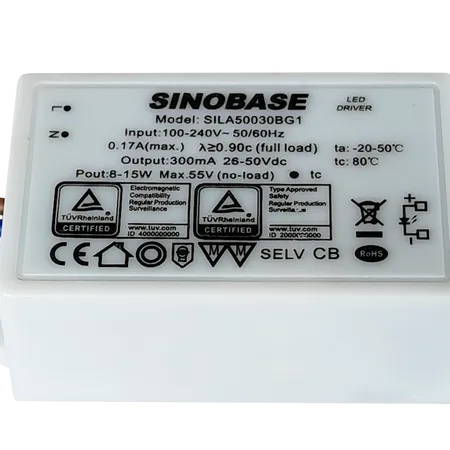

SinoBase small-sized water-proof LED driver with P_out 8-15W, U_input 100-240Vac
With broader input voltage and 50000hrs lifetime, optional for water-proof version
Features:
· Design in small size to fit your lamp；
· Easy for installation with cables at both ends；
· Constant current mode；
· Output SELV protection, short circiut, over current and over voltage protection；
· Extremely high precision output current；
· A wide range of input voltage 100-240Vac;
Specification：
| Power | Model | U_in(Vac) | U_out(Vdc) | Rated I_out (A) | Ta(℃) | Tc (℃) | Max power (W) | Size (L*W*H, mm) |
8-15W | SILA60025BG1 | 100-240V～50/60Hz | 32-60 | 0.25 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA50030BG1 | 100-240V～50/60Hz | 26-50 | 0.3 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA43035BG1 | 100-240V～50/60Hz | 22-43 | 0.35 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA38040BG1 | 100-240V～50/60Hz | 20-38 | 0.4 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA33045BG1 | 100-240V～50/60Hz | 17-33 | 0.45 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA30050BG1 | 100-240V～50/60Hz | 16-30 | 0.5 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA27055BG1 | 100-240V～50/60Hz | 14-27 | 0.55 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA25060BG1 | 100-240V～50/60Hz | 13-25 | 0.6 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA23065BG1 | 100-240V～50/60Hz | 12-23 | 0.65 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA22070BG1 | 100-240V～50/60Hz | 11-22 | 0.7 | -20-50 | 80 | Max.15 | 69*35*23.5 |
P.S.:
* The certified current step is 50mA, contact us for the specs outside of above tables.
* Optional for glue potting or not as per you demand.
Certification： TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
Application：
Design for all applicable LED luminaries, such as wall lamp, garden lamp, recessed light, bollards and other available LED luminaries, etc...
