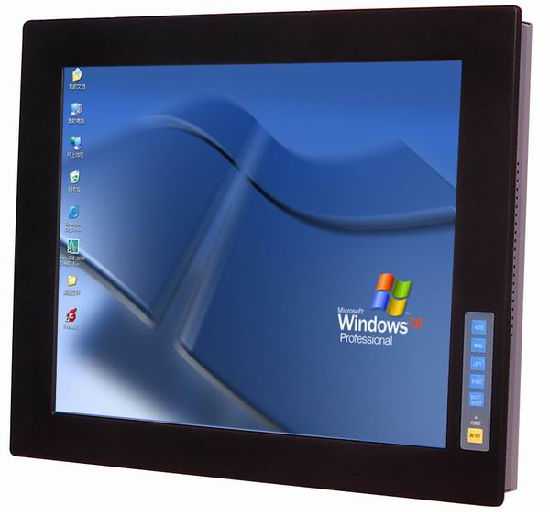

8.4 Inch TFT

尺寸:

8.4''

描述

聯絡供應商

The front panel aluminum magnesium alloy powder processing.
Housing plating zinc strong oxidation corrosion resistant properties.
Installation: 8.4 inch upside-down.
I/O interface: VGA 12V DC power input COM/USB(only touch screen version).
Housing color: industrial black(black sand grain).
Total weight: 1.5kg.
TP type: 5 wire resistive touch panel.
Operating pressure: 30-45g strength electronic shock<10ms.
Click lifetime: 250g strength 10 million times.
Relative illuminance: >81% outline dimension: 264mm x 165mm x 40mm.
Communication interface: RS232 serial/USB.
Power: external48W power adapter AC 100V-240V input.
OS support: Windows Me/Ce/98/2000/XP/Vista Linux etc.
Product standard: complying with CE, FCC, BSMI, CCC standard.
Signal characteristics: multi-scanning function, automatic recognition the resolution of input signal.
Display type: 8.4" VGA TFT LCD.
Operating temperature: 0-55.
Storage temperature: -20-60.
Storage humidity: 5-95 no condensation.
Display color: 262K.
Vibration test: 5-17Hz,full width replacement 17-500Hz, 1.0G peak value.
Input signal: XGA/AV.
Viewing angle: (H)1w0/(V)110.
Brightness: 350Cd/m2.
Contrast: 300:01:00.
Backlight performance: 2 CCFL.
Lamp lifetime: 50,000h.
Response time: 25ms.
Active area: 170.4 x 127.8mm.
DY-84IPF: 84"industrial flat display monitor VGA input toughened glass.
DY-84IPF-TC/U: 84"industrial flat display monitor VGA input touch panel.
DY-84-IPF-AV: 84''industrial flat display monitor.
DY-84-IPF-D (customize): adjustable range color outline logo size etc.
