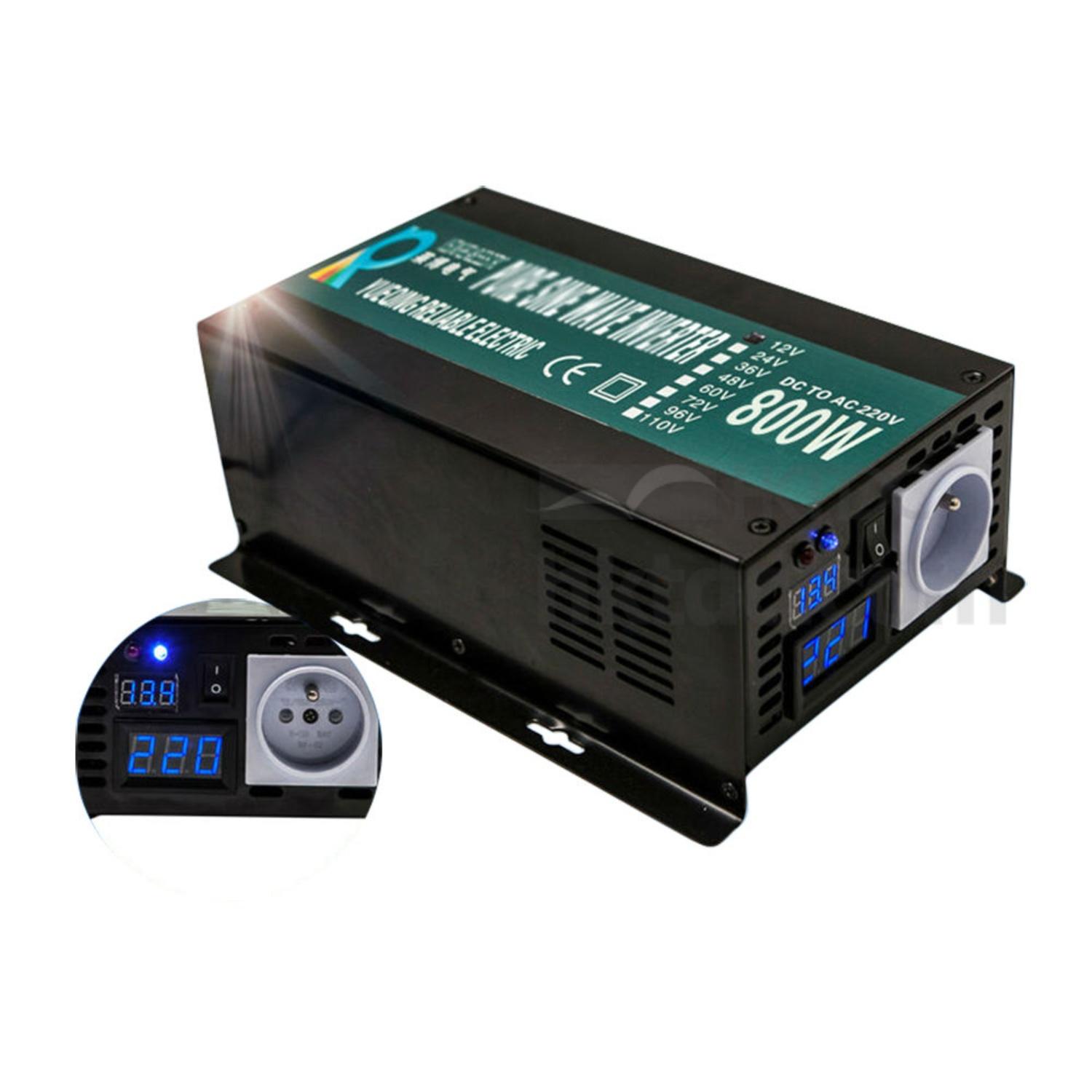

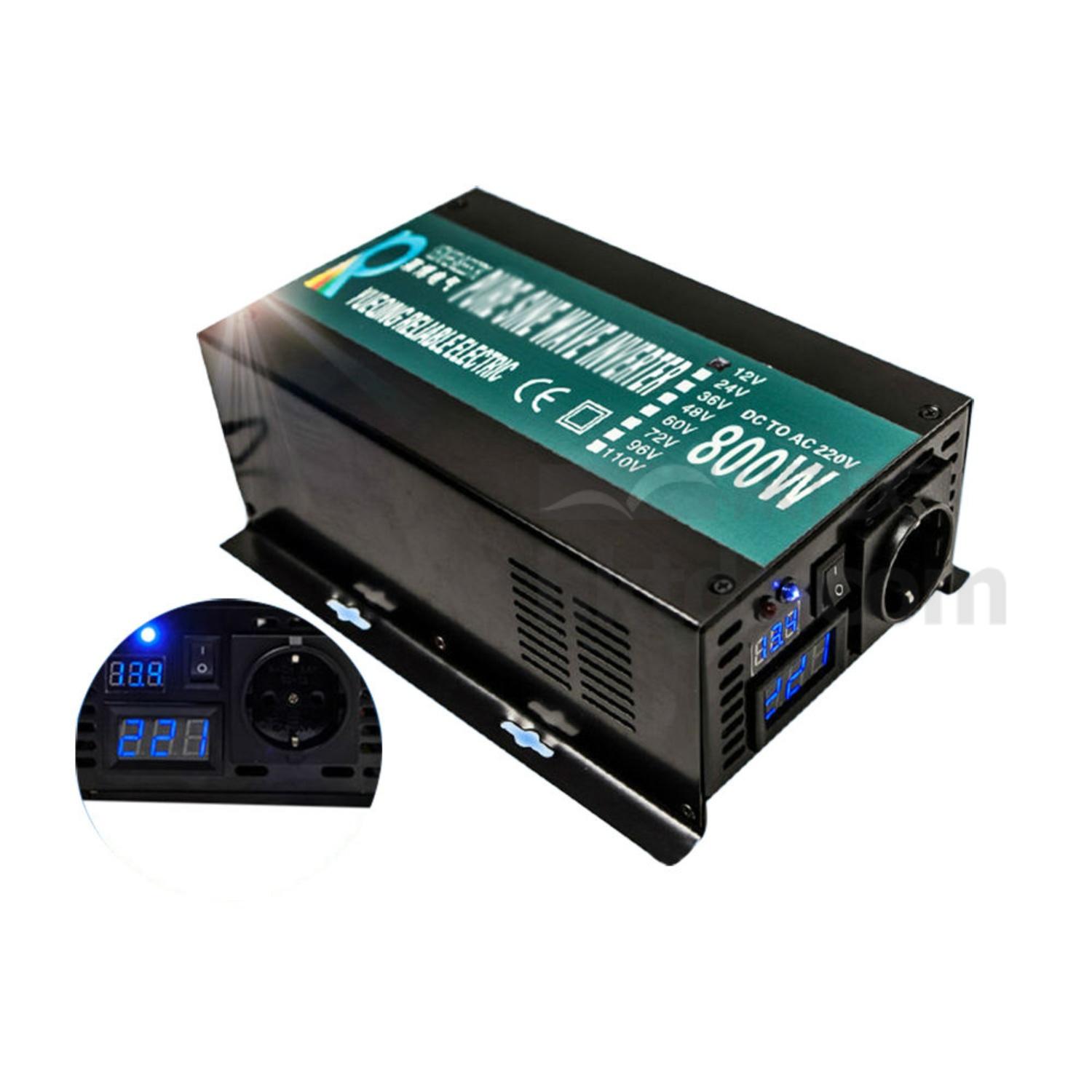

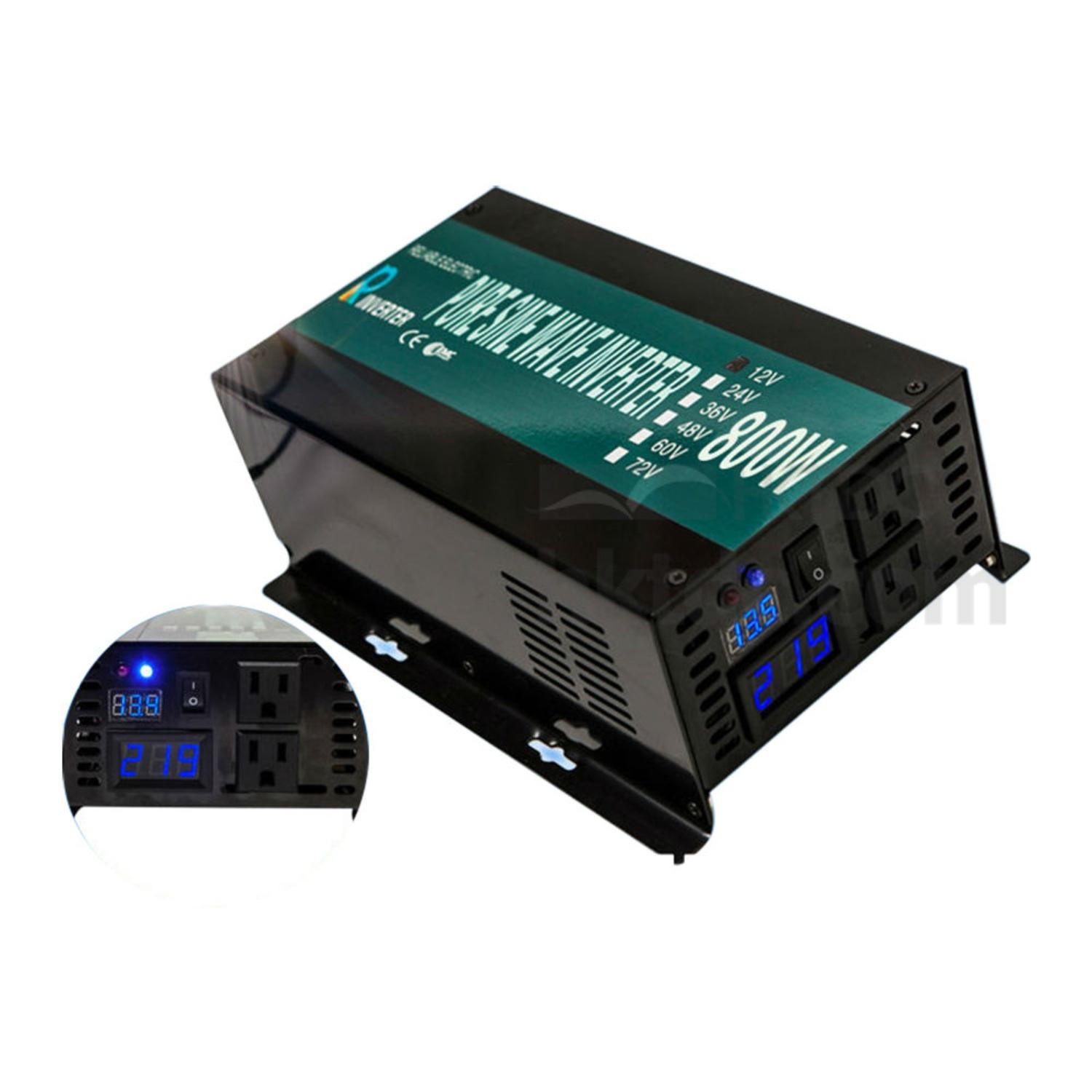

800w Pure Sine Wave Inverter
生產所需時間:
2 日
產品型號:
RBP-800S-LED
品牌名稱:
Reliable
顏色:
Black
尺寸:
275 x 170 x 95mm
港口:
Ningbo, Shanghai
付款方式:
T/T
最低訂購數量:
1
線圈結構:
環形變壓器
線圈數量:
自耦變壓器
是否有包裝:
有
是否可訂造:
是
用途:
電力變壓器
相數:
單相
描述
聯絡供應商
描述
- DC Voltage: 12V or 24V or 48V
- Voltage range: 10-15VDC or 21-30VDC or 42-60VDC
- NO load current draw: <1.5A
- Efficiency: >85%
- DC connector: cables with clips or car adaptor
- AC Voltage: 100/110/120VAC or 220/230/240VAC
- Continuous power: 800W
- Surge power: 1600W
- Waveform: pure sine wave
- Frequency: 50HZ or 60Hz
- AC regulation: 3%
- Low Voltage alarm: 10DC±0.5V or 20.5DC±1V or 44VDC±1V
- Low Voltage shut down: 9.5DC±0.5V or 19.5DC±1V or 42VDC±1V
- Over load: shut off output
- Over Voltage shut down: 15.5V or 30.5V or 61.2V
- Over thermal: shut off output automatically
- Fuses: short circuit
- Working temperature: between -10centi and +50centi
- Working humidity: 20%~90%RH non-condensing
- Storage temperature: between -30centi and +70centi
- Start: soft start
- Cooling ways: cooling fan
- Total harmonic distortion: THD <5%
- Machine size(mm): 270 x 170 x 95mm
- Packing size(mm) 350 x 230 x 160mm
- Net weight(kgs): 2.1kg
- Gross weight(kgs): 3kg
- Packing type carton packing
