8MP High DefinitionCamera Module

美元 $14.40 - 美元 $17.10

美元 $16.00 - 美元 $19.00

生產所需時間:

5 日

運送方式:

express delivery

型號編號:

HAMPO-003-0023

應用:

Windows XP(SP2,SP3)/Vista/7/8/10, Linux or OS with UVC driver.

Sensor Size:

1/3.2 "

Frame rate:

30fps/15fps

FOV:

D=144°

TTL:

22.1mm

Thread size:

M12*P0.5mm

Customised:

Yes

Size:

32*32

描述

聯絡供應商

Product Description

Model	HAMPO-003-0023
Max Resolution	3264*2448
Sensor Size	1/3.2 "
Pixel Size	1.4μm*1.4μm
Wide Dynamic range	66DB
Output Format	MJPG/YUY2
Focus	Fixed focus
Frame rate	30fps/15fps
Voltage	DC 5V
Working current	MAX 500mA
Interface	USB 2.0
Storage Temperature	-20°C to +70°C
System compatibility	1) Windows XP（SP2,SP3）/Vista/7/8/10 2) Linux or OS with UVC driver
Audio	YES

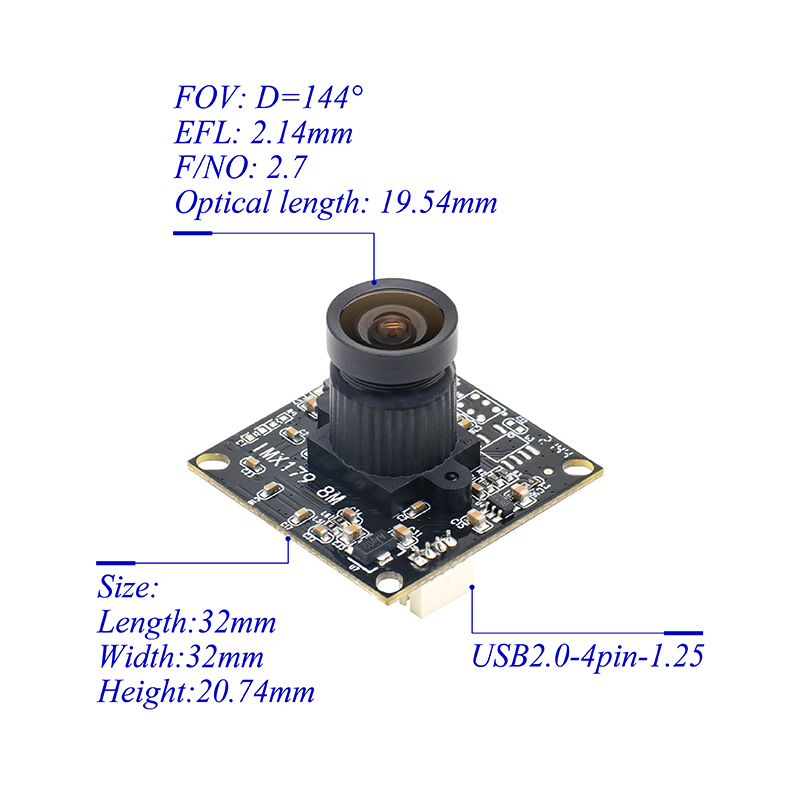

PCBA Size	32*32mm
FOV	D=144°
TTL	22.1mm
Lens construction	2G2P
Thread size	M12*P0.5mm

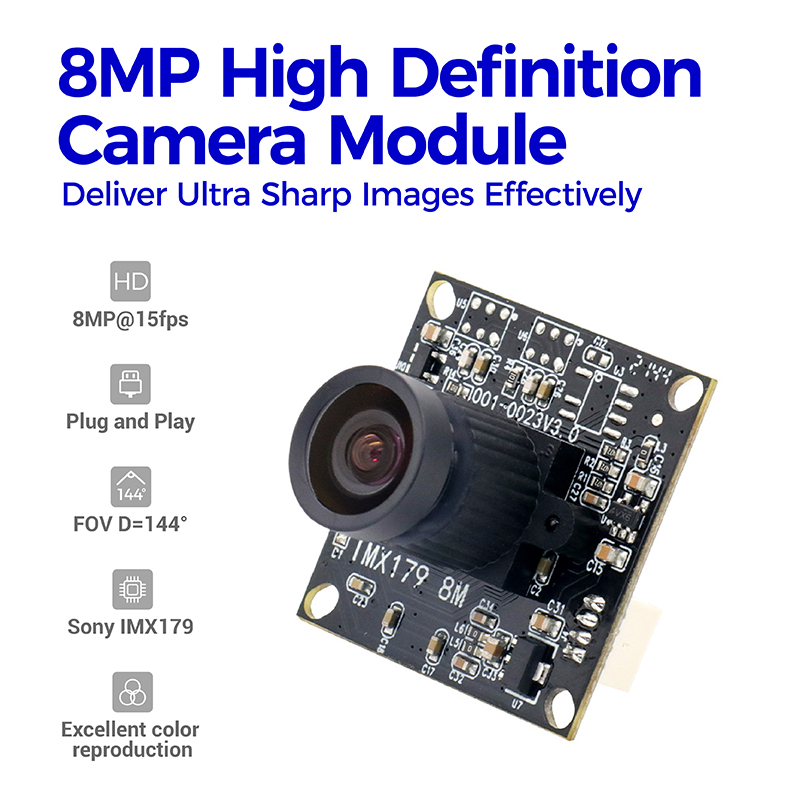

HAMPO-003-0023 is a high resolution with real 8MP USB camera module, adopt 1/3.2" high quality Sony IMX179 sensor fixed focus USB camera module, frame rate 3264*2448 at 30fps. 32*32mm of board size, FOV D=144° true and no distortion color image, perfect for document scanner, big LED screen display, education products like LED display, smart e-blackboard etc.
Compatible with Windows XP(SP2,SP3)/Vista/7/8/10, Linux or OS with UVC driver.
Key Features
8MP Ultra HD Resolution:
4K USB camera module ultra HD webcam module. Max resolution:3264*2448@30fps. Widely use for high levels video system of education or administration like document scanning, smart e-blackboard,and big screen display etc.
MJPG/YUV compression format optional, fast transmission,recorded clear, vivid, and colorful video. Support OTG optional.
High Quality Sony Sensor:

The camera adopt a 1/3.2" high quality CMOS Sony IMX179 sensor. The camera could make all the corner of files looks as clear as center part, no blurred during document/image scanning.
With Digital Mircrophone:Built-in high quality digital MIC, single or dual channel can be optional.
Plug&Play:
 Drive-free USB camera module is very easy to use, just need to plug the camera to USB port, no need to download or install any drivers. High speed USB 2.0 USB camera also support OTG protocol(UVC).

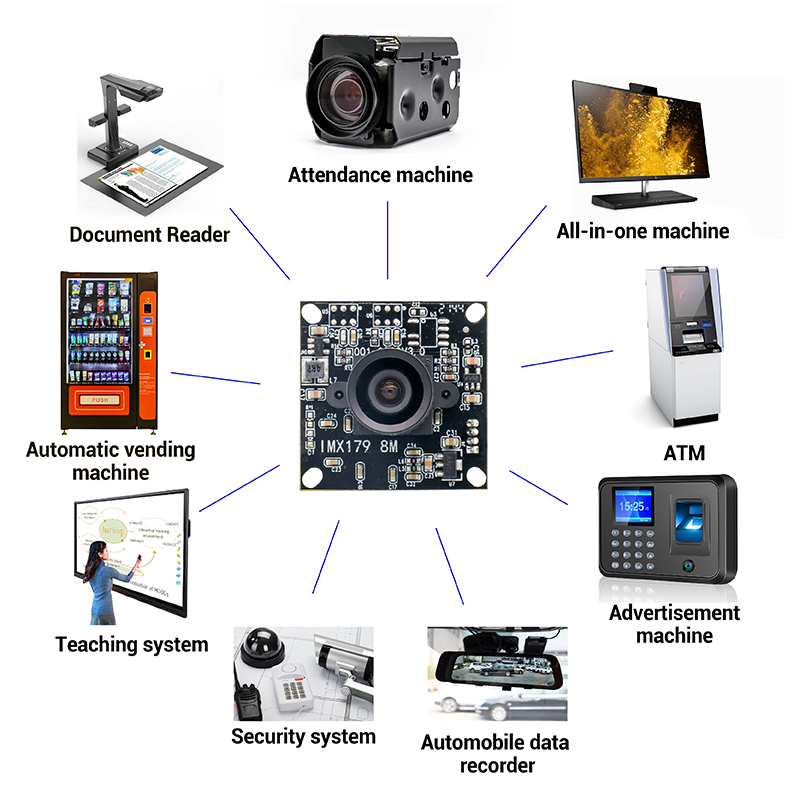

Applications:Document Scanner
Education Products:Smart e-blackboard, LED display, big screen display etc.
