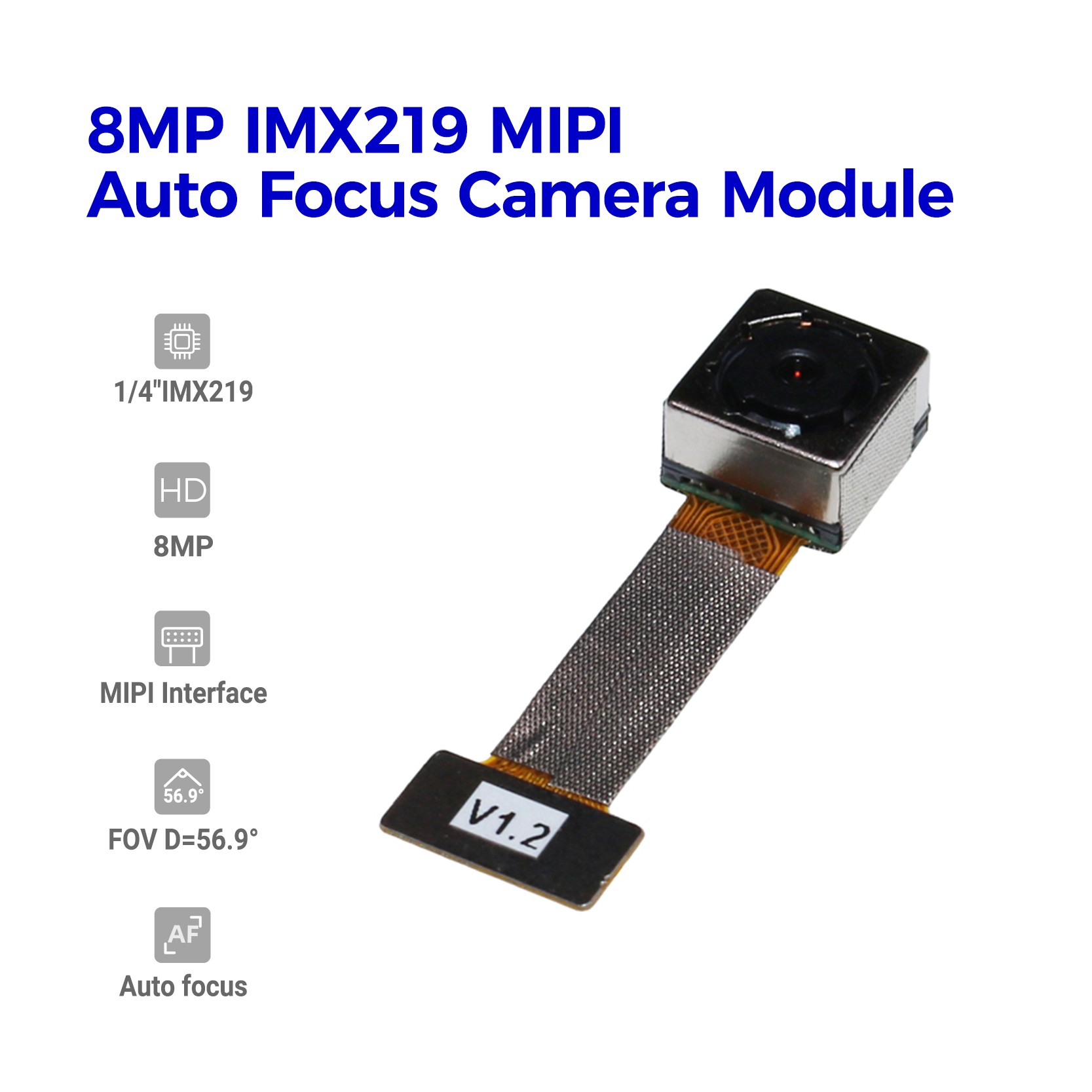

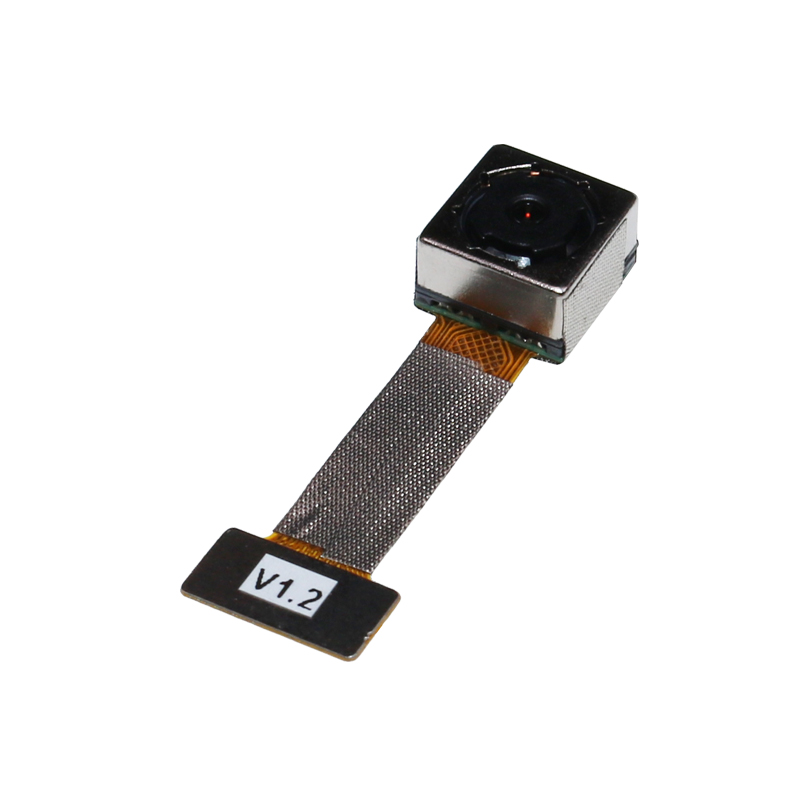

8MP IMX219 MIPI Camera Module with AF Auto Focus Lens

美元 $19.00 - 美元 $24.70

美元 $20.00 - 美元 $26.00

生產所需時間:

7 日

運送方式:

express delivery

Model Number:

HAMPO-J8MA-IMX219 V1.2

Image Sensor:

IMX219

View Angle:

56.9°(DFOV)

Focusing:

Resolution:

8MP

Module Size:

30.00 x 9.80 mm

Interface:

MIPI

描述

聯絡供應商

Product Description

HAMPO-J8MA-IMX219 V1.2 is a 8Megapixel MIPI interface camera module, using diagonal 4.60mm (Type 1/4.0) CMOS active pixel type image sensor with a square pixel array and 8.08M effective pixels.

This chip operates with three power supplies, analogue 2.8V, digital 1.2 V, and IF 1.8 V, and has low power consumption. High sensitivity, low dark current, and no smear are achieved through the adoption of R, G, and B primary color pigment mosaic filters.

This chip features an electronic shutter with variable charge-storage time.

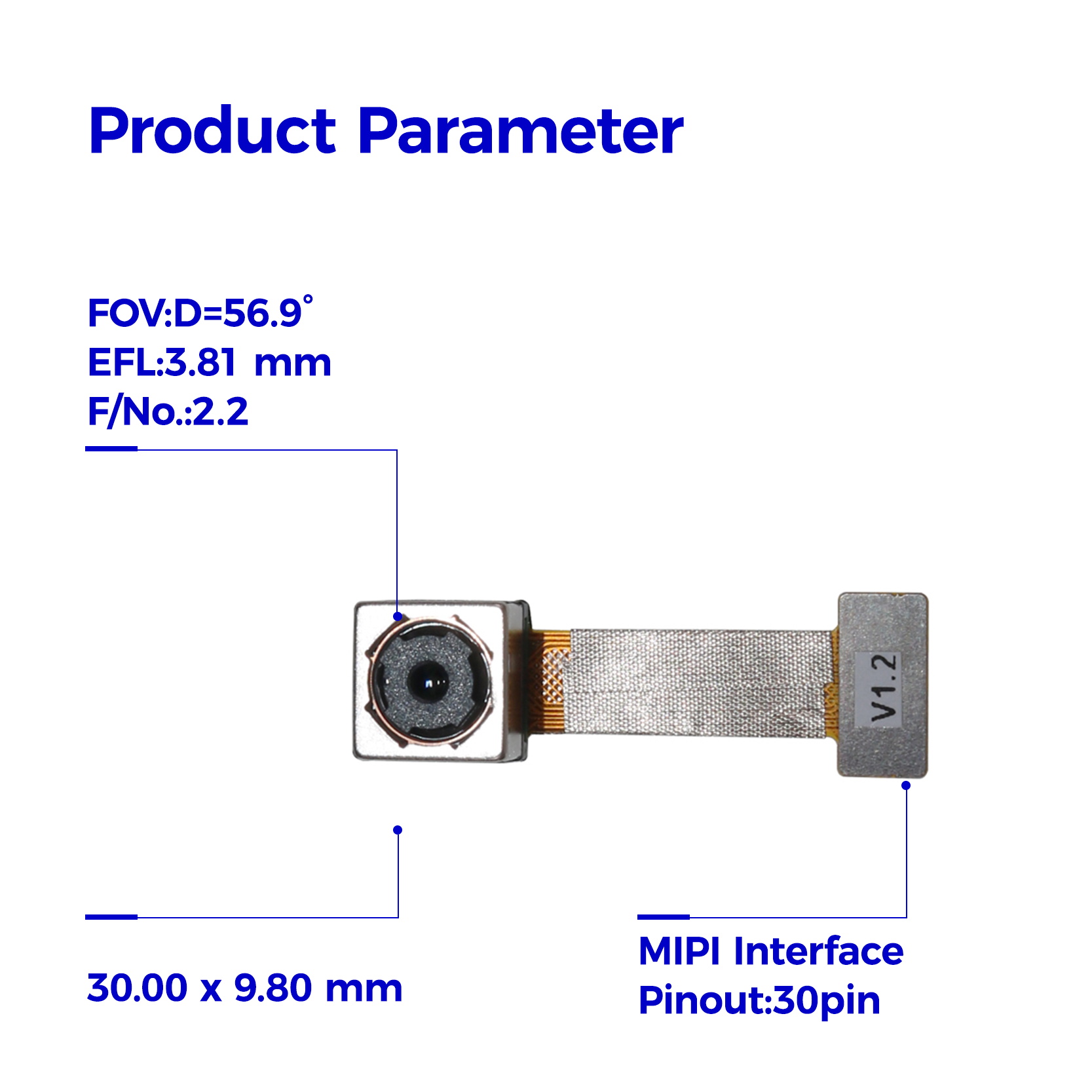

Specification
Camera Module No.
HAMPO-J8MA-IMX219 V1.2
Resolution
8MP
Image Sensor
IMX219
Sensor Size
1/4"
Pixel Size
1.12 um x 1.12 um
EFL
3.81 mm
F/No.
2.2
Pixel
3296 x 2480
View Angle
56.9°(DFOV) 47.9°(HFOV) 37.0°(VFOV)

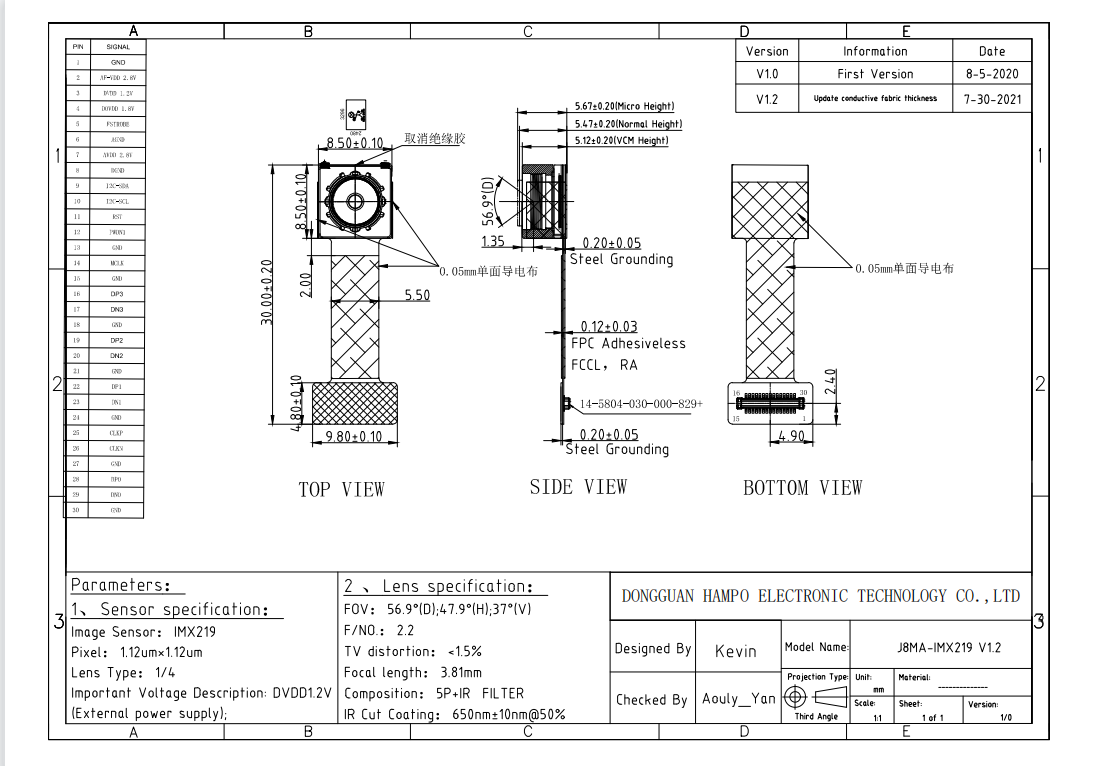

Lens Dimensions
8.50 x 8.50 x 5.67 mm
Module Size
30.00 x 9.80 mm
Focusing
Auto Focus
Interface
MIPI
Auto Focus VCM Driver IC
DW9714P
 Lens Type
650nm IR Cut
Operating Temperature
-20°C to +60°C
Key Features
◆Back-illuminated CMOS image sensor Exmor RTM
◆2-wire serial communication circuit on chip
◆CSI2 serial data output (selection of 4lane/2lane)
◆Timing generator, H and V driver circuits on chip
◆CDS/PGA on chip
◆10-bit A/D converter on chip
◆Automatic optical black (OB) clamp circuit on chip
◆PLL on chip (rectangular wave)
◆High sensitivity, low dark current, no smear
◆Excellent anti-blooming characteristics
◆Variable-speed shutter function (1 H units)
◆R, G, B primary color pigment mosaic filters on chip
◆Max. 30frame/s in all-pixel scan mode
◆Pixel rate: 280 [Mpixel/s] (All-pixels mode)
◆180 frame/s @720p with 2x2 analog (special) binning, 60 frame/s @1080p with V-crop
◆Datarate: Max.755Mbps/lane (@4lane), 912Mbps/Lane(@2lane)
Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
