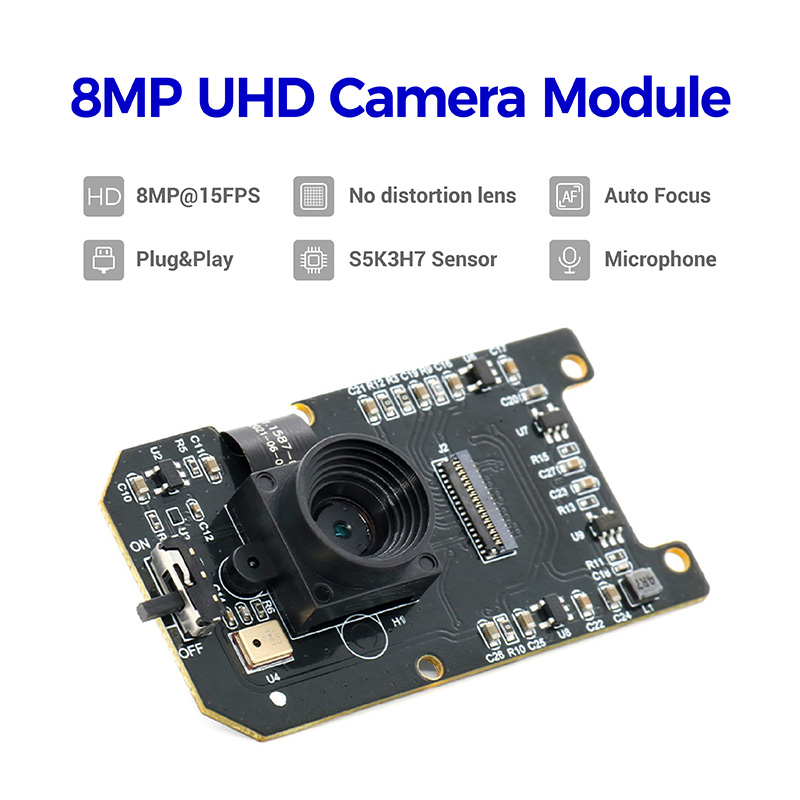

8MP S5K3H7 CMOS AF Camera Module for OCR/OCV

美元 $17.00 - 美元 $20.00

生產所需時間:

7 日

運送方式:

FOB SZ

型號編號:

003-1587

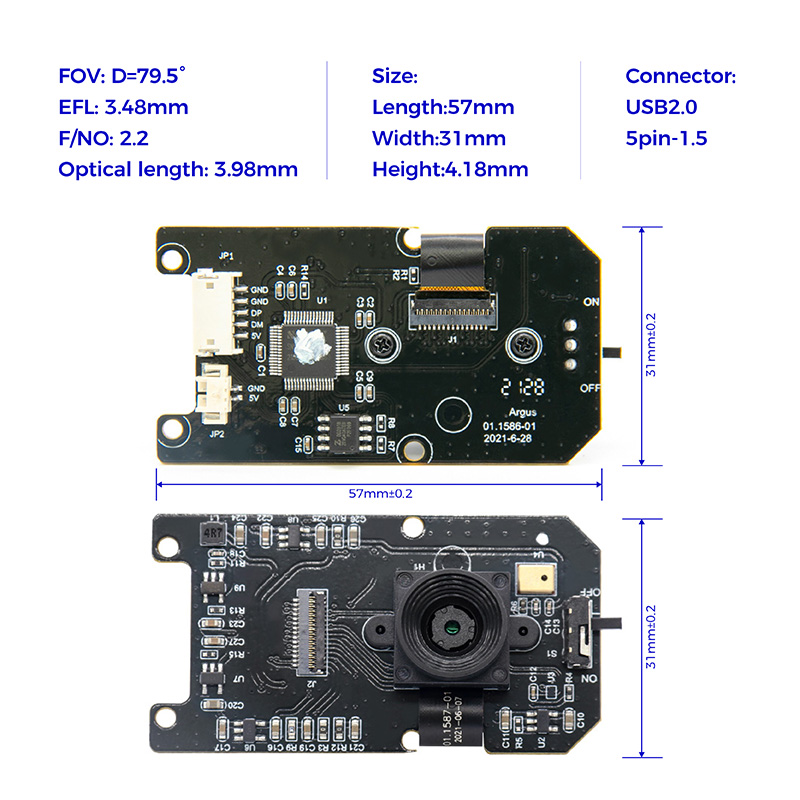

尺寸:

57mm*31mm

Sensor:

S5K3H7

FOV:

D=79.5°

Connector:

5pin 1.5mm

Resolution:

3264*2448

描述

聯絡供應商

Product Description

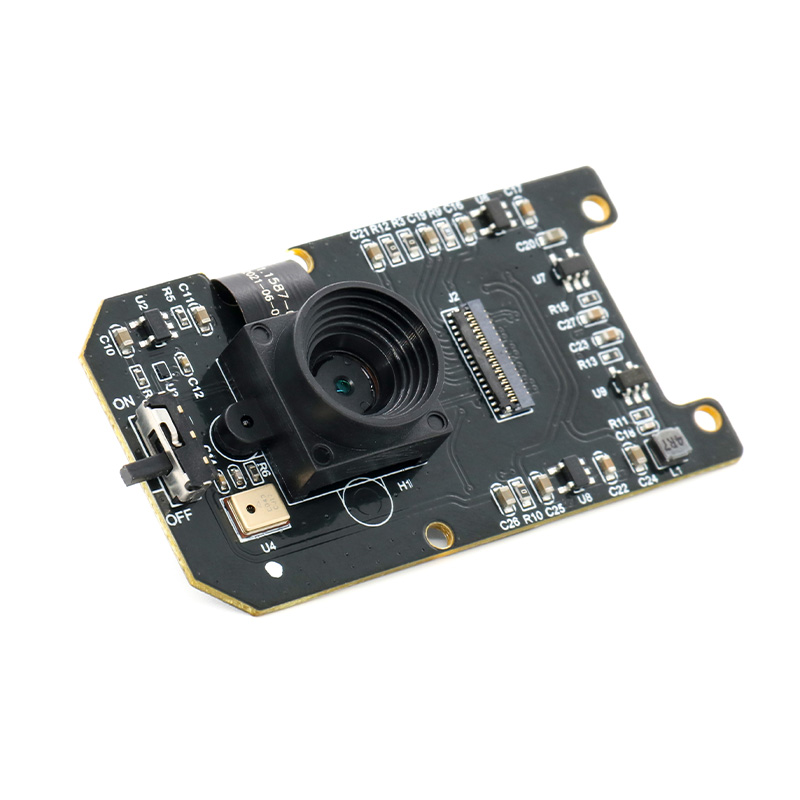

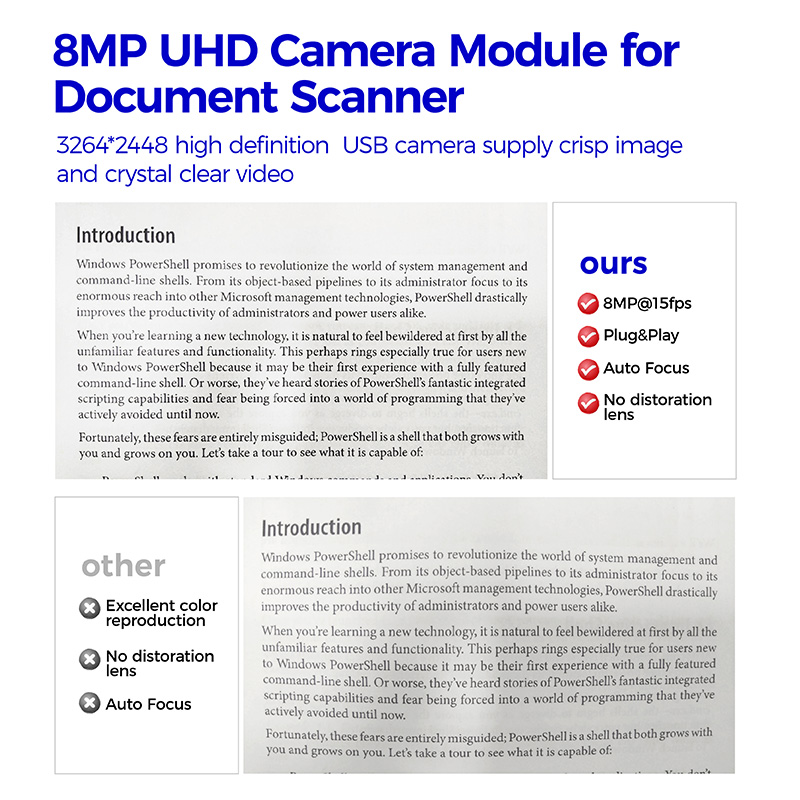

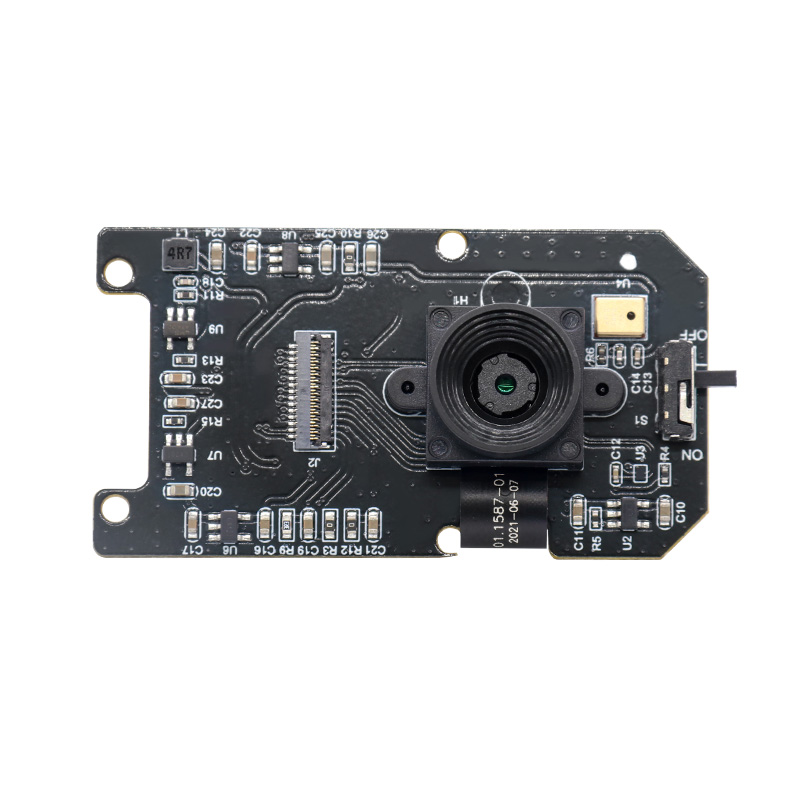

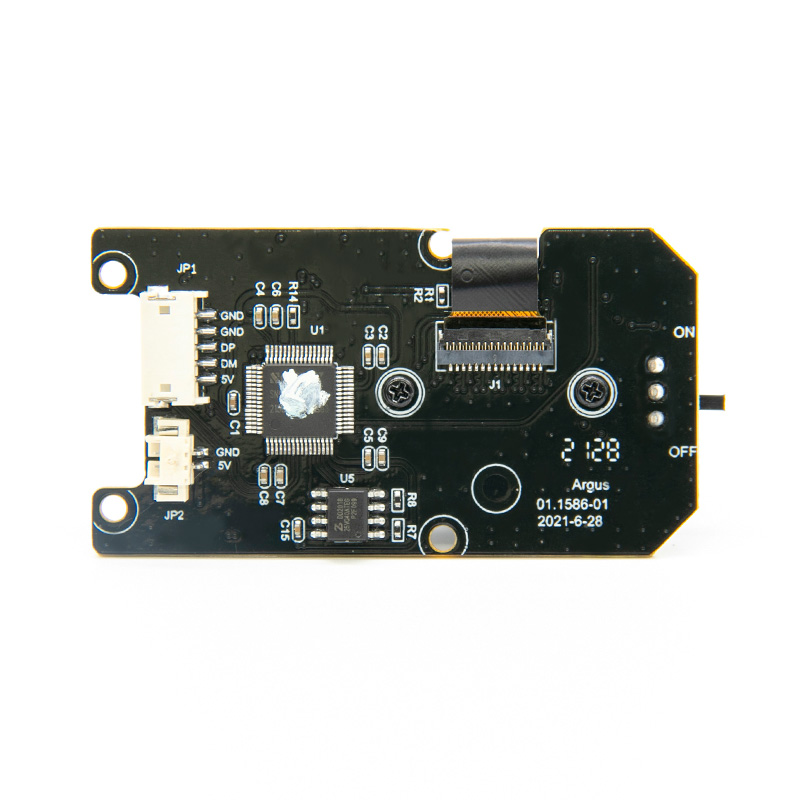

Hampo 003-1587 is an autofocus, 8 megapixel S5K3H7 CMOS sensor, image quality is very high and stable. The camera module has automatic focus function. Capture clear images of objects at different distances through autofocus. USB The connection port in the camera module supports USB 2.0 high-speed data transmission, and the USB of the camera board also supports OTG protocol (UVC). AF USB camera has a dedicated, high performance image signal processor chip that performs all automatic functions (automatic white balance, automatic exposure control), as well as a complete image signal processing pipeline, providing first-class image and video YUY2 and MJPEG compression Field of view 79.5° true color image without distortion, suitable for document scanner, LED large screen display, LED display, intelligent electronic blackboard and other educational products. Compatible with Windows 7, 8/10/11, Linux operating system.

Key Features

More than HD: This camera adopts 8MP S5K3H7 sensor for sharp image and accurate color reproduction.

Capture Video with Audio: High frame rates, MJPG 15fps@3264*2448.

High Quality of Image/Video: The camera with high definition 3264*2448P and lower color reproduction deviation produce sharp image and accurate information.

Plug&Play: This module support OTG, standard UVC protocol, USB interface free drive， just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

Applications: This tiny 33mmx31mm camera board can be installed in most hidden and narrow position for a home surveillance system, monitoring 3D Printer,document scanner, OCR reader, beauty instrument, teaching system,object recognition and tracking or other machine vision application.

Specification

Camera
Model No.	003-1587
Max Resolution	3264*2448P
Sensor	1/3.06" S5K3H7
Frame Rate	MJPG 15fps@3264*2448
Pixel Size	1.4μm*1.4μm
Output Format	YUY2/MJPG
HDR	80DB
Lens
Focus	Auto focus
FOV	D=79.5°
Lens Mount	M6.5 * P0.255mm
Power
Working Current	MAX 200mA
Voltage	AVDD2.8V/DVDD1.2V/DOVDD2.8V
Physical
Interface	USB2.0
Storage Temperature	-20ºC to +70ºC
Operating Temp	0°C~+60°C
PCB Size	33*31MM
Cable Length	3.3ft (1M)
TTL	3.98MM
Functionality and Compatibility
Adjustable parameter	Exposure/ White balance
System Compatibility	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

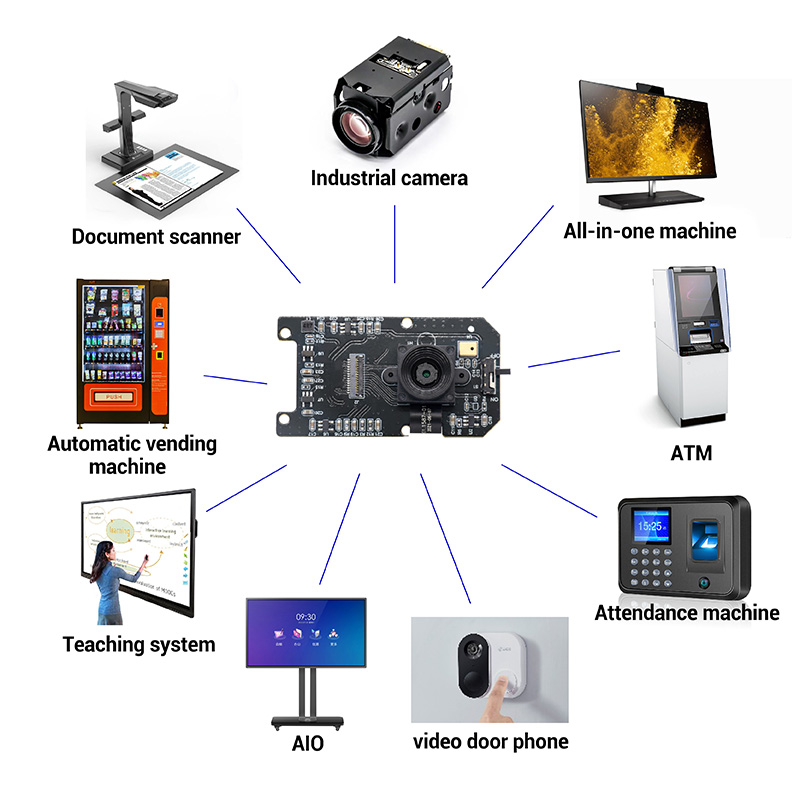

Applications

All-in-one machine
POS equipment /Credit card machine
Automatic vending machine
ATM
Face Matching
OCR components/OCR Reader
Teaching system
Security system
Automobile data recorder
Attendance machine
Industrial camera
Document Reader/Document scanner
