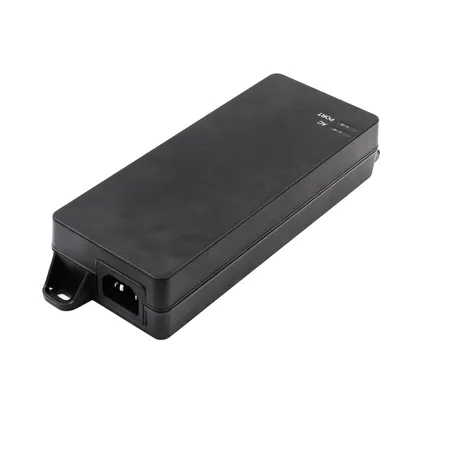

90W POE Power Supply

生產所需時間:

75 日

運送方式:

FOB HK

應用:

IP phones, wireless APs, POS equipment, programmable cameras, etc.

型號編號:

PoE90-560161

品牌:

Fuhua

Colour:

Black

Size:

222 x 80 x 40mm

Package:

Yes

Customised:

Yes

Output Voltage:

56V

Input Voltage:

90 - 264VAC

Output Power:

90W

Output Current:

1.61A

Place of Origin:

Mainland China

描述

聯絡供應商

Features:IEEE 802.3af/PoE++ protocol
10Mbps/100Mbps/1G/2.5G/5G/10G Ethernet transmission
Electrical specifications: Input voltage range: 90-264V AC
Input current: 1.8A
Output voltage range: ±5%
MTBF: 50,000 hours at maximum load levels and an ambient temperature of 25℃ (in correspondence with MIL-HDBK-217)
No-Load Input Power Dissipation 1.0W max

Environment parameters:

Operation temperature: - 40℃ -65℃
Storage temperature: -40℃ -70℃
Humidity: 5 to 90% RH (non-condensing)
Safety approval: CN(IEC62368), GS(EN62368), UL(UL62368), PSE(J62368), CCC (ITE GB4943), EAC, RCM, BIS, CE marks
Dimensions (L x W x H): 220 x 80 x 40mm
Applications: IP phones, AP Wi-Fi, portable battery chargers, POS

Safety standards:CCC, cULus (UL62368-1)/ CB(IEC62368-1), FCC(Part15), PSB(IEC60950-1)/GS(EN62368-1)/ PSE(J62368-1),
BIS(IEC60950-1), BSMI(CNS14336-1), RCM(AS/NZS62368.1), NOM(NAME-001-SCFI-1993)
