AC/DC Clamp Transducer

產品型號:

CA-60, CA-06

品牌名稱:

TECPEL

顏色:

Grey

港口:

Taiwan

付款方式:

T/T, Credit Card, Western Union

最低訂購數量:

描述

聯絡供應商

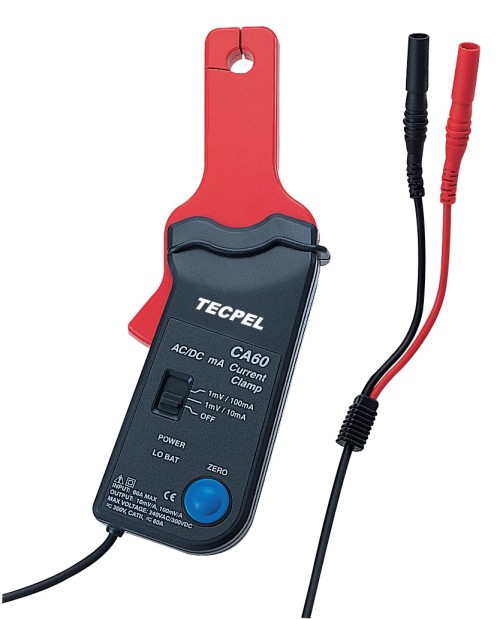

Product ID: CA-60.
This miniature clamp meter features two hall effect sensors.
For use with any multimeter with 200mV or/and 2V ranges for direct readout input impedance of least 1m ohm.
High conversion factor for low DC and AC mA measurement.
With the small jaw size it can fit into tight space in circuit panel or wire bundle to take the reading.
The high frequency response at 20 kHz is useful for waveform monitoring on an oscilloscope.
Zero adjustment is made easy by just pushing the ZERO button.
It is best for locating small signal, industrial control, battery leakage, and automotive usage.

Specifications:

Accuracy:

DC A: +/- 1.5% ACA: +/- 2% (40Hz ~ 2K Hz).
AC A: +/- 4% ( 2K ~ 10KHz).
AC A: +/- 6% ( 10K ~ 20K Hz).
Output: 1mV/10mA, 1mV/100mA.
Monitor small signal, waveform and leakage.
Size: 7.7" x 2.8" x 1.3".
Safety: designed to meet IEC 100-1, IEC 1010-2-032 CE.

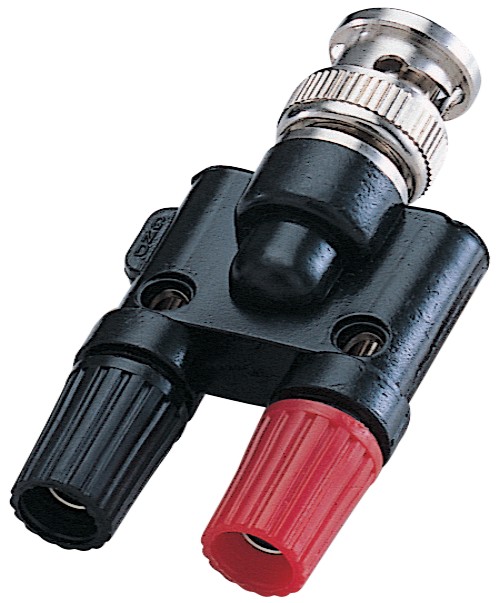

CA-06 adapter (option).
BNC- female 4mm banana post adapter for receiving signal output from CA-60 and able to be monitored by oscilloscope.
Certificate: CE.
