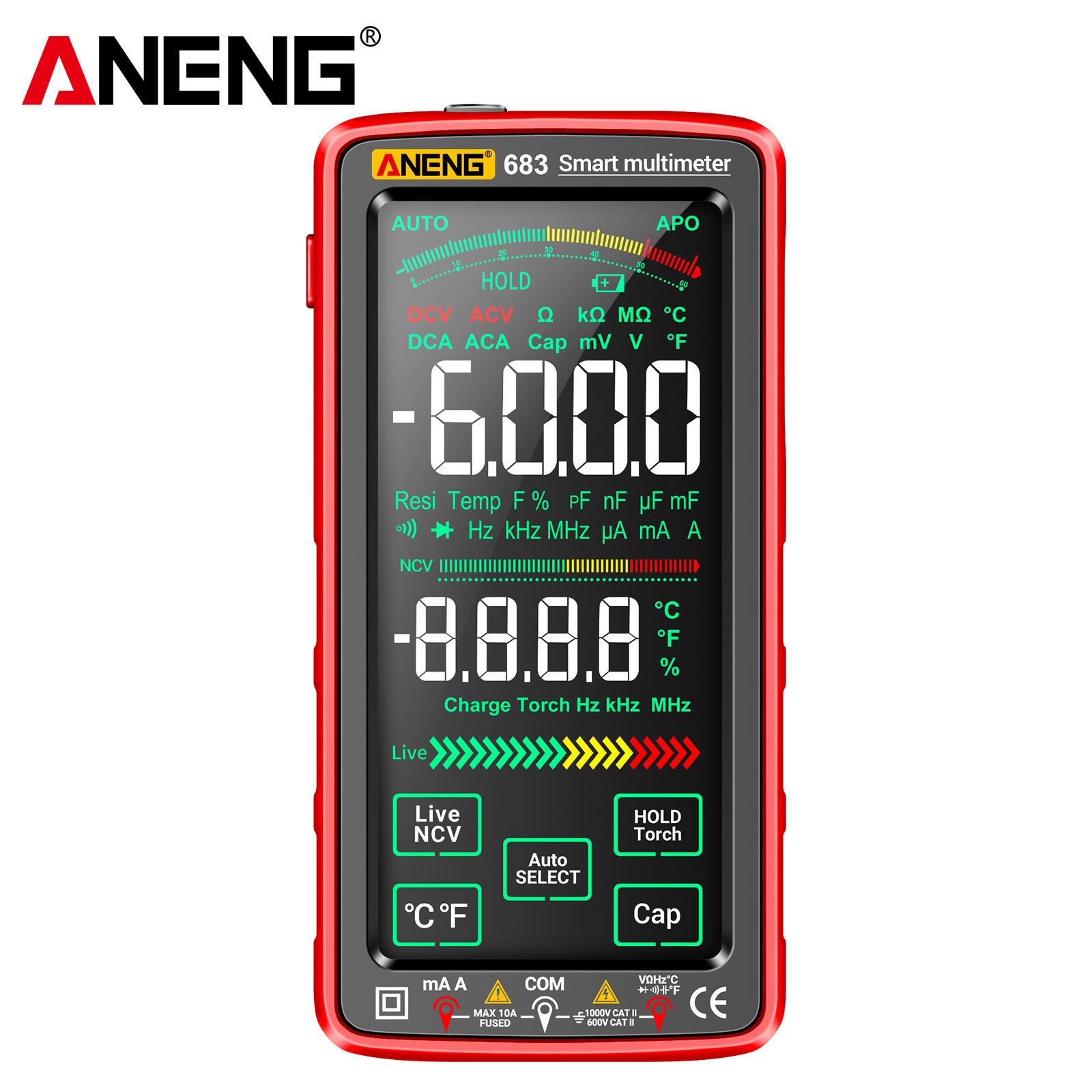

ANENG 683 Multimeter

生產所需時間:

7 日

運送方式:

Express/Air/Sea

品牌:

ANENG

型號編號:

683

描述

聯絡供應商

Specification:

Function	Range	Resolution	Accuracy
DC Voltage	6V/60V	0.001V/0.01V	±(0.5%+3d)
DC Voltage	600V/1000V	0.1V/1.0V	±(0.8%+10d)
AC Voltage	6V/60V	0.001V/0.01V	±(0.8%+3d)
AC Voltage	600V/750V	0.1V/1.0V	±(1.0%+10d)
AC Current	6000mA	1mA	±(1.0%+5d)
AC Current	10A	0.01A	±(2.5%+10d)
DC Current	600mA	1mA	±(1.0%+5d)
DC Current	10A	0.01A	±(2.5%+10d)
Resistance	600Ω/6kΩ/60kΩ/600kΩ	0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ	±(0.8%+3d)
	6MΩ	0.001MΩ	±(1.2%+3d)
	60MΩ	0.01MΩ	±(2.5%+5d)
Capacitance	60nF/60nF/6uF/60uF/600uF/6mF	0.01nF/0.1nF/0.001uF/0.01uF/0.1uF	±(4.0%+20d)
	60mF	0.01mF	±(5.0%+5d)
	100mF	0.1mF	for reference
Frequency	9.999Hz/99.99Hz/999.9Hz	0.001Hz/0.01Hz/0.1Hz	±(0.8%+3d)
Frequency	9.999kHz/99.99kHz/999.9kHz	0.001kHz/0.01kHz/0.1kHz	±(0.8%+3d)
Temperature	-40℃-300℃	1℃	±(1.0%+4d)
	301℃-1000℃	1℃	±(1.9%+5d)
	-40℉-600℉	1℉	±(1.2%+6d)
	601℉-1832℉	1℉	±(1.9%+6d)
Diode	Yes	Circuit on/off Test	Yes
Data Hold	Yes	Automatic power off	Yes
Torch	Yes	NCV Test	Yes
Buzzer	Yes	Live-Neutral Test	Yes

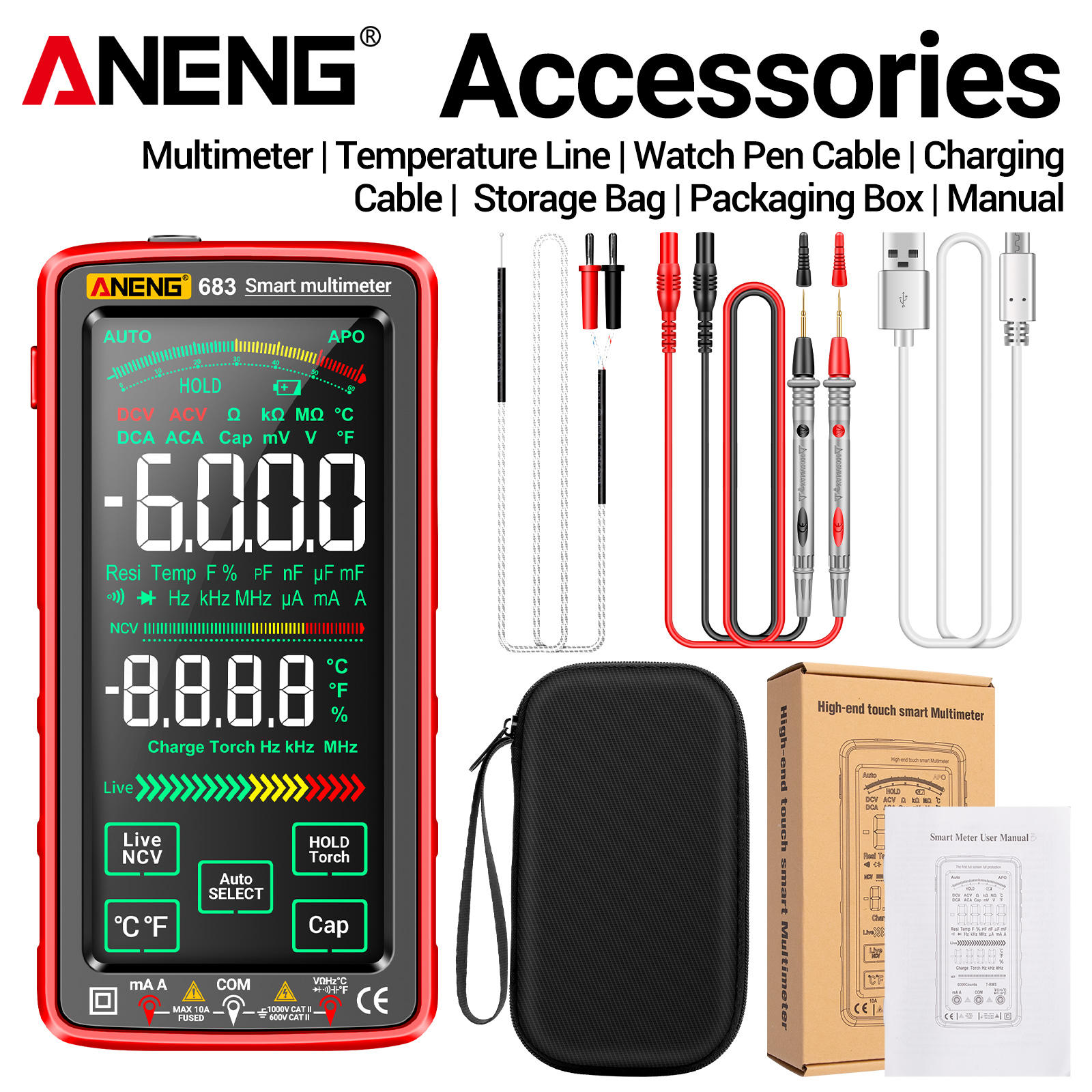

Packaging List:
1 X 683 Multimeter(Built-in lithium battery)
2 X Test Lead
1 X Temperature Lead
1 X USB Charging Cable
1 X User Manual
1 X Packing Box
