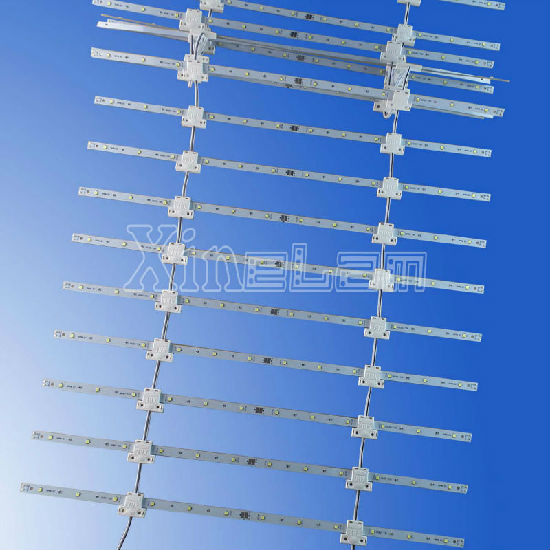

Advertising Light Box LED Curtain Backlight RGB
分享此頁面
生產所需時間:
5 日
產品型號:
RX-BKT41S-60-600-RGB
品牌名稱:
XineLam
顏色:
WW NW CW RGB
尺寸:
500 x 10 x 2.8mm
港口:
Zhongshan
付款方式:
T/T, Western Union, PayPal
最低訂購數量:
20 piece(s)
電壓(伏):
DC12V
功率(瓦):
2.8W
用途:
Lightbox signs
描述
聯絡供應商
描述
  • LED curtain backlight double side LEDs
  • Type LED modules
  • Chip material InGaN
  • Emitting color CW, NW, WW,RGB
  • Luminous flux (lm) 78lm
  • Power 2.8W
  • Viewing angle (°) 120
  • Color rendering index (Ra) 75
  • Color temperature 27003200K, 42004700K, 60006500K,RGB
  • Operating temperature (℃) 20 50
  • Storage temperature (℃) 20 80
  • Place of origin Guangdong, China (mainland)
  • Brand name XineLam soft LED backlight
  • Certification CE, RoHS
  • Input voltage DC 12V (constant voltage)
  • Lamp body materials LED, rigid PCB, plastic pieces, lead cable
  • Each strip size 500 x 10 x 2.8mm
  • LED to LED distance 41.6mm
  • Strip to strip distance 60mm
  • LED qty 12LEDs each strip
  • LED chip SMD5050
  • Max series 48pcs in roll
  • LED lamp design doubleside
  • Working lifetime (hour) 50000hr
LED curtain backlight, which is the most versatile and practical illumination solution for indoor sign cabinets and large area illumination:
  • High light efficiency 100 115lm/W
  • Epistar SMD LED 2835 or 5050
  • The most economical led backlight systems for light boxes
  • Mercuryfree, no harmful rays, no flicker, instant start
  • Minimal depth required at 9cm distance, no hot spots
  • High Cri: ra>75/85
  • Simple screw mounting, easytoinstall rolls, lightweight
  • Constant current DC 12~48V; maximum connected in series 240W; 100pcs strips
  • Available in singlesided and doublesided models
  • DC 12v constant voltage types can be cut each 3LEDs to fit custom size boxes
  • Long lifespan >40000hr
  • Backed by 3 years warranty
  • Patented no.: 201220134846.0
LED lattice offers:
  • Uniform lighting, no hot spots
  • Low maintenance, easy servicing
  • Easy installation, simple screw mounting
  • Green lighting & thin light boxes
  • At affordable costs
  • High brightness
  • Lightweight
Lattice eliminates:
  • Hotspots
  • Costly maintenance
  • Environmental hazards
  • Bulky light boxes
LED lattice applications:
  • Indoor sign cabinets
  • Large light boxes
  • Internally lighted billboards
  • Large signage display areas
  • Architectural walls & columns
  • Single & double signs
