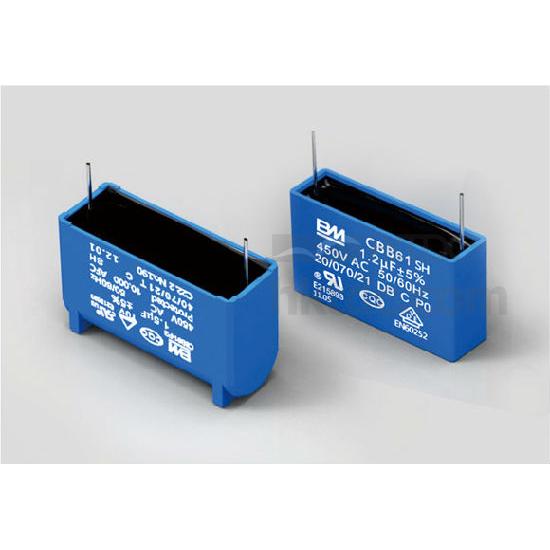

Air Conditioner Capacitor
品牌名稱:
BM
描述
聯絡供應商
描述
- Pin capacitor for air conditioners.
- Made of electrical class metalized polypropylene film.
- Thickened metalized electrode.
- 94V level flame-resistant plastic box.
- Enveloped with epoxy resin.
- Welded by tinned copper wire.
- Automatic production.
- Good uniformity and high stability.
- Safety approvals: UL, VDE, CQC.
- Implemented standard: GB/T3667, UL810, EN 60252.
- Climatic category: 25/70/21, 25/85/21, 40/70/21, 40/85/21.
- Rated voltage: 450V AC (50/60Hz).
- Capacitance range: 1μF~3.5μF.
- Capacitance tolerance: ±5% (J), ±10% (K), ±105% (U).
- Testing voltage between terminals: 2 x UN (V AC)/60s.
- Between terminals and case: 2 x UN + 1000 (V AC)/60s (≥2000V AC).
- Insulation resistance (20℃) between terminals and case: ≥2000MΩ (500V DC, 60s).
- Tangent of loss angle (20℃): ≤0.002 (100Hz).
