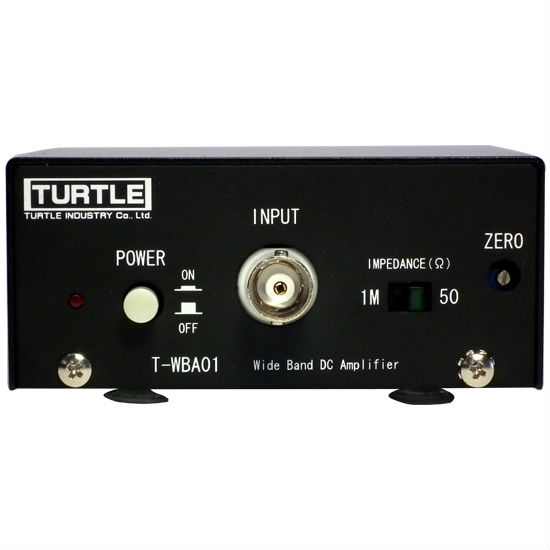

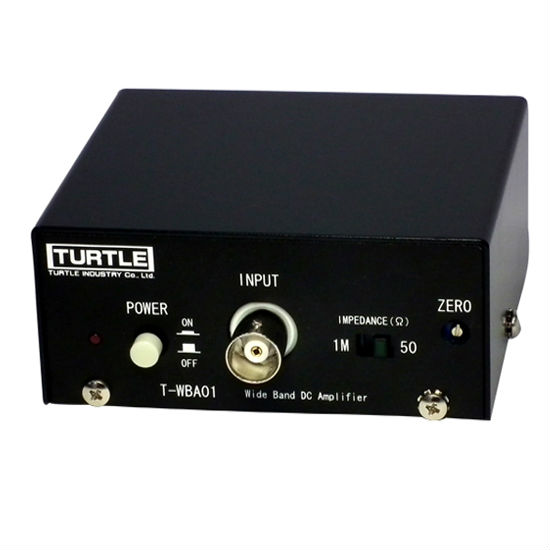

Broadband Amplifier

產品型號:

T-WBA01Z

品牌名稱:

TURTLE INDUSTRY Co., Ltd.

尺寸:

W80 x H35 x D75mm (protrusions such as connectors not included).

港口:

Narita Airport

付款方式:

remit by cable in advance

最低訂購數量:

5 piece(s)

描述

聯絡供應商

Weight: approx. 170g (AC/DC adaptor and cables not included).
Number of inputs: 1 channel (BNC).
Input resistance: switches between 50Ω/1MΩ.
Absolute max. input voltage: ±5Vp
Gain: 26dB (light load)/20dB (50Ω load) both ± 0.3dB.
Max. output voltage: approx. ±4.9Vp (load resistance 1MΩ) / approx. ±2Vp (load resistance 50Ω at output terminal)
Max. output current: approx. ±50mAp
Frequency band: DC ~ approx. 20MHz (-3dB, 50Ω load, output voltage 1Vpp)
Flank time: approx. 1V/20nsec (load 50Ω).
Noise aoltage: approx. 2.5mVrms (output value with input short of 50Ω and load of 1MΩ from 3Hz to 20MHz).
Offset adjustable range: approx. ±100mV (output voltage, load 1MΩ)
Output resistance: 50Ω for both inverted and non-inverted (BNC x 2).
Power supply voltage: DC5V (isolated from internal circuit).
Consumed current: approx. 200 mA (accompanying AC/DC adaptor, AC100 V: 21mA)
Operating temperature: 5C ~ 45C.
With a power push button.
Minimize loss of wave signals.
For both positive and negative output.
Strong and protective case.
Easy to operate.
Compact in size.
