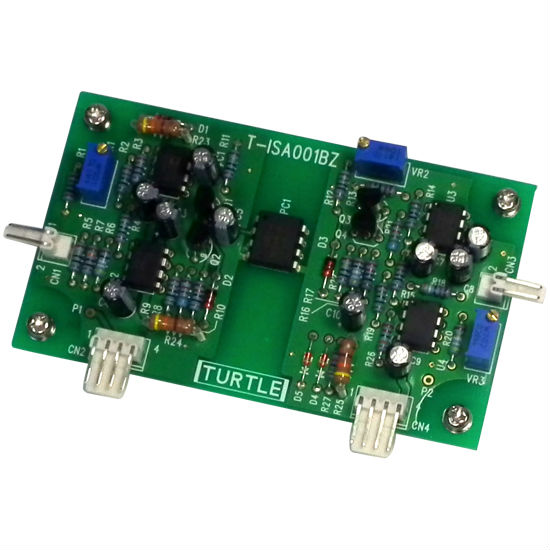

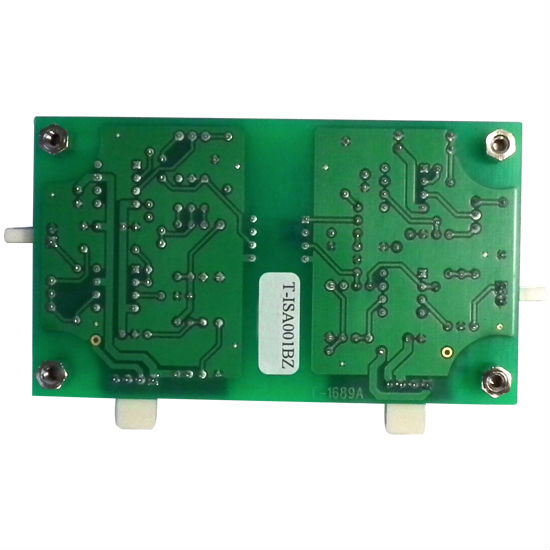

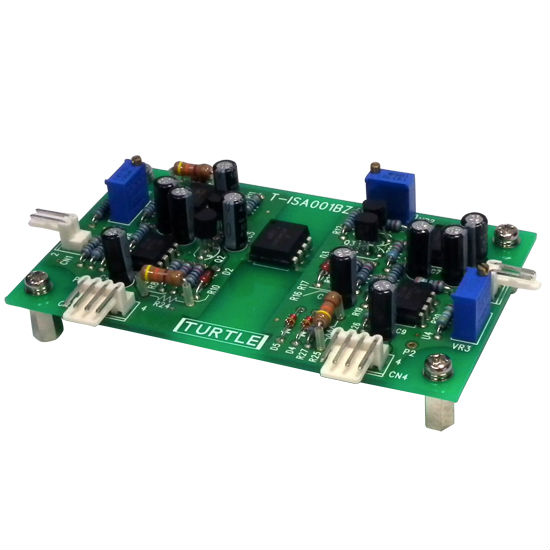

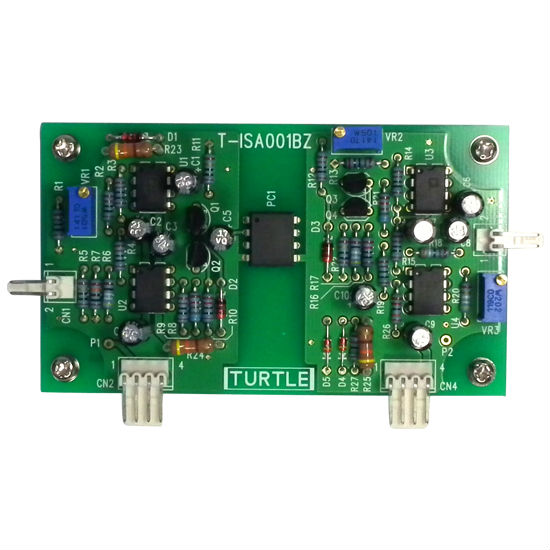

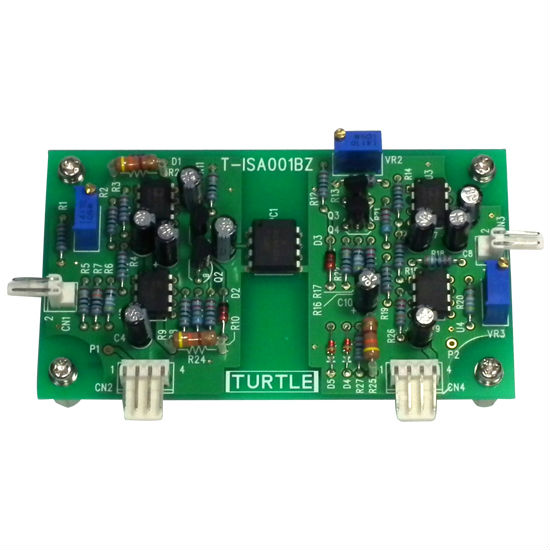

Broadband Isolation Amplifier

產品型號:

T-ISA001BZ

品牌名稱:

TURTLE INDUSTRY Co., Ltd.

尺寸:

55 x 95 x 15mm (thickness) (Spacer, connector and other protrusions not included).

港口:

Narita Airport

付款方式:

remit by cable in advance

最低訂購數量:

5 piece(s)

描述

聯絡供應商

Weight: approx. 45 g (cables not included).
Insulation withstanding voltage: 1500Vrms between primary and secondary circuits.
Allowable input voltage: ±1Vp (amplifier gain of 20dB).
Input resistance: approx. 100KΩ.
Gain: within 20dB ± 4% (DC, with full-scale).
Overall frequency property: DC ~ 1MHz (-3dB, Output 10Vp).
Output noise voltage: approx. 7.5mVp or less.
Example of max. output voltage and current: approx. ±10Vp approx. ±10mA.
Harmonic Distortion: 0.3% or less (10KHz 10Vp output).
Non-linearity: 0.4% or less (output 10V).
Temperature drift of input: approx. 160μV/C (average) or less (Input 50Ω terminate).
Output resistance: 50Ω.
Power supply (voltage and consumed current): +15V approx. 30mA, -15V approx. 30mA at primary side.
+15V approx. 30mA, -15V approx. 15mA at secondary side.
Operating temperature: 5C ~ 45C.
With bandpass width from DC to 1 MHz.
Isolate analog signals.
Create no spike noise like common isolation amplifiers.
Quiet yet responsive.
Superior performance.
Compliant with RoHS.
