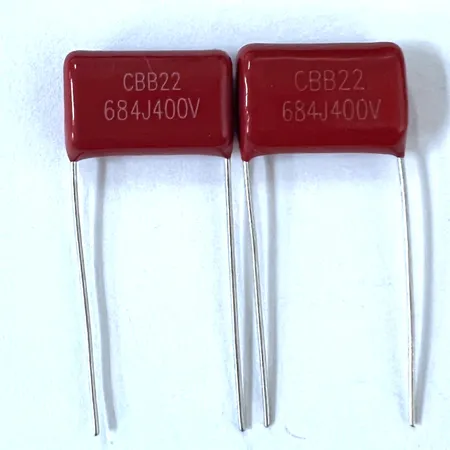

CBB22 Metallized Polypropylene Film Capacitor 684J

美元 $0.01 - 美元 $1.00

生產所需時間:

7 日

運送方式:

EXW

Model No.:

CBB22 684J 400V

Colour:

RED

Port:

Hong Kong

Minimum Order Quantity:

1,000

Package:

Yes

Customised:

Yes

描述

聯絡供應商

This CBB21 metallized polypropylene film capacitor has high-pressure tolerance, high insulation resistance and a low-profile. It comes in a compact size and two leads for soldering. The CBB21 capacitor is suitable for direct current, impulse and low-power circuits with high temperature.

Reference standard: IEC 60384-16, GB 10190.
Climate category: 40/105/21.
Rated temperature: 85Celsius.
Operation temperature range: -40 ~ 105Celsius.
Rated voltage: 100Vdc ~ 2000Vdc.
Capacitance range: 0.00047uF ~ 6.8uF.
Capacitance tolerance: +-5%(J), +-10%(K), +-20%(M) (20Celsius, 1kHz).
Voltage proof between terminations: U=1.6UR, 5s (20celsius).
Insultation resistance: 100Vdc <=UR<500Vdc .
CR<=0.33uF, IR>=60000MΩ, CR>0.33uF, t>=20000MΩ.uF.
(20celsius, 100Vdc, 1min).
UR>=500Vdc.
CR<=0.33uF, IR>=60000MΩ, CR>0.33uF, t>=20000MΩ.uF.
(20celsius, 500Vdc, 1min).
Dissipation factor: 1kHz: <=0.0010.
10kHz: <=0.0020 .
(CR<=1uF) (20celsius).
high-pressure tolerance
high insulation resistance
Low-profile.
Compact size.
With two leads for soldering.
Suitable for direct current, impulse and low-power circuits with high temperature.
