CCA Multi Core Alarm Cable
產品型號:
DX-AL
品牌名稱:
DX
顏色:
brown
港口:
Shanghai, Ningbo
付款方式:
T/T or LC
最低訂購數量:
10 kilometer
是否有包裝:
有
是否可訂造:
是
描述
聯絡供應商
描述

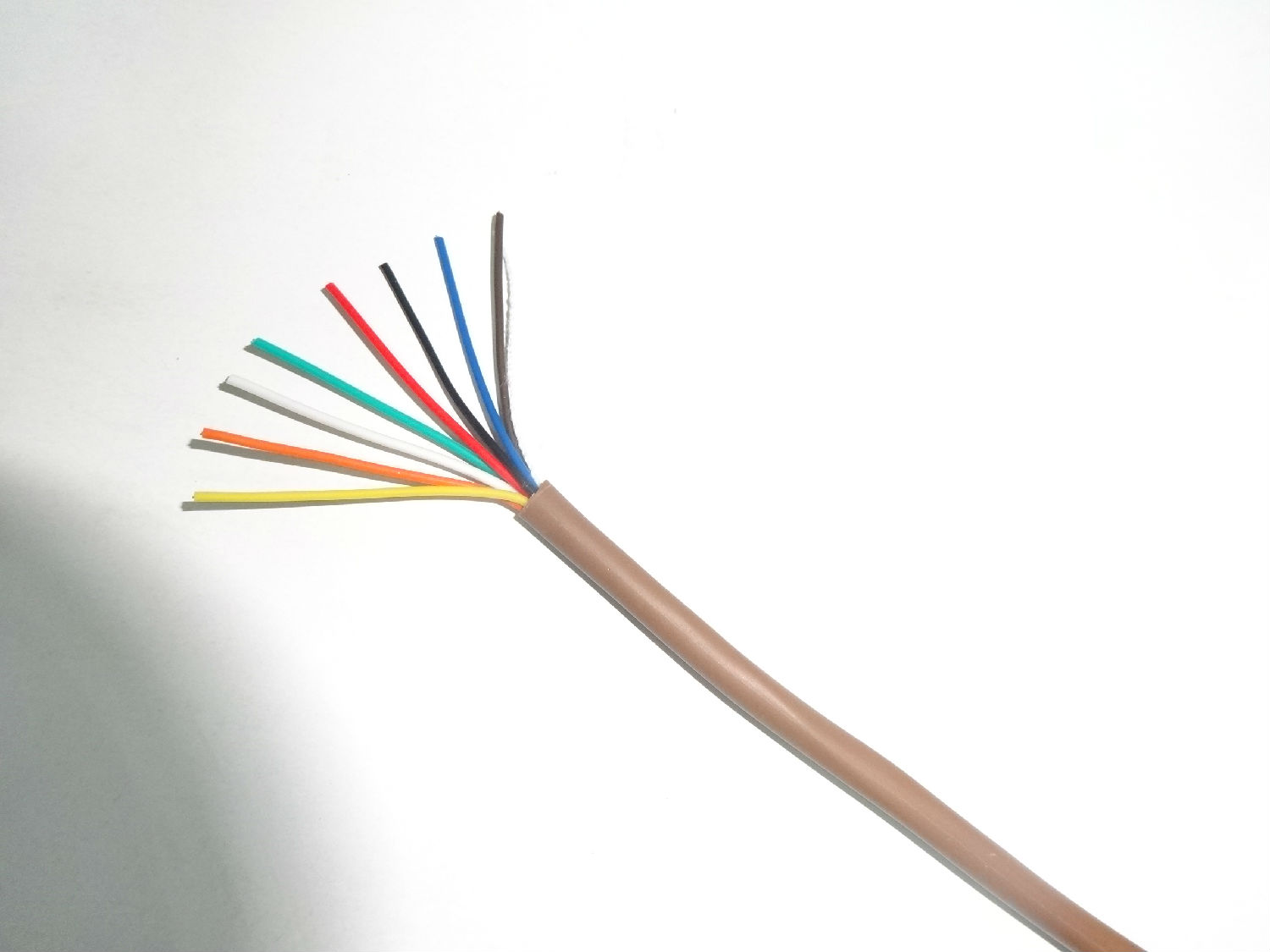

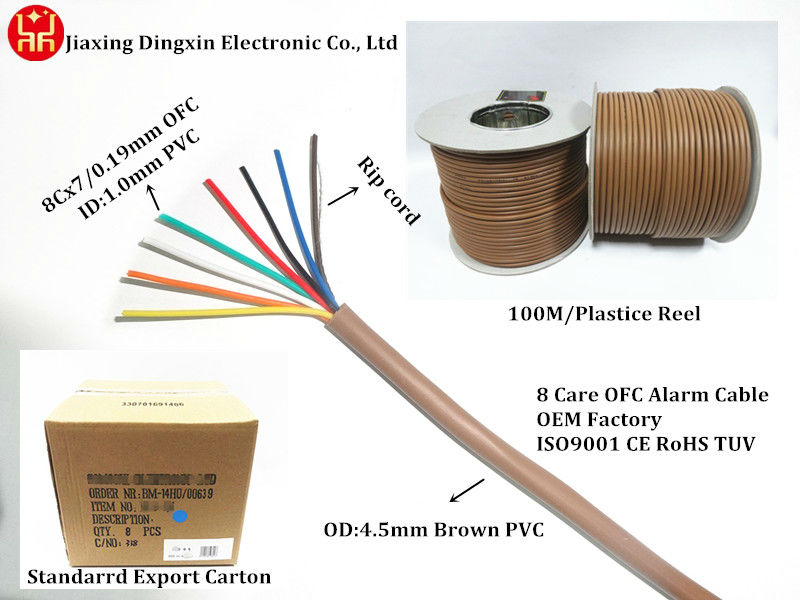

8Cx22AWG Alarm Cable
1. 8Cx7/0.20mm CCA
2. I.D:1.0mm PVC+rip cord
3.OD: 4.5mm
Product Structure
Model No. white Anti-theft Alarm Cable
Conductor Dimension22AWG or according to customer's request
Conductor MaterialOFC/TC/CCA/TCCA
Insulation 1. Water blocking swellable tape (optional)
2. HD-PE (High density polyethylene)
3. PVC
Number Of Cores 2 core/4core/6core/8core/10core
Shielding UTP/Polyester Tape/Al Foil
Ripcord yes or not
Drain wire yes or not
Jacket PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)
Color Different color is available
Operating temperature -20 ° C - +75 ° C
Service Life 20~25 years
Application
These cables are designed for installation signle alarm and alarmsystems.They allow the connection of contacts,detectors and sensors,infrred as well asmicrowave or mixed technoiogy to the switchboard
Packing
Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/roll.
Inner packing: Wooden reel, plastic reel, and paper reel.
Outer packing: Carton box, pull out box, pallet available.
Other packing available according to client's request
1. 8Cx7/0.20mm CCA
2. I.D:1.0mm PVC+rip cord
3.OD: 4.5mm
Product Structure
Model No. white Anti-theft Alarm Cable
Conductor Dimension22AWG or according to customer's request
Conductor MaterialOFC/TC/CCA/TCCA
Insulation 1. Water blocking swellable tape (optional)
2. HD-PE (High density polyethylene)
3. PVC
Number Of Cores 2 core/4core/6core/8core/10core
Shielding UTP/Polyester Tape/Al Foil
Ripcord yes or not
Drain wire yes or not
Jacket PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)
Color Different color is available
Operating temperature -20 ° C - +75 ° C
Service Life 20~25 years
Application
These cables are designed for installation signle alarm and alarmsystems.They allow the connection of contacts,detectors and sensors,infrred as well asmicrowave or mixed technoiogy to the switchboard
Packing
Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/roll.
Inner packing: Wooden reel, plastic reel, and paper reel.
Outer packing: Carton box, pull out box, pallet available.
Other packing available according to client's request
