Bluewhale is a high-tech company integrating R&D, production, sales and service in the fields of automobile, motorcycle intelligent networked products, intelligent cockpit and instrumentation. We had won the honorary title of “National High-tech Enterprise” and “Innovative Enterprises”.
Our R&D centers locate in Chongqing and Shenzhen. Our R&D team is a mature team with many years of experience in Tier 1 project development, strong collaborative development capabilities and rich experience in mass production.
We focus on the OEM market and overseas market and continuously innovate and create to become the industry leading Tier1 manufacturer.

About our solution:

SemiDrive X9 Chip

1.Chip computing power: 10K~200k DMlPS computing power；

6*ARM Cortex-A55+1*A55 core processing (hard isolation)；

2*ARM Cortex-R5 (hard isolation）；

2.Support multi-screen high-definition and high-frame rate independent display；

3.Support QNX/Linux/Android and other operating systems, one chip with multiple systems；

4.Efficient inter-core and inter-chip resource scheduling capabilities；

5.CDC vehicle scene, intelligent cockpit, multi-screen integration；

6.Products maintain hardware Pin to Pin compatibility and software compatibility；

7.Passed ISO 26262 ASIL B functional safety product certification；

8.AEC-Q100 reliability certification；

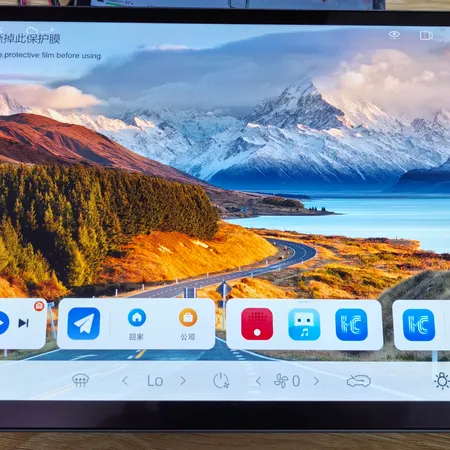

15.6 inch display

1. Resolution：1920*1080

2. Display full lamination process

3. Ultra-narrow border，Left and right black border 7.5mm，Lower black border 12.2mm，Screen ratio 90%

4. Thickness 13.75mm,Weight: about 1.75KG

5. Magnesium-aluminum alloy shell, good heat dissipation

6. Customized molds, detachable brackets, high vehicle platform utilization

8.8 inch digital cluster

1. Resolution：1280*480

2. Display full lamination process

3. Ultra-narrow border，Left and right black border 7.5mm，lower black border  12.2mm, screen ratio is 90%.

4. Thickness 13.75mm,Weight about 1.75KG

5. Customized molds, detachable brackets, high vehicle platform utilization

Head Unit

RAM：4~12GB(Optional)；
ROM：32~128GB（Optional）；

1.Operating system：RTOS+Android 10

2.Split one-to-two head unit, integrated instrument and IVI functions;OSUsing Android 10+QNX system, CPU uses CoreChi X9HP chip,MCU uses Cypress CYT2B77CA chip;

3.Support local multimedia (Bluetooth/USB music), video, picture viewing, system settings、3D car model, voice assistant, mobile phone interconnection, built-in DVR, DAB, DMS, A2B functions, etc.

Kindly reminder: The price will be based on project requirements, welcome further communicate with us.
