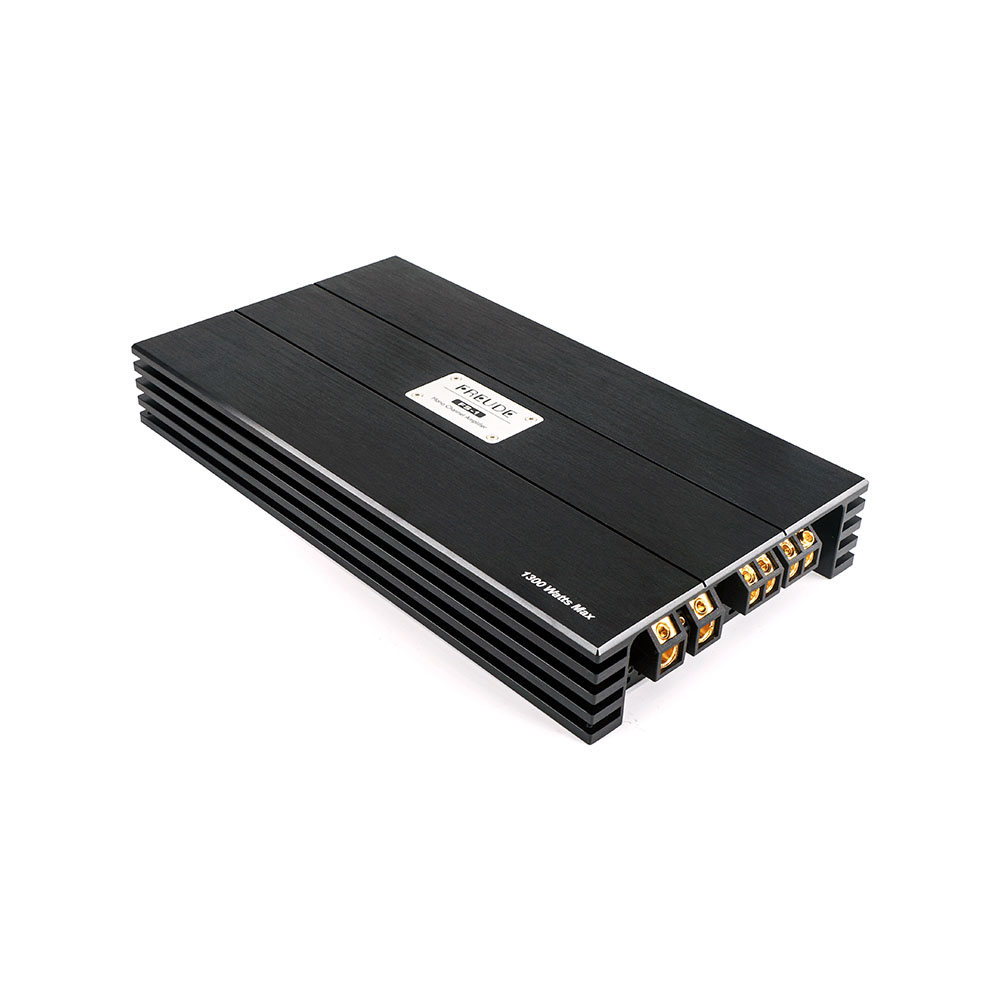

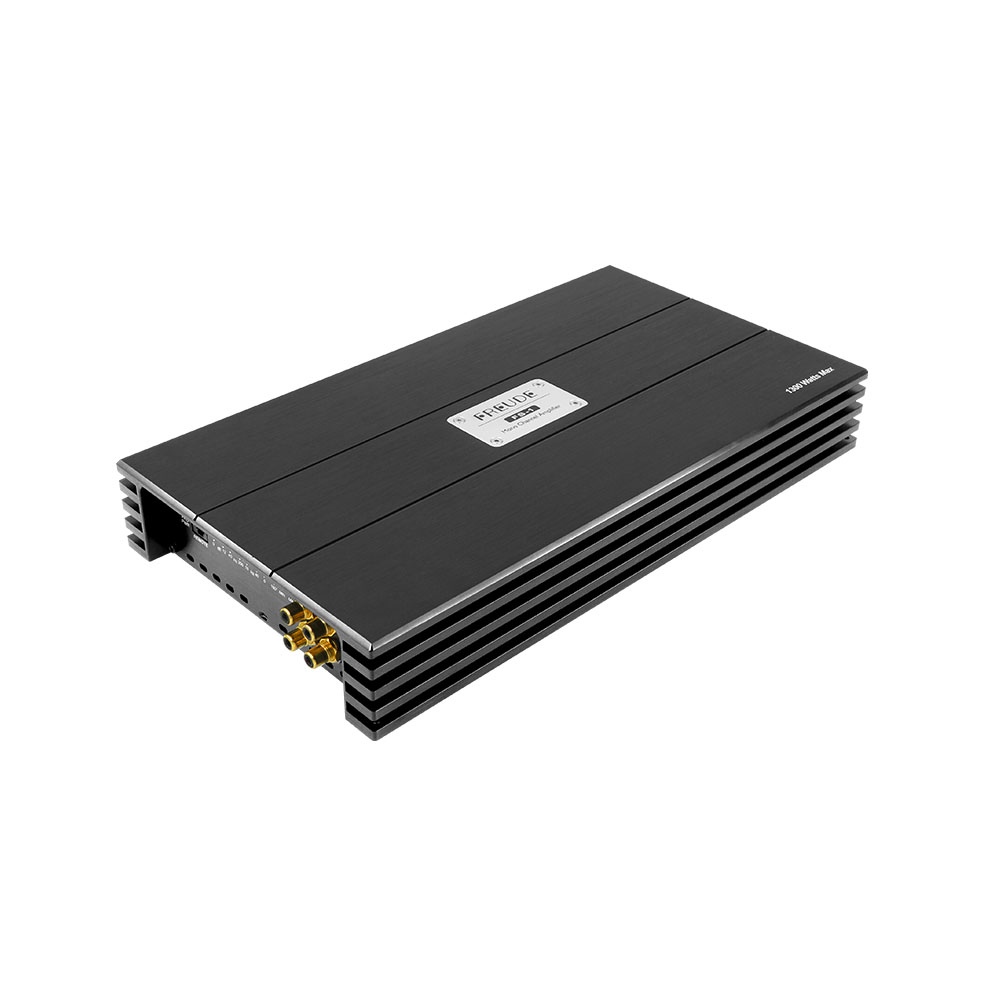

FS-1
Class D Mono Channel Amplifier
■ Class-D Power Amplifier
■ The PCB board is made of high-strength flame-retardant fiberglass material
■ Ultra-high power, capable of driving two subwoofers
■ Internal bridged design for increased output power
■ Gold-plated terminals, resistant to corrosion, oxidation, and durable for plugging and unplugging
■ Compact size, full aluminum body for excellent heat dissipation
■ Built-in voltage stabilizer to ensure internal voltage is unaffected by fluctuations in the car battery voltage
■ Multiple protections, suitable for various in-car usage environments
■ Can be connected to a remote control panel (control panel is an optional accessory)
| Model: | FS-1 |
| Type: | Class D Mono Channel Amplifier |
| Max Power @ 1Ω: | 3600 W |
| Nom Power @ 1Ω: | 1800 W |
| Max Power @ 2Ω: | 2400 W |
| Nom Power @ 2Ω: | 1200 W |

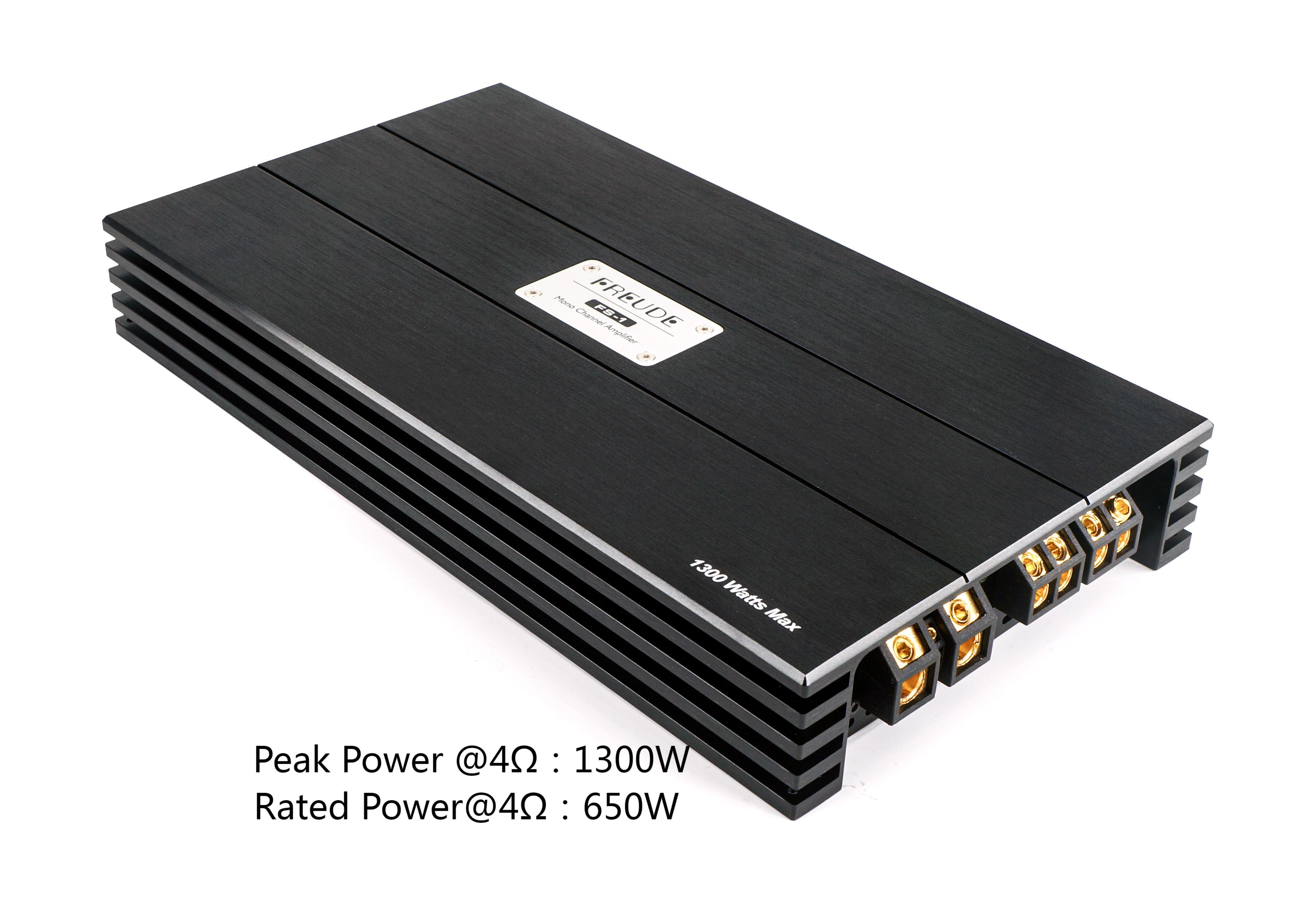

| Max Power @ 4Ω: | 1300 W |
| Nom Power @ 4Ω: | 650 W |
| Freq. Resp. Range: | 10 Hz - 200 Hz |
| Low Pass Point Adjustment Range: | 40 Hz - 200 Hz |
| Signal Noise Ratio: | >96 dB |
| Input Impedance: | 22k Ω |
| Input Sensitivity: | 150 mV - 3.2 V |
| Degree Of Loss Of Truth: | <0.05% |
| Power Supply Voltage Range: | 10 - 16 VDC |
| Net Weight: | 4.27 kg |
| Dimensions (LxWxH;mm): | 347 x 190 x 50 |
