Features
·The housing is made from V0 flame retardant PC materials.
·Ultra-small, thin and light screwless end cap.
·High performance, high efficiency, low THD.
·Innovative thermal management technology intelligently protects the life of the LED driver.
·Overheat, overvoltage, overload, short circuit protection and automatic recovery.
·Indoor office lighting, decorative lighting and commercial lighting.
·Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.

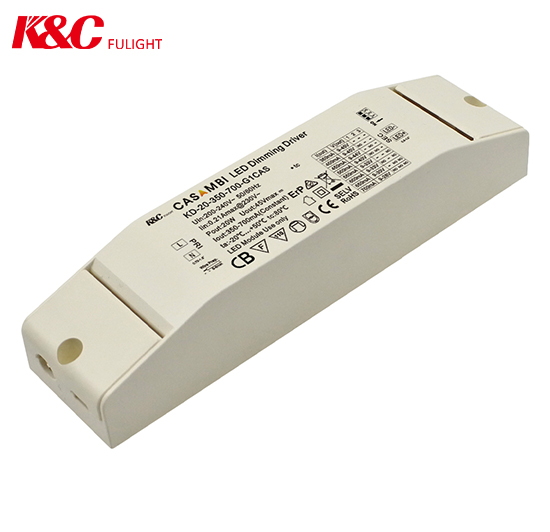

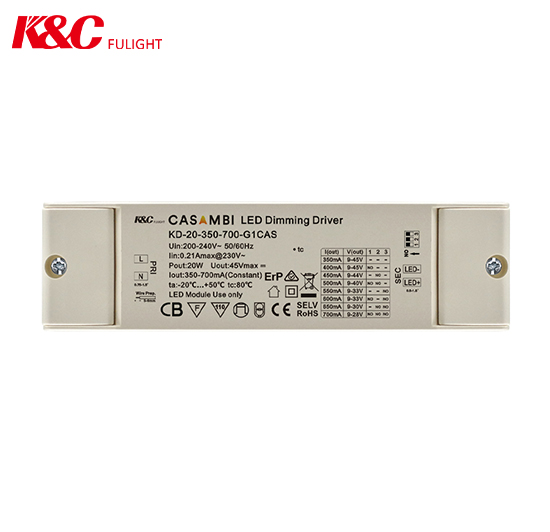

20W 350/400/450/500/550/600/650/700mA Casambi LED Dimming Driver
KD-20-350-700-G1CAS is a constant current output mode LED driver. The output current can be easily set via DIP switch.PWM digital dimming technology, presenting a perfect visual experience.This series of power supply adopts the advanced full range DC constant current dimming scheme, which can realize complete physical non-scintillation in the whole dimming range. It also has very good low-light performance, can create a very elegant low-light environment and switch the light when the gradient experience.
Technical Parameter
| Model | KD-20-350-700-G1CAS | ||
| Input | Efficiency | 85%@230VAC, Full load | |
| Voltage | 200VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | 0.95@230VAC,Full load | ||
| THD | <10%@230VAC, Full load | ||
| Current | 0.21Amax@230VAC, Full load | ||
| Inrush Current | Cold start,20A(twidth=10us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) | 350mA/9-42VDC/14.7W 400mA/9-42VDC/16.8W 450mA/9-42VDC/18.9W 500mA/9-40VDC/20W 550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W 650mA/9-30VDC/19.5W 700mA/9-28VDC/19.6W | |
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±7% | ||
| Standby Power | <0.5W | ||
| No load output voltage | 45VDC Max | ||
| Turn On Delay Time | <3s, at 230Vac | ||
| Function | Dimming Mode | Casambi | |
| Dimming Range | 0.3%-100% | ||
| Protection | No Load | The LED Driver will not be damaged. | |
| Short Circuit | No Output, recovers automatically after fault condition is removed | ||
| Over Load | Hiccup mode, recovers automatically after fault condition is removed | ||
| Safety | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| Other | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 80℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:60℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >100,000 times | ||
| Packing Size | 375*330*180mm(L*W*H), 6Kg/Carton/50PCS | ||

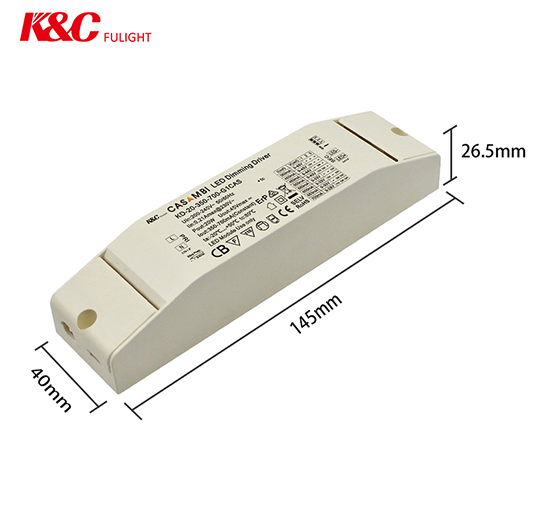

| Dimensions | 145*40*26.5mm(L*W*H) | ||
| G.W | 107g | ||
