Clear LED panel Series
美元 $20.00 - 美元 $80.00
生產所需時間:
30 日
運送方式:
BY SEA
型號編號:
DWCl3012036
Input Voltage:
AC200-240V, 50/60HZ
Power:
36W
LED Source:
SMD2835
Color Temp:
3000K/4000K/5700K
CRI:
Ra>80
Optional:
0-10V dimming, Dali dimming
MOQ:
300
Certificate:
CE,RoHS,CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
描述
聯絡供應商
描述

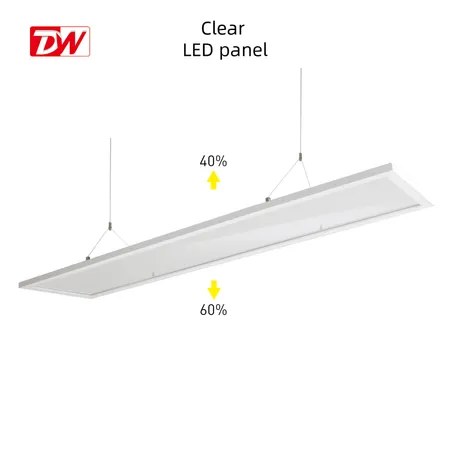

Clear LED panel Series
Thanks for choosing Dolight’s Clear LED panel series.With transparent cover, our Clear LED panel has an elegant appearance to make a space refifined and smart,perfectly adapted to fashion or design needs. When light is on, it looks like a calm bright fairy.Even when light is off, it is a piece of perfect crystal decoration. 30% up lighting to offer people great sense of security. 70% uniform light distribution satisfifies people’s need in lighting.
◈ FEATURES
• Elegant transparent design,
• Up/Down lighting, up 40%, down 60%,
• High efficiency up to 100lm/W, 120lm/W,
• Uniform and soft lighting,
• UGR<19, eyes friendly version optional,
• Strong aluminium body,
• Helvar sensor built in;
INSTALLATION TYPE
1.Driver box suspension kits;
2.Base suspension kits.
◈ SPECIFICATION
Up/Down Clear panel | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | Size | 295*1195*17.5mm; |
2 | LED | High luminous flflux SMD LED |
3 | Luminous Efficiency | 100 Lm/W |
4 | CCT | 3000K-5700K (warm white, natural white, cool white) |
5 | CRI | ≥80 |
6 | Beam Angle | 120° |
7 | LED Lifespan | ≥30000 Hours |
Electrical Parameters | ||
8 | Driver Input Voltage | AC220-240V /50-60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
General Parameters | ||
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Suspension |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |
◈ SIZE
Efficiency | Model No. | Wattage | Luminous flux | CRI | UGR | Dimension |
100lm/W | DWCL3012036 | 36W | 3600lm | 80Ra | <22/<19 | 295x1195x17.5mm |
DWCL3015045 | 45W | 45000lm | 80Ra | <22/<19 | 295x1495x17.5mm | |
120lm/W | DWCL3012036B | 36W | 4320lm | 80Ra | <22/<19 | 295x1195x17.5mm |
DWCL3015045B | 45W | 5400lm | 80Ra | <22/<19 | 295x1495x17.5mm | |
◈ APPLICATION
♦ Showrooms
♦ Boardrooms, offices, corridors
♦ Retail outlets
♦ Hospitals
♦ Hotels, motels
