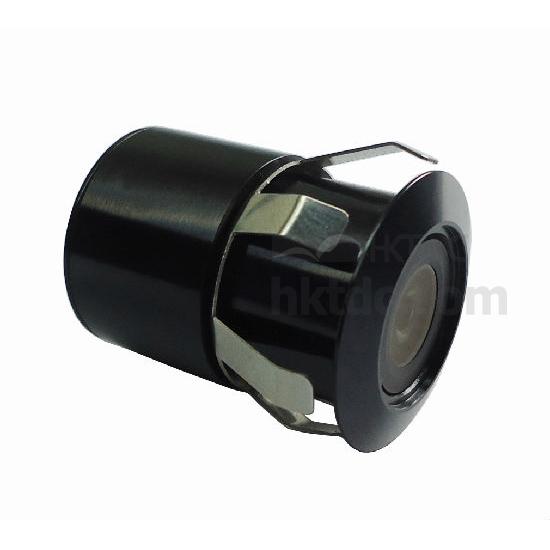

Color CMOS Rear View Camera

森平科技有限公司

生產所需時間:

7 日

產品型號:

TR6XXN/P-B

品牌名稱:

SENPING or OEM

尺寸:

23mm (R) x 34mm (H)

港口:

Shenzhen

付款方式:

T/T, Western Union

最低訂購數量:

1 piece

描述

聯絡供應商

Product features:

CMOS sensor camera in mini size.
Suitable for front view/back view.
PAL/NTSC, normal/mirror image optional.
With or without 3 color parking aid lines optional.
Embedded design for more flexible installation.
Specification model: TR611N/P-B; TR634N/P-B.
CHIP BRAND: 1/4" CMOS sensor (pixel); 1/4" CMOS sensor (MT9V136).
Effective pixels: PAL: 648 (H) x 488 (V); NTSC: 648 (H) x 488 (V); PAL: 720 (H) x 576 (V); NTSC: 720 (H) x 480 (V).
System: PAL/NTSC.
Resolution: 380 TVL; 480 TVL.
Synchronic system: internal.
Minimum illumination: 2.0 lux/F2.0; 1.0 lux/F2.0.
S/N ratio (AGC off): 48dB.
White balance: ATW.
Gamma correction: 0.45.
Electronic shutter: PAL: 1/50-1/100,000s; NTSC: 1/60-1/100,000.
Gain control: auto.
Back light compensation: on.
Lens type: 1.9mm/F2.0.
Lens angle: 150°.
Video output: 1 VPP, 75 ohm.
Waterproof rate: IP68.
Parking guide line: without/with 3 color parking guide lines.
Operation temperature: -30~75°C (RH 95% max.).
Supply voltage: DC 6-16V.
Power consumption: 0.5W (max.); 0.7W (max.).
Dimension: 23mm (R) x 34mm (H).
Weight (g): 40g.
