Featured here is a dual channel professional curved screen edge blending processor. It was designed for sophisticated edge blending as well as image warping, stacking, projection mapping, irregular video wall and passive 3D, etc. User can replace high end and high cost projector with low cost projector to get the same performance.

Features:

• Professional dual channel curved screen edge blending processor.

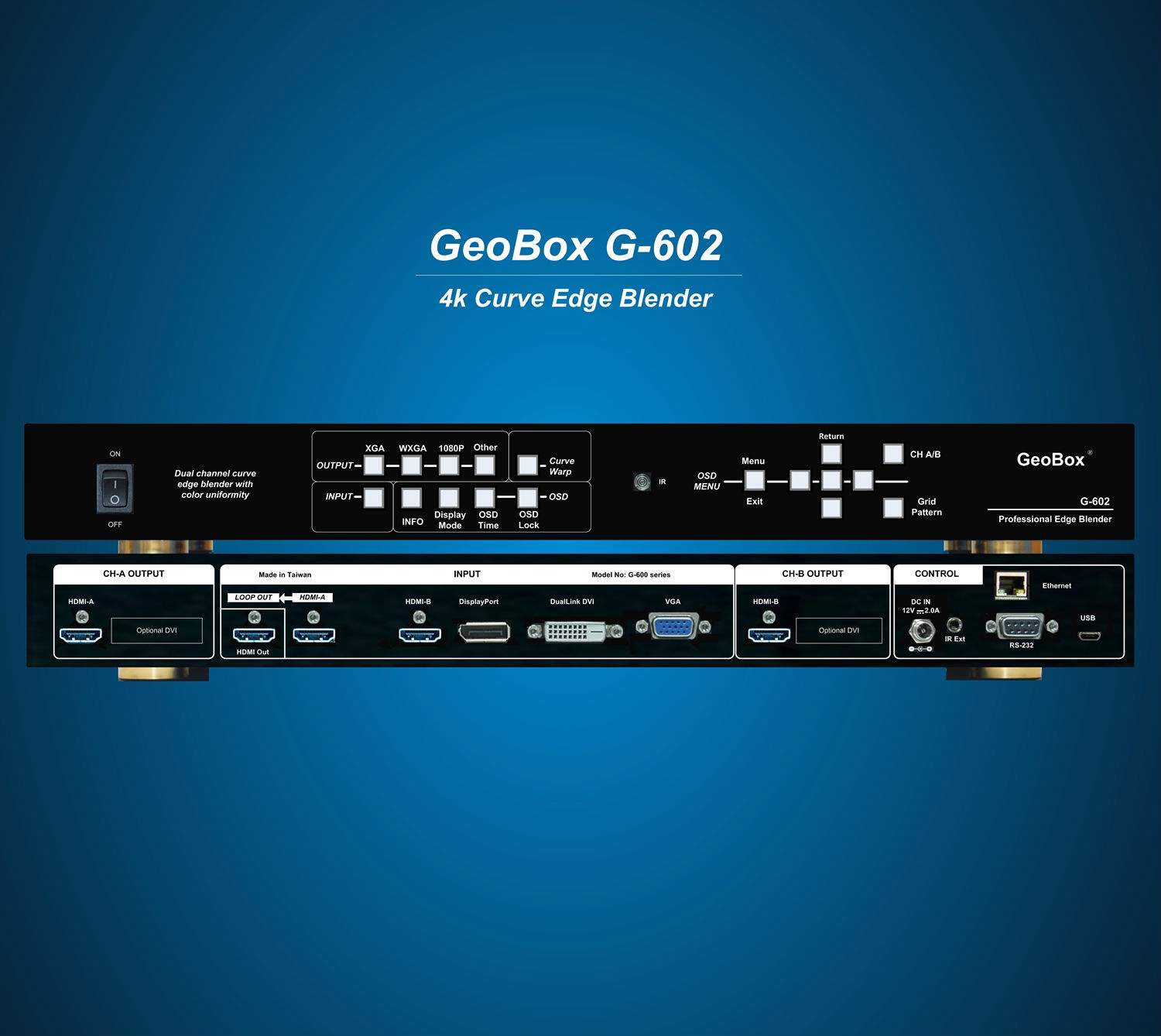

• I/O: 5 inputs (2x HDMI, 1x DP, 1x DVI-I, 1x VGA) and 2 outputs: 2x HDMI.
• Max input resolution: 4k/2k @30Hz, 2560x1600 and 3840x1080 @60Hz.
• Max output resolution: 1920x1200 @60Hz.

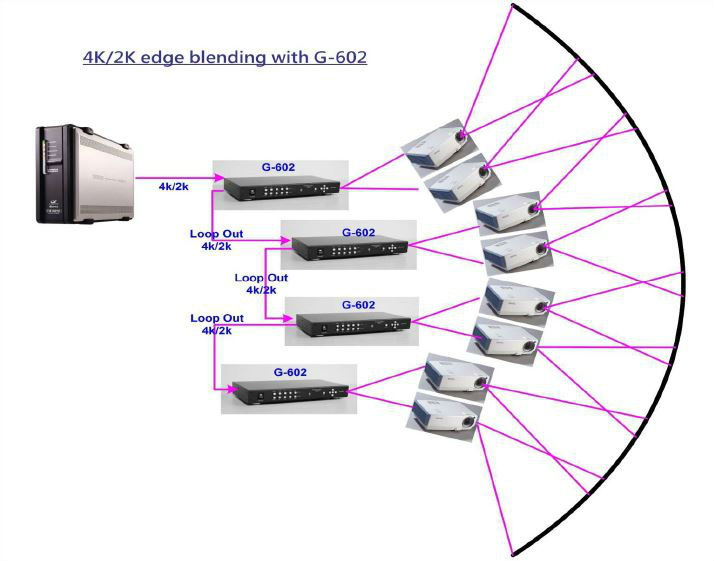

• Loop out: 4K/2K raw signal loop out for daisy chain connection, no HDMI splitter is required.
• Projector can be controller: Max 2. cascaded up to 15x15 from single signal source.
• Processor: 10-bits high end video processor with 3D motion adaptive de-interlace, low angle smooth algorithm, 3:2/2:2 film mode processing.
• Image warp and rotation: image warp, 4 corner alignment and image rotation up to 35〫

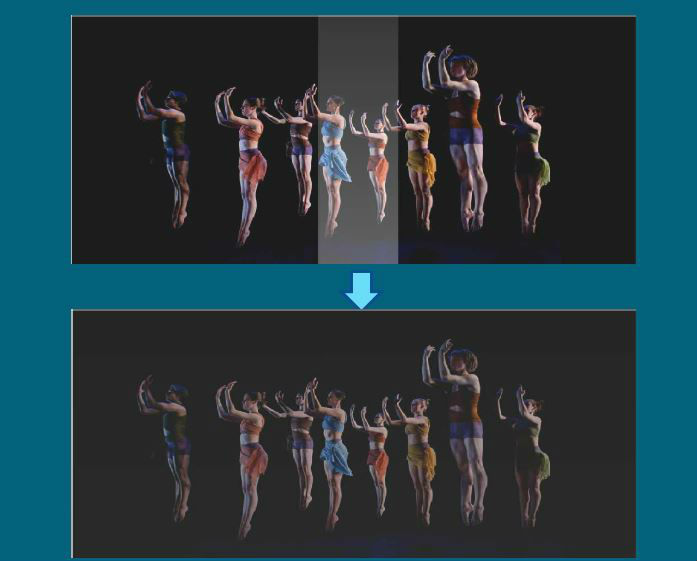

• Curved edge blending: professional edge blending for flat, curved 360 degrees and irregular curve

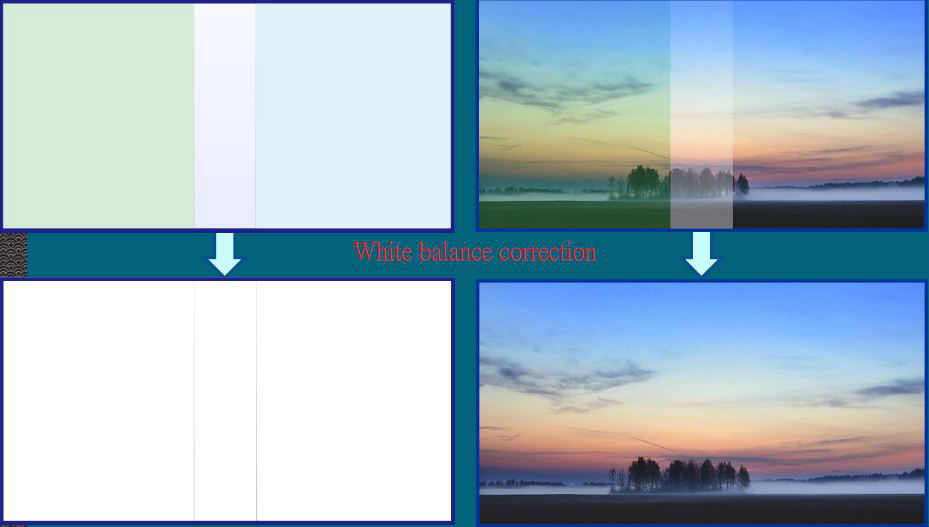

• Color matching: with parameters for white balance, overlap area gamma / gain and offset fine-tune, non-overlap area black level uplift and selected area color uniformity adjustment.
• Aspect ratio: flexible aspect ratio adjustment and 16:9 / 2.35:1 conversion.
• Video wall: built-in video wall control function to split, crop, magnify, set overlap pixels and assign location for each projector.
• Active 3D: convert blue ray 1080p @24Hz frame packed, Nvidia 1080p @120Hz 3D for active (shutter) 3D system.
• Passive 3D: support frame packed, side by side, top-bottom, frame sequential, 3840x1080 side by side and Sony 1080i frame packed for passive 3D display.
• Control: full function front panel keypads and remote controller, USB OTG, RS232 and Ethernet.
• PC software tool: available for more sophisticated operation
• Ideal for image warping, stacking, projection mapping, irregular video wall and passive 3D, etc.
• Designed to replace high end and high cost projector with low cost projector to get the same performance.

Major functions and applications:

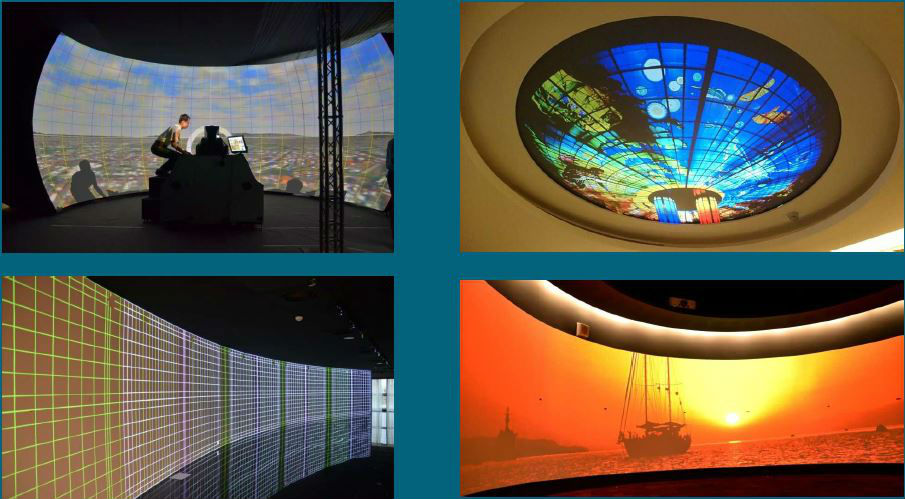

• Curved and flat screen edge blending.
• Projection mapping.
• Image warp and stacking.
• Format conversion.
• Scaler switcher.
• Passive 3D projection.
• Image flip and rotation.
• Edge mask.
• Irregular video wall.
• Pincushion and barrel adjustment.
• Image cropping and resizing.

Physical and environmental:

• Working temperature: 45〫C.
• Weight: 2.3kg.
• Power: 100-240V, 16W.
• CE, FCC, RoHs compliant.
• Warranty: 3 years.
