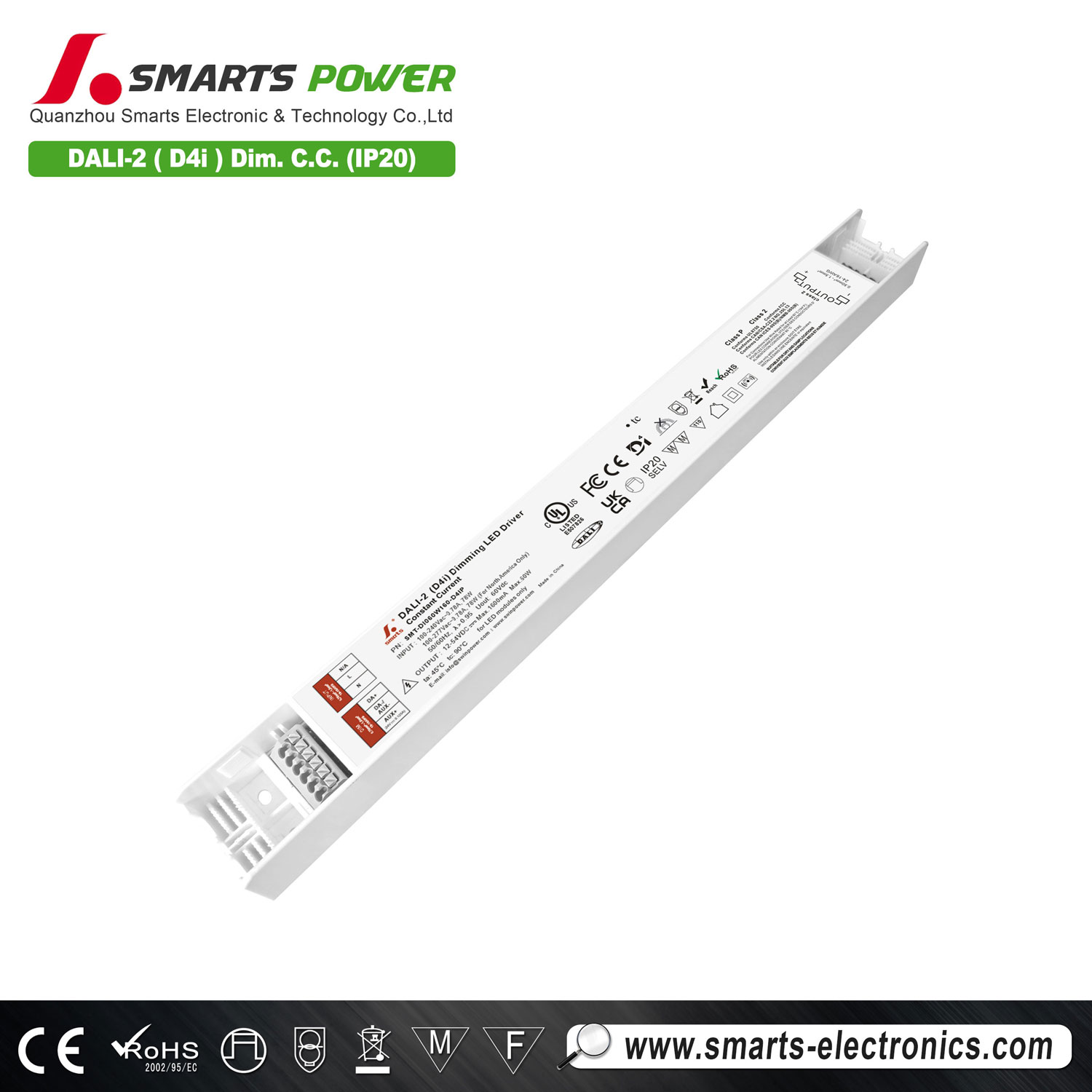

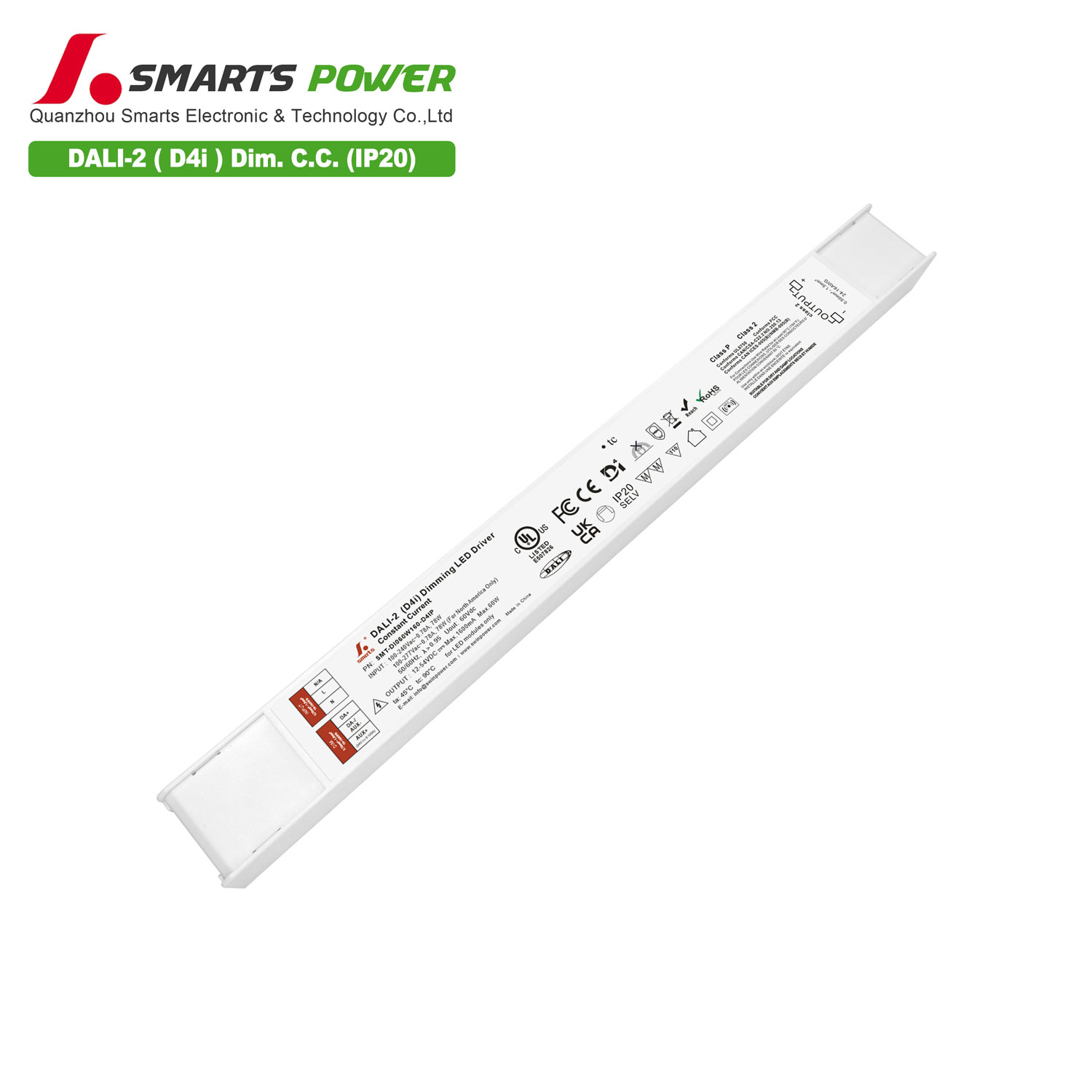

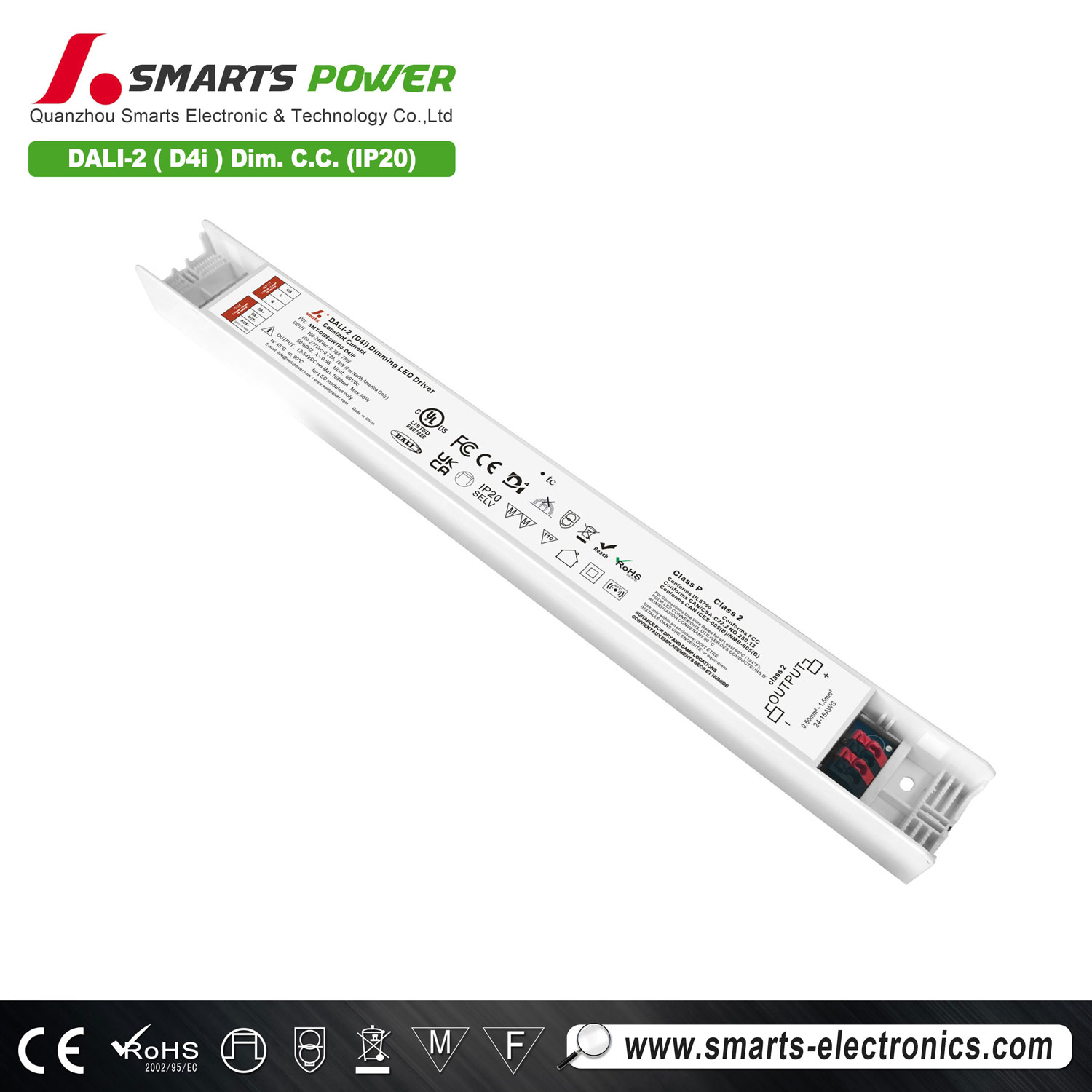

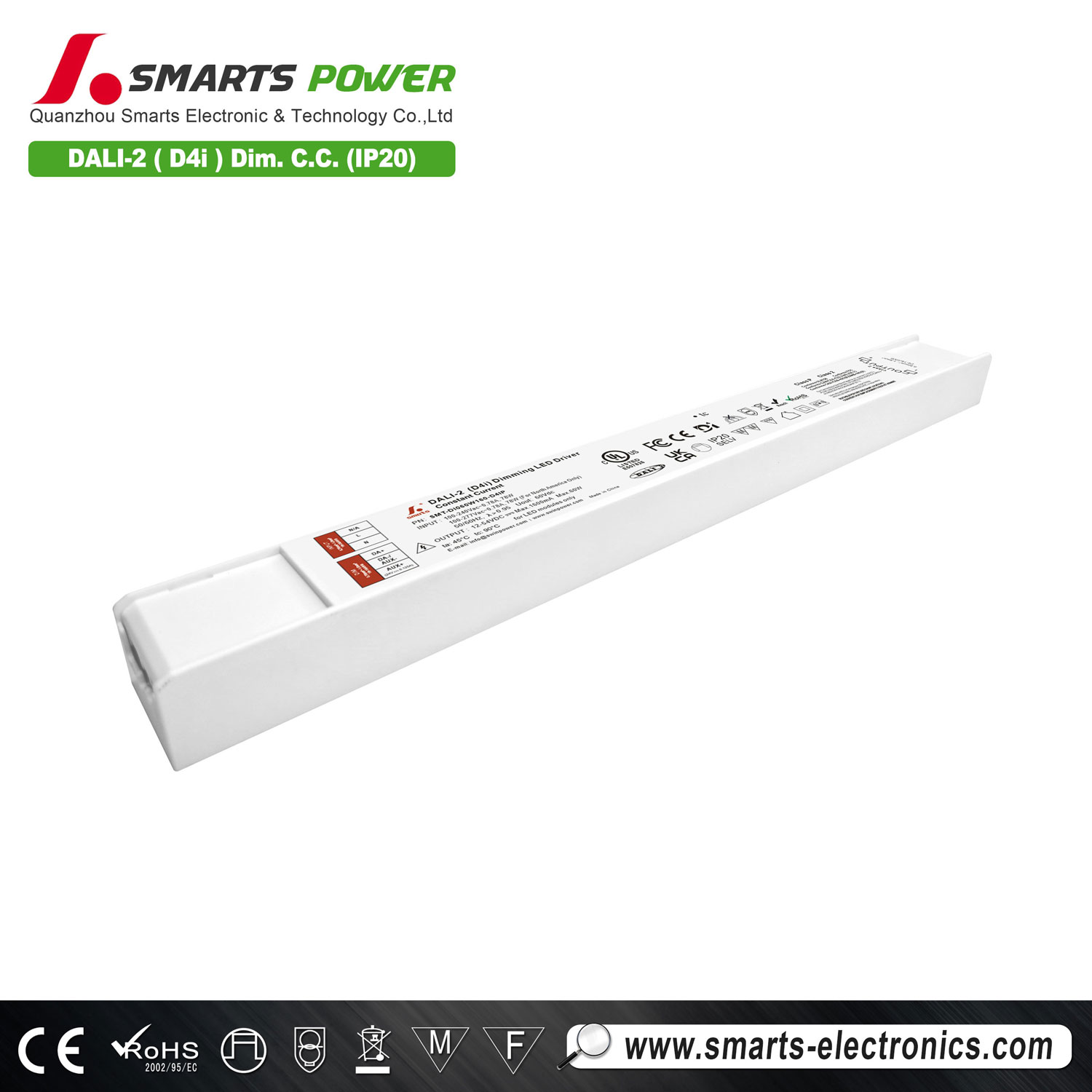

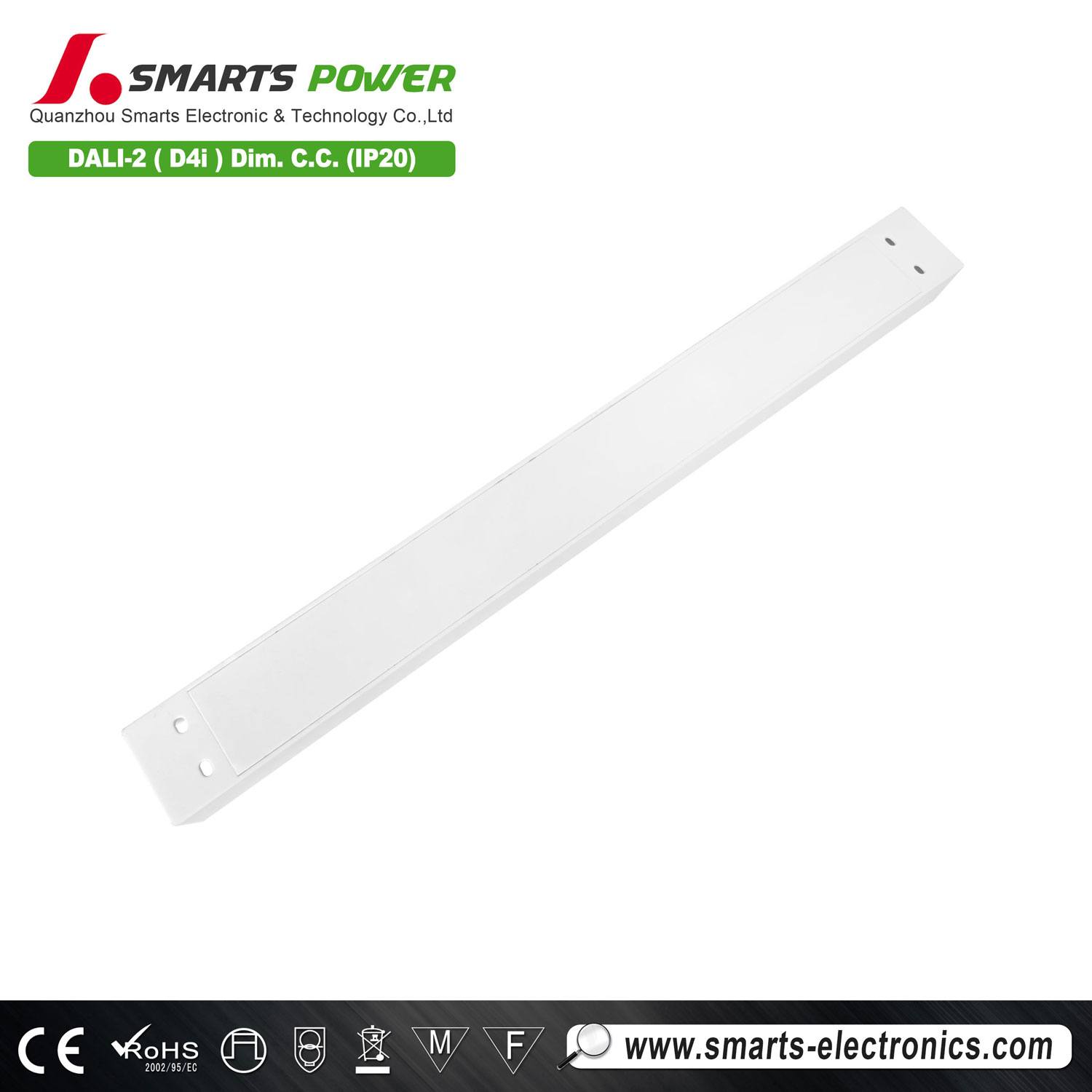

DALI Dry Contact Module SWITCH Plastic Case 60w LED driver for DALI-2 Controller System LED Driver Input 1600mA DALI Bus

Output:

Constant Current

Range:

100-277VAC

PFC design:

Built-in active PFC function

Efficiency:

Up to 89%

Protections:

Short circuit / Over load / Over temperature / Over voltage

Heat dissipation:

Cooling by free air convection

Waterproof performance:

IP20(EU); For dry and damp location(US)

Dimming function:

DALI dimming

Dimming range:

0.3%-100%

描述

聯絡供應商

Model		SMT-DI060W160-D4IP-YT
Certificate		UL/FCC/CE /ClassP/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA
Output	Rated current	160mA-1600mA
	DC Voltage	12-54VDC
	No-load voltage	60Vmax
	Rated power	60Wmax
	Voltage Tolerance	Output current ± 10mA for ≤ 300mA, ± 20mA for ≥ 300mA, and ± 30mA for ≥ 1000mA
	Line Regulation	<0.5%
	Load Regulation	<0.5%
Input	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor (Typ.)	≥0.98@120VAC 60Hz ≥0.96@230VAC 50HZ ≥0.92@277VAC 60HZ
	No load power (Max)	<1.5W
	Standby power (Max)	<0.5W
	THD(Typ.) @ full load	≤15%
	Efficiency @ full load	88%@120VAC 60Hz 89%@230VAC 50HZ 89%@277VAC 60HZ
	AC Current (Max.)	0.65A
	Inrush Current (Typ.)	28.7A, 204us@50%Ipeak@120V 55.2A, 98us@50%Ipeak@230V
	Inrush Current (Typ.)	66.0A, 220us@50%Ipeak@2770V
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over voltage	Hiccup or constant power mode, reboots automatically after fault condition is removed
	Over temperature	Ambient temp. over 50± 5℃, output current will be reduced to 50%;
		Ambient temp.Over 40 ± 5℃,recovers automatically.
		Ambient temp.over 60 ± 5℃, output current will be reduced to 0%;
		Ambient temp.Over 40 ± 5℃,recovers automatically.
Environment	Working TEMP	-40~+45℃ (see below derating curve)
	Working Humidity	20 -90%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety & EMC	Safety standards	EN61347-1 EN61347-2-13(EU) & UL8750 (US)
	Withstand voltage	I/P-O/P:3.75KVAC
	Strobe test standard	IEEE 1789 Flicker free
	lightning surge	AC Power Line:Differential Mode 2KV,
	Isolation resistance	I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH
	EMC Emission	EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US)
Others	Net Weight	0.38KG
	Dimension	34234.824.1mm (LWH)
	Packing	355270195mm 20pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature.
	2. To extend the driver's using life, please reduce the loading at lower input voltage .
	3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10.
