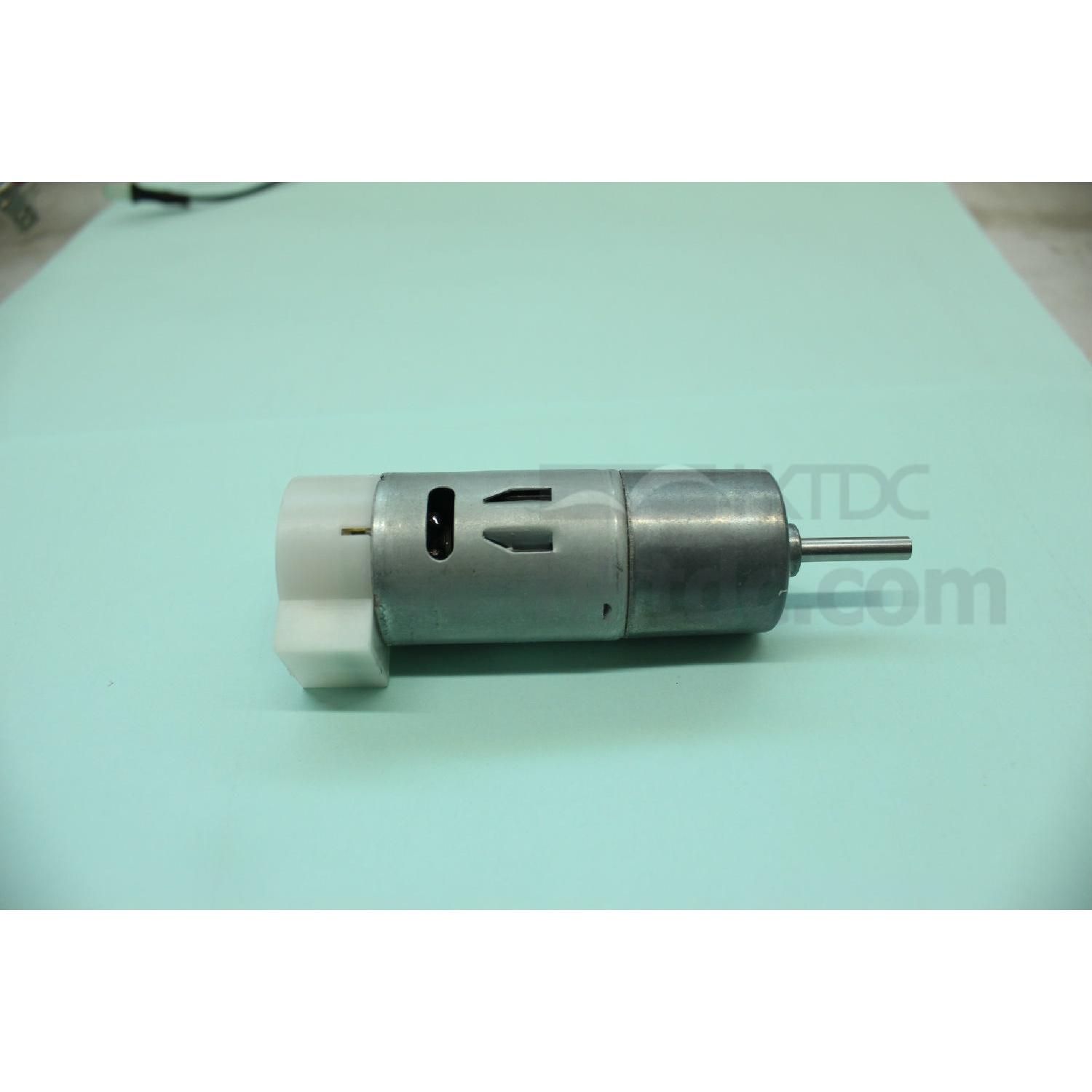

DC Motor
生產所需時間:
60 日
產品型號:
KC390
港口:
Hong Kong
是否可訂造:
是
結構:
永磁式
種類:
微型電機
描述
聯絡供應商
描述
- Applications: Children Ride-on Car, Vending Machine, Power Tools, Office Automation Equipment and more
- Dimensions (D x L x F): 27.5 x 69.5 x46.5mm
- Shaft: 2.3(D)mm
- Shaft length: 57, 62, 64.5 and 69.5mm
- Model: KC390SHP-3550
- Operating range: 3.0 to 12.0V
- Nominal 6.0V
- At free load:
- Speed: 9000rpm
- Current: 0.40A
- At max. efficiency:
- Speed: 7611rpm
- Current: 2.191A
- Torque: 109.92 g-cm
- Stall torque: 712g-cm
- Operating range: 4.5 to 24.0V
- Nominal 12.0V
- At free load:
- Speed: 6200rpm
- Current: 0.110A
- At max. efficiency:
- Speed: 5249rpm
- Current: 0.607A
- Torque: 84.37 g-cm
- Stall torque: 550g-cm
- For other requirements, please send us your inquiries including specifications
