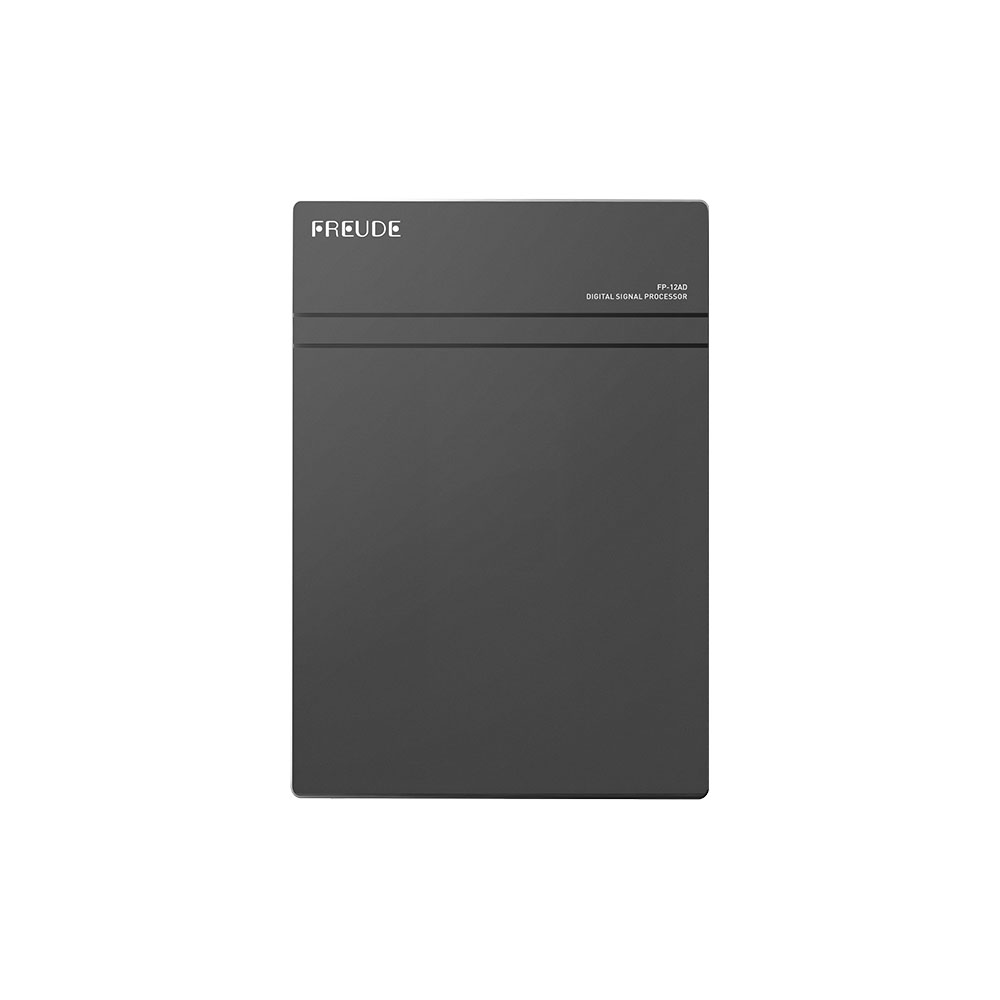

FP-12AD

10 ch DSP with 12 ch Amplifier

■ 10 high-level inputs, 2 low-level inputs, optical, and Bluetooth 5.1 inputs
■ 10 low-level outputs, 12 high-level outputs
■ 31-band EQ adjustment
■ Class-AB + Class-D amplifier
■ High-quality electronic components
■ Full aluminum body for excellent heat dissipation
■ Computer tuning
■ Plug & play, lossless installation

Model:	FP-12AD
Type:	10 ch DSP with 12 ch Amplifier
Power:	DC 9 V～16 V
Input Signal Type:	10 ch high level, 2 ch Low Level, Optical Fibre, Digital BT 5.1
Dynamic Range:	≥96 dB
S/N:	≥96 dB
T.H.D.:	≤0.01%
Frequency Response:	20 Hz ~ 20k Hz
Decoding Capability:	24 bit / 96k Hz
Max Power:	50 W x 8 ch + 100 W x 4 ch
Nom Power:	25 W x 8 ch + 50 W x 4 ch
Output Signal Type:	10 ch Low Level Output, 12 ch High Level Output
Output Signal EQ:	31 Levels EQ
Net Weight:	1.48 kg
Dimension(LxWxH;mm):	220 x 157 x 45
