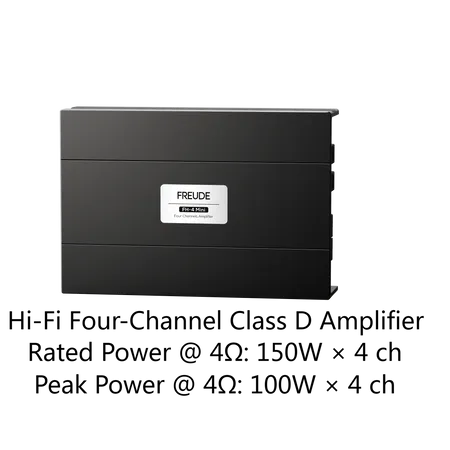

FH-4 Mini

Class D 4 Channels Amplifier

■ 4-channel 150W output
■ Class-D amplifier topology for high-efficiency operation
■ Supports high-pass, low-pass filter adjustments, and bypass adjustments
■ Closed-loop power supply design, output power unaffected by supply voltage
■ Compact size, full aluminum body for excellent heat dissipation
■ Comprehensive protection features for safety and stability
■ Advanced anti-reverse power supply design to prevent damage from incorrect wiring
■ Built-in voltage stabilizer to ensure internal circuitry is unaffected by fluctuations in the car battery voltage

Model: FH-4 Mini Type: Class D Four Channels Amplifier Max Power @ 4Ω: 150 W x 4 ch Nom Power @ 4Ω: 100 W x 4 ch Operating Voltage: 8 - 18 VDC Frequency Response: 20 Hz - 20k Hz Low Pass Frequency: 40 Hz - 250 Hz High Pass Frequency: 40 Hz - 250 Hz Signal Noise Ratio: 101 dB Distortion Degree(T.H.D.): ≤0.01% Input Sensitivity: 0.5 V - 2 V Input Impedance: 10k Ω Net Weight: 1.2 kg Dimensions (LxWxH;mm): 206 x 140 x 48Model: FH-4 Mini Type: Class D Four Channels Amplifier Max Power @ 4Ω: 150 W x 4 ch Nom Power @ 4Ω: 100 W x 4 ch Operating Voltage: 8 - 18 VDC Frequency Response: 20 Hz - 20k Hz Low Pass Frequency: 40 Hz - 250 Hz High Pass Frequency: 40 Hz - 250 Hz Signal Noise Ratio: 101 dB Distortion Degree(T.H.D.): ≤0.01% Input Sensitivity: 0.5 V - 2 V Input Impedance: 10k Ω Net Weight: 1.2 kg Dimensions (LxWxH;mm): 206 x 140 x 48 Model: FH-4 Mini Type: Class D Four Channels Amplifier Max Power @ 4Ω: 150 W x 4 ch Nom Power @ 4Ω: 100 W x 4 ch Operating Voltage: 8 - 18 VDC Frequency Response: 20 Hz - 20k Hz Low Pass Frequency: 40 Hz - 250 Hz High Pass Frequency: 40 Hz - 250 Hz Signal Noise Ratio: 101 dB Distortion Degree(T.H.D.): ≤0.01% Input Sensitivity: 0.5 V - 2 V Input Impedance: 10k Ω Net Weight: 1.2 kg Dimensions (LxWxH;mm): 206 x 140 x 48

Model:	FH-4 Mini
Type:	Class D Four Channels Amplifier
Max Power @ 4Ω:	150 W x 4 ch
Nom Power @ 4Ω:	100 W x 4 ch
Operating Voltage:	8 - 18 VDC
Frequency Response:	20 Hz - 20k Hz
Low Pass Frequency:	40 Hz - 250 Hz
High Pass Frequency:	40 Hz - 250 Hz
Signal Noise Ratio:	101 dB
Distortion Degree(T.H.D.):	≤0.01%
Input Sensitivity:	0.5 V - 2 V
Input Impedance:	10k Ω
Net Weight:	1.2 kg
Dimensions (LxWxH;mm):	206 x 140 x 48
