Digital AC Clamp Meter Backlight Clamp Light
生產所需時間:
7 日
產品型號:
CM-2030
品牌名稱:
VICI
顏色:
Orange and Black
尺寸:
270x123x50mm
港口:
Shenzhen
付款方式:
T/T, Western Union
最低訂購數量:
30
是否可訂造:
是
測量範圍:
DCV/ACV/ACA/RESISTANCE/DIODETEST/DUTY CYCLE TEST
顯示方式:
數字
描述
聯絡供應商
描述

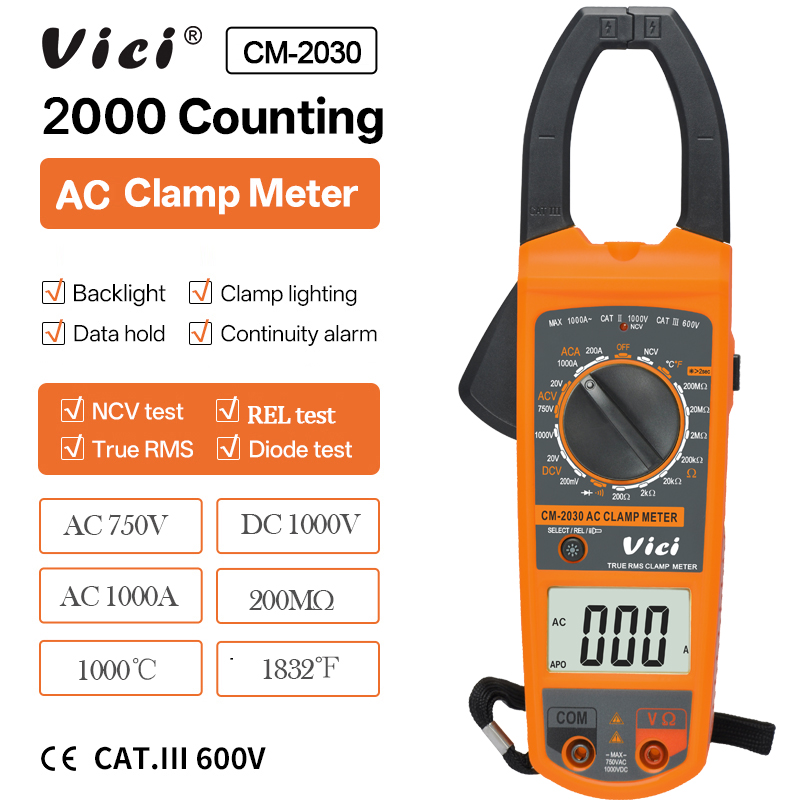

- 3 1/2 digits digital ac clamp meter backlight clamp light
- 1. Clamp opens 52mm;
- 2. Large LCD display makes reading clear;
- 3. Full function protection, strong anti-interferential performance;
- 4. CE standard design, improves the safety of the test;
- 5. Data hold;
- 6. Clamp light and backlight display.
- Technical data
- DCV:1000V ±(1.0%+3)
- ACV:750V ±(1.5%+5)
- ACA: 200A/1000A ±(2.0%+5)
- Resistance: 200Ω/ 2kΩ/ 20kΩ/ 200kΩ ±(1.0%+3)
- Continuity test:Less than 30Ω±10Ω
- Low battery indicato:rApprox. less than 7.5 V
- Data hold
- Function protection
- Clamp light
- Backlight display
- Input impedance:10MΩ
- Sampling rate:3 times/s
- AC frequency response:Current 50-60Hz/ voltage 50-400Hz
- Operation method:Manual range
- Max display:1999
- Clamp opens:52mm
- Battery:9V (6F22)
General Characteristic:
- Meter color:Orange and Black
- Meter weight:About 280g (including battery)
- Meter size:270×123×50mm
- Standard accessory:Test leads, battery, manual, TP01 temperature probe
- Standard packing:Gift box
- Carton size:55.8x30.5x40CM
- Standard QTY per carton:30pcs
- G.W per carton:16.8KG
