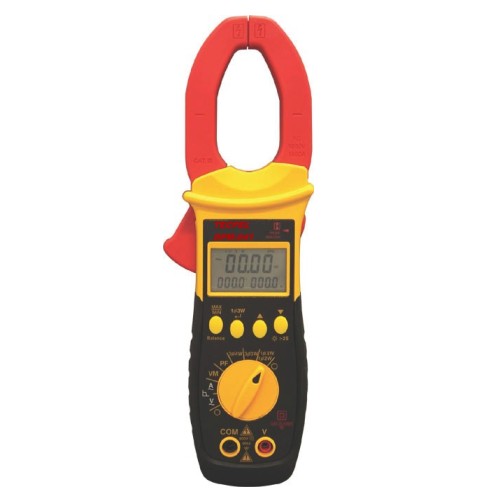

• AC 1000A true RMS clamp on power meter.

Features:

• Power measure of active power (KW), reactive power (KVAR), apparent power (KVA), power factor (PF).
• PF (cos O) for 3O4W, 3O3W, 1O2W, 1O3W.
• Triple display: KW + V + A easy to read.
• AC current up to 1000A, AC voltage up to 600V.
• INRUSH (100mS), HOLD and PEAK functions.
• Max and min recorded functions.
• Auto power off (10 min), black-light.
• Dimensions of conductor: O35mm.
• EN61010-1 Approval.
• Over-voltage category III 1000.

Specifications:

• AC 1000A true RMS clamp on model: DPM-041.
• CE mark safety approval.
• AC current (true RMS).
• Range: 0.0 to 600.0A, 600A to 1000A.
• Resolution: 0.1A/1A.
• Accuracy: ± (1.5% rdg + 10dgts) on 50Hz to 60Hz.
• ± (3.5% rdg + 10dgts) on 45Hz to 400Hz.
• AC voltage (true RMS).
• Range: 0.0 to 600.0V.
• Resolution: 0.1V.
• Accuracy: ± (1% rdg + 5dgts) on 20Hz to 100Hz.
• ± (6% rdg + 5dgts) on 100Hz to 400Hz.
• Input impedance: 1MΩ.
• Power measurement accuracy.
• To make sure measuring accuracy, clamp the jaw several times to align the contact surface in place to get the optimal measuring results before you take measurement.
• Single phase or three phase load with sine wave input at 50/60Hz.

Measurement range:

• Effective measurement current range: 4 to 1000A.
• Effective measurement current range: 80 to 600V.
• Power factor (PF).
• Resolution: 0.001.

Accuracy:

• ± (3.0% rdg + 0.02) at 1.000 > PF ?0.500.
• ± (5.0% rdg + 0.02) at 0.500 > PF ?0.200.
• ± (10.0% rdg + 0.02) at 0.200 > PF ?0.000.
• Active power (KW).
• Resolution: 0.01/0.1KW.
• Apparent power (KVA).
• Resolution: 0.01/0.1KVA.
• Reactive power (KVAR).
• Resolution: 0.01/0.1KVAR.
• Frequency.
• Range: 20.0 to 400.0Hz.
• Resolution: 0.1Hz.
• Accuracy: ± (0.5% rdg + 5dgts).

Sensitivity:

• Voltage >5V rms.
• Current >5A rms on 20Hz to 100Hz.
• Current >10A rms on 100Hz to 400Hz.
• Certificate: CE.
