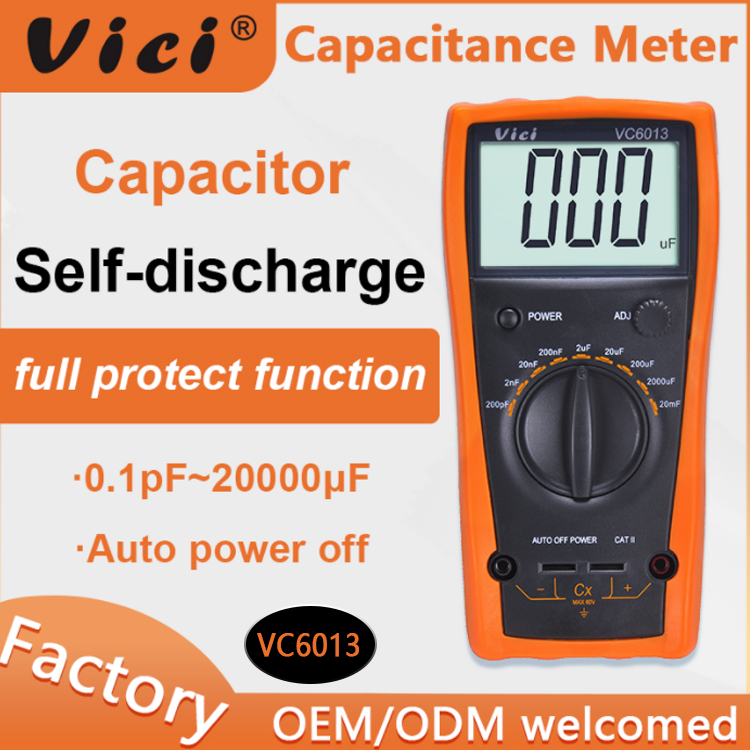

Digital Capacitance meter VC6013

Features:
1.New type holster, streamline design;
2.Large LCD makes the reading clearly;
3.Strong antimagnetic and anti-jamming performance;
4.full protect function, capacitor with the function of self discharge;
6.Unit symbol display, easy to operate.
7.CE certified, OEM available.

Test range:

• Capacitance:200pF/2nF/20nF/200nF/2uF/20uF/200uF/2000uF/20mF
• Accuracy: ±(0.5%+1)

Special functions:

• Low battery indication:Approx. less than 7.5V
• capacitor discharge protect
• Auto power off:It will power down about 30 minutes if no any measure.
• Function protect
• Anti-shock protect
• Sampling rate:3times/s
• Operation way:Manual range
• Max. display:1999
• LCD size:65×41mm
• Battery:9V (6F22)
• Power dissipation:Quiescent current approx. 3mA

General characteristic:

• Color:Orange and Grey
• Weight:290g（including battery）
• Meter size:185×93×35mm
• Standard accessory:Test leads, battery, manual
• Packing:Gift box
• Standard packing per carton:30pcs
• Carton size:45.5×32.5×43.5cm
• Standard G.W per carton:17kg
