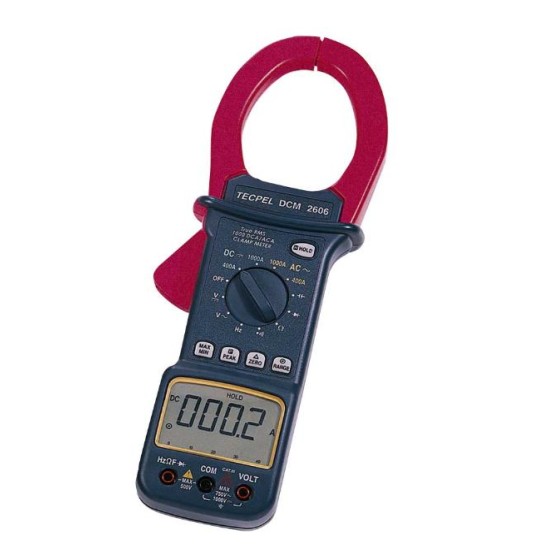

DCM-2606 clamp meter - features:
- 1000A Amp AC/DC true R.M.S.
- 3 3/4 digit display with bargraph.
- AC/DC current up to 1000A.
- AC voltage up to 750V.
- DC voltage up to 1000V.
- Display hold function.
- True-RMS reading.
- Diode test.
- Carrying case.
- Audible continuity test.
- Over range indication.
- Frequency up to 400kHz.
- Capacitance measurement.
- Clamp meter resistance up to 40m Ohm.
- Relative mode to read offset values (zero △key).
- Peak hold for transient measurements.
- Max/min recording mode model: DCM 2606.
- Confirm to the IEC-1010-1, UL1244/UL3111, CE standard.
- Hand guard protection.
- DC voltage ranges: 400mV, 4V, 40V, 400V, 1000V, +/- (0.5%+1dgt).
- AC voltage ranges: true RMS 400mV, 4V, 40V, 400V,7 50V, +/- (1.5%+4dgts).
- AC current ranges: true RMS 400A, 1000A,+/- (1.5%+5dgts).
- DC current ranges: 400A, 1000A, +/- (1.5%+5dgts).
- Clamp meter resistance ranges: 400, 4k, 40k, 400k, 4m, 40m, +/- (1% + 2dgts).
- Frequency ranges: 100,1k,10k,100k,400kHz, +/-(0.5%+3dgts).
- Continuity test: audible indication: 400 Ohm, threshold < 40 Ohm.
- General power requirement: one 9V battery.
- Dimensions: 10.8" x 3.6" x 1.7" (275 x 90 x 43mm).
- Weight of clamp meter: 17oz (482g).
- Accessories: test leads, soft carrying case, battery, and owners manual.
