Digital Clamp Multimeter
生產所需時間:
15 - 30 日
產品型號:
CM-2056
品牌名称:
VICI
颜色:
Orange and Black
尺寸:
270 x 123 x 50mm
港口:
Shenzhen
付款方式:
T/T, Western Union
最低訂購數量:
30 piece(s)
是否可訂造:
是
測量範圍:
DCV/ACV/ACA/DCA/Resistance/Capacitance/Frequency/Temperature/Duty cycle testing
工作溫度:
23+-5C
顯示方式:
數字
描述
聯絡供應商
描述

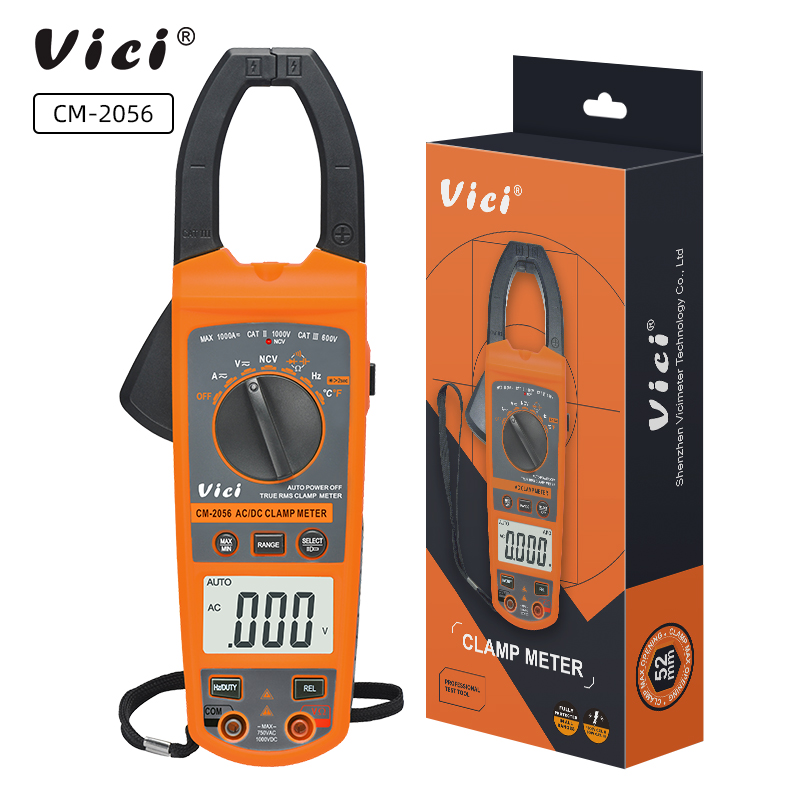

CM-2056 4000 digits digital clamp multimeter resistance capacitance frequency temperature
- 1. Clamp opens 52mm;
- 2. Large LCD display makes reading clear;
- 3. Full function protection, strong anti-interferential performance;
- 4. CE standard design, improves the safety of the test;
- 5. Duty cycle test, REL test, data hold;
- 6. Clamp light, backlight display;
- Body: yellow clamp head: black
- DCV:400Mv/ 4V/ 40V/ 400V/ 1000V ±(0.5%+5)
- ACV:400Mv/ 4V/ 40V/ 400V/ 750V ±(1.0%+5)
- DCA:400A/1000A ±(2.0%+5)
- ACA:400A/1000A ±(2.0%+5)
- Resistance:400Ω/ 4kΩ/ 40kΩ/ 400kΩ/ 4MΩ/ 40MΩ ±(0.8%+3)
- Capacitance:40nF/ 400nF/ 4uF/ 40uF/ 100uF ±(3.5%+5)
- Frequency:10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/ 10MHz ±(0.5%+5)
- Temperature:(-40~ 1000) ℃ ±(1.0%+5)
- Diode test√
- Continuity test:Less than 30Ω±10Ω
- Low battery indicator:Approx. less than 2.4 V
- Data hold√
- Auto power off:About 15 minutes
- Function protection√
- Clamp light√
- Backlight display√
- Input impedance:10MΩ
- Sampling rate:3 times/s
- AC frequency response:Current 50-60Hz/ voltage 50-400Hz
- Operation method:Auto or manual range
- Max display:4000
- Clamp opens:52mm
- Battery:3V (2*AAA battery)
- General Characteristic:
- Meter weight:About 280g (including battery)
- Standard accessory:Test leads, battery, manual, TP01 temperature probe
- Standard packing:Gift box
- Carton size:55.5×26×38cm
- Standard QTY per carton:30pcs
- G.W per carton:26kg
