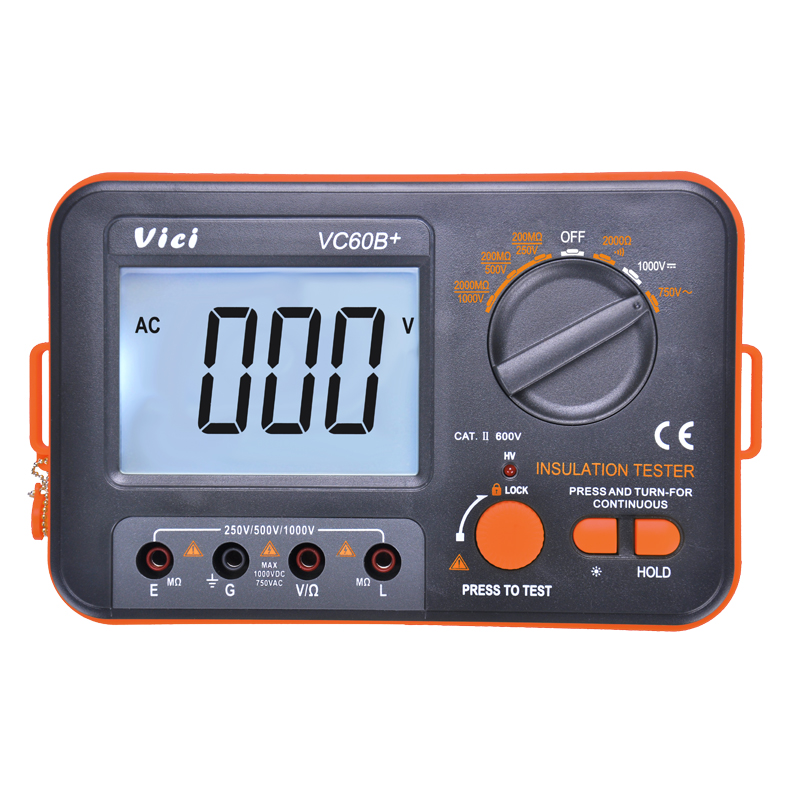

Digital Insulation Tester
生產所需時間:
15 日
產品型號:
VC60B+
品牌名稱:
VICI
顏色:
Orange and Grey
尺寸:
176 (L) x116 (W) x63 (D) mm
港口:
Shenzhen
付款方式:
T/T, Western Union
最低訂購數量:
20 piece(s)
是否可定制:
是
测量范围:
250V/500V/1000V
工作温度:
23+-5C
显示方式:
數字
描述
聯絡供應商
描述
Features:
Gerneral data:
- An accurate, reliable and easy-to-use insulation tester
- Large LCD display, easy to read
- Strong anti-magnetic and anti-jamming function
- Full function protection, anti high voltage circuit design
- Unit symbol display, easy to use
- High voltage and short circuit input alarm
- 250V±10% test voltage: 0~200MΩ
- 500V±10% test voltage: 0~200MΩ
- 1000V±10% test voltage: 0~2GΩ
- Resistance: 0~2kΩ±(1.0%+5)
- DCV: 0~1000V1V
- ACV0~750V: ±(1.5%+5)1V
- Continuity alarm: Less than 30Ω±10Ω
- Low battery indication: Less than approx.7.5V
- Data hold
- LCD backlight: Approx.10Sec.
- Function protection
- Input impedance: 1MΩ
- Sampling rate: 3 times/Sec.
- AC frequency response: 40-200Hz
- Operation mode: Manual range
- Max.display: 1999
- LCD size: 75 x 52mm
- Power source: 1.5V AA battery x6pcs, or external DC 9V power source
- Power consumption: Quiescent current approx.3mA
Gerneral data:
- Color: Orange and Grey
- Weight: 580g (including battery)
- Meter size: 176 (L) x116 (W) x63 (D) mm
- Standard accessory: Test lead, shoulder strap, battery, operation manual
- Packing: Gift box
- Master carton packing:20pcs
- Master carton size: 37x35.5x42.8CM
- Master carton weight :17.1KG
