Digital Multimeter 6000 Digits Auto Range
生產所需時間:
5 - 15 日
產品型號:
VC99
品牌名稱:
VICI
顏色:
Orange and Grey
尺寸:
185x93x35mm
港口:
Shenzhen, Hong Kong
最低訂購數量:
30 piece(s)
是否可訂造:
是
测量范围:
DCV/ACV/DCA/ACA/RESISTANCE/CAPACITANCE/FREQUENCY/TEMPERATURE/DIDODE/HFE TEST
描述
聯絡供應商
描述
Features:
- 1.New type holster, streamline design;
- 2.Large LCD makes the reading clearly;
- 3.Strong antimagnetic and anti-jamming performance;
- 4.Full function protection,;
- 5.Unit symbol display, very easy to reading;
- 6.Relative value, frequency/duty cycle measuring, data hold.
- 7.CE certified, OEM available.
- Technical data: Accuracy
- DCV:600mV/6V/60V/600V/1000V ±(0.5%+4)
- ACV:6V/60/600/1000V ±(0.8%+6)
- DCA:600uA/6000uA/60mA/600mA/6A/20A ±(0.8%+3)
- ACA:600uA/6000uA/60mA/600mA/6A/20A ±(1.5%+10)
- Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+5)
- Capacitance:40nF/ 400nF/4uF/40uF/400uF/2000uF ±(3.5%+8)
- Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/60MHz ±(0.5%+4)
- Centigrade temperature:
- -40℃～1000℃ ±(0.75%+3)
- 0℉～1832℉ ±(1.2%+3)
- Special functions:
- Diode test
- hFE test
- Continuity test: Approx. less than 30Ω±10Ω
- Low battery indication: Approx less than 2.4V
- Duty cycle measuring
- Data hold
- Auto power off: Approx.15minutes
- Analog bar
- Function protect
- Input impendence: 10MΩ
- Sampling rate: 3times/s
- AC frequency response: 40-400Hz
- Operation way:Manual or auto range
- Max. display: 6000
- LCD size:65x41mm
- Battery:3V AAA×2
- Power dissipation:Quiescent current approx. 2mA
- Package details:

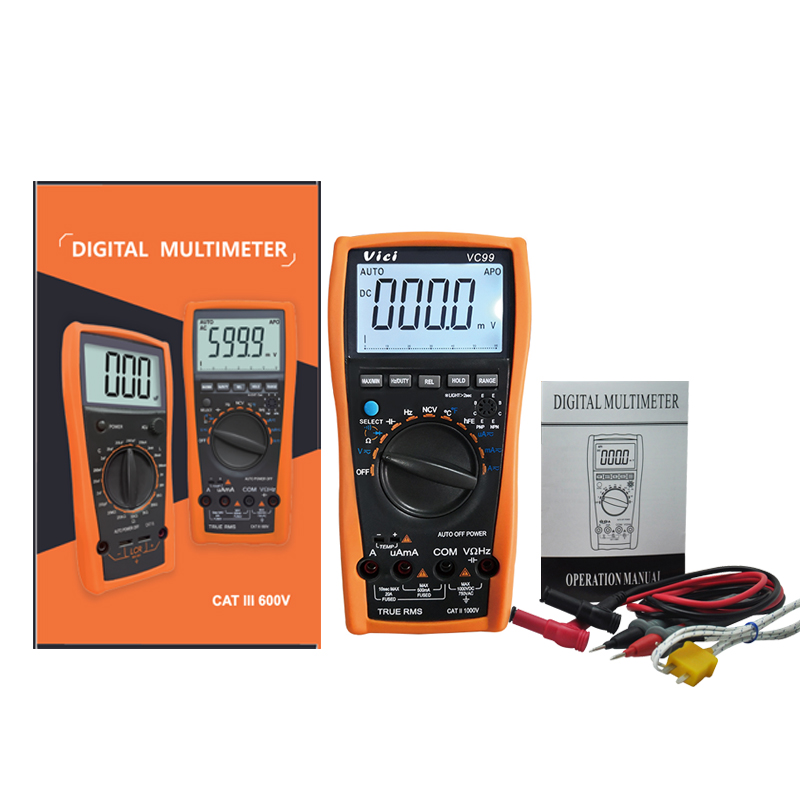

- Standard accessory:Test leads, battery, manual, TP01 temperature probe
- Packing:Gift box
- Standard packing per carton:30pcs
- Carton size:45.5×32.5×43.5cm
- Standard G.W per carton:17kg
