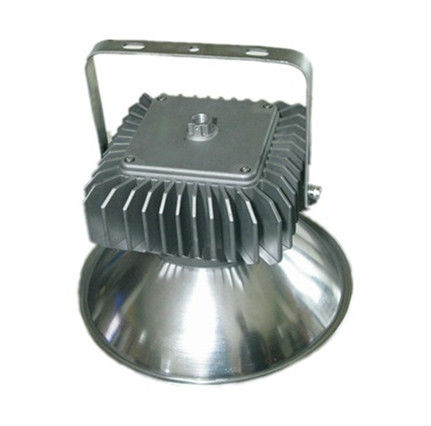

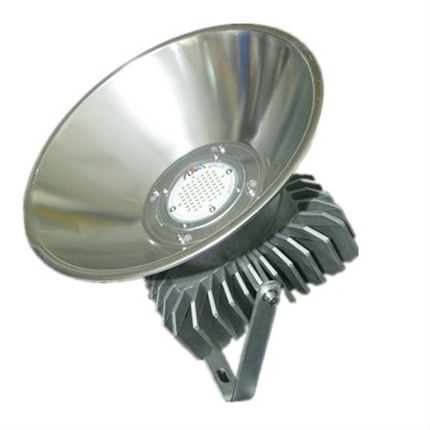

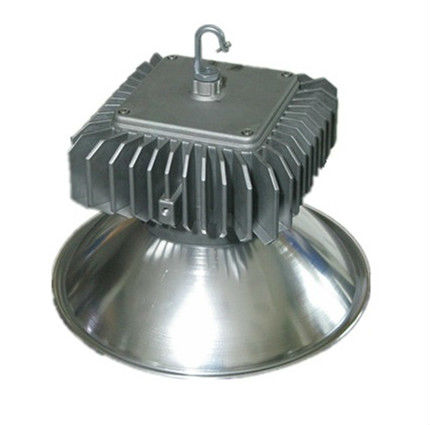

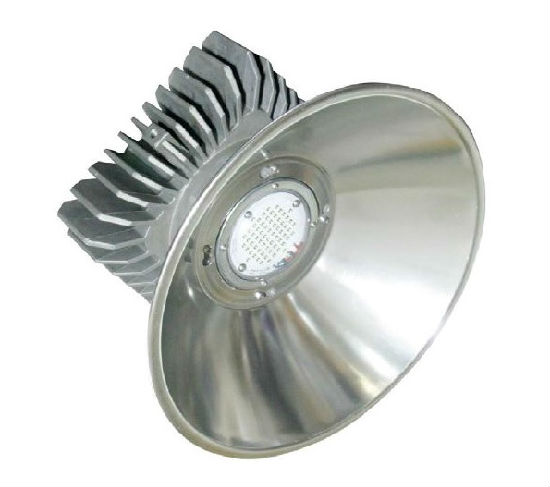

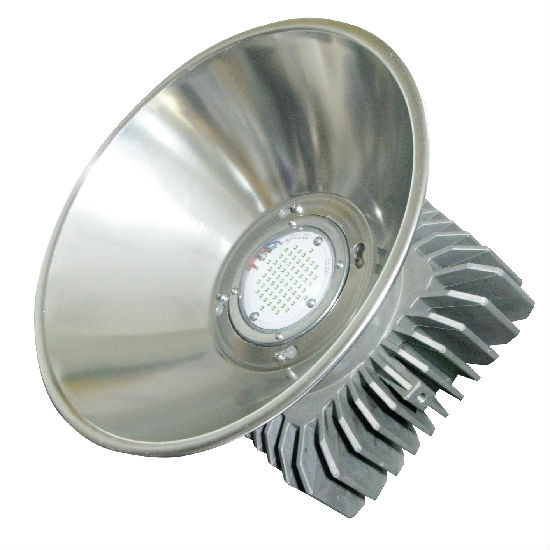

Dimmable 180W LED Industrial High Bay Light

生產所需時間:

10 日

產品型號:

ZHHB-180A

品牌名稱:

Zhihai

顏色:

Gray

尺寸:

Lamp Body: 263x263x155mm / Lamp Shade: Ø400mm

港口:

Tianjin, Beijing

付款方式:

T/T

最低訂購數量:

電壓(伏):

80-315Vac

證書:

歐盟CE認證, CQC認證, 歐盟LVD認證, 符合RoHS指令, 澳洲SAA認證, 德國VDE證書, C-tick

功率(瓦):

180

保養期:

3/5 年

底座類型:

hooK or flood bracket

光源:

發光二極管照明燈泡

主體物料:

鋁, 聚碳酸酯 (PC), 不銹鋼

可調亮度:

可以

電源:

交流電, 直流電, 太陽能

包含燈泡:

不包含

描述

聯絡供應商

Features & Characteristics:

 Patent design, ideal for different applications
 5-5-10 year warranty
 Osram/Cree LED chips, 120 lm/w system efficiency*
 80% lumen maintenance over 50,000hours
 0-10Vdc dimming driver available
 Built-in surge protection
 Built-in thermal protection
 Maintenance free
 Mercury free, No UV or IR
 Universal input without additional adapter,80- 315Vac, 80-400Vdc
 Instant start and flicker free
 High uniformity and color rendering
 Universal input without additional adapter

Parameters:
Watt: 180W
Initial Lumen Flux(6000K): 21600lm
Replace HID Lamp: 400W-600W
Dimension: Lamp Body:263x263x155mm/Lamp Shade:Ø400mm
Net Weight: 8kg(17.6lbs)
Color Temperature: 4000K(WW)/6000K(CW)
Color Rendering: ≥Ra75
Working Life: ≥50000Hrs
Housing Material: Aluminum
Coating: Zinc Rich Paint
IP Class: IP 65 (Upgradeable to IP 67)
Insulation Class: Class I (Upgradeable to Class II)
Working Temperature: -40C ~ 60C / -40F ~ 140F
Working Humidity: 10% ~ 95%
AC Input: 80 ~ 315Vac, (347Vac available on request)
DC Input: 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request)
THD: <10%
Power Factor: ≥0.98
Beam Angle Available: 60degree and 30degree

Accessories & Control Systems:
N/A-- High Bay Hook included as default
ZHHB-BR-FL-- High Bay flood light bracket
ZHHB-CV-GL-- High Bay glass cover
-DM -- 0-10vdc dimming driver
