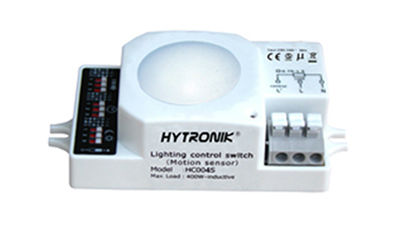

Domestic Version Microwave Motion Sensor Detector

產品型號:

HC004/S

品牌名稱:

HYTRONIK

顏色:

White

港口:

Shenzhen, China

付款方式:

T/T, L/C

描述

聯絡供應商

This sensor has exactly the same function as the economy version. It is a simplified cost effective model to the standard version and it is designed for built-in compact lighting fixtures for consumer home lighting application.

Technical data:

Operating voltage: HC004S—220-240V; HC104S—120V.
Switched power: HC004S—400W; HC104S—200W.
Standby power: 0.6W (standby), 1.2W (operation).
Detection area: 10/50/100%, can be customized.
Hold time: 5s/45s/1min/3min/5min, can be customized.
Daylight threshold: 5-50 lux, daylight/twilight/darkness, can be customized.
Sensor principle: microwave motion detector.
Microwave frequency: 5.8GHz+/-75MHz.
Microwave power: <1mW.
Detection range: max. (diameter, height) 20m, 3m.
Detection angle: 30—170 degree.
Motion detection: 1-20km/h (<3m mounting height); 1-200km/h (>5m height).
Mounting height: 0.5~5m.
Operating temperature: -10~60 degree.
IP rating: IP 20 (mounting inside a lamp); IP65 (mounting in Hytronik special box).
