World hand receiver radio Dualband vehicle radio BJ-9900 newest type air band receiving most power output cross band
VHF/UHF dual reception
Dual channel reception( A can hear the voice from B and C at the same time)

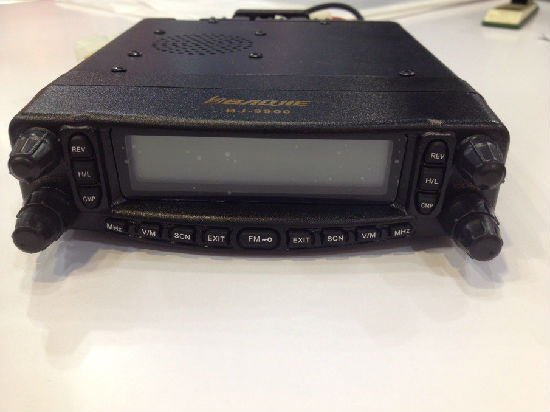

Front panel switches & controls
Compander
DTMF encode/decode(8 groups selectable)
7 kinds of backlight selectable
Cross band repeat capability
Input frequency directly through MIC
Scrambler
FM radio built-in
4 kinds of burst tone selectable (1000Hz/1450Hz/1750Hz/2100Hz)
Large LCD display
Air - band receiving
1200/9600 bps (B type)
CTCSS&DCS Encode/Decode
Scanning
Busy channel lock
TOT
High/ Low power selectable
Specifications

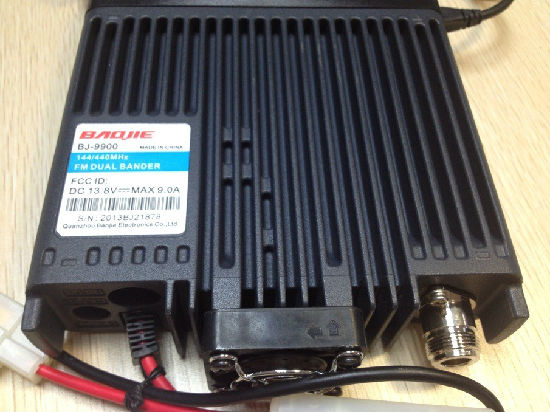

BJ-9900 FM Dual Bander
General
Frequency range
136-174MHz(144-148MHz) 400-470MHz(430-440MHz)
Air band(RX): AM109-135.995MHz
Memory channels
128
Bandwidth
Wide: 25kHz
Narrow: 12.5kHz
PLL channel stepping
5/6.25/10/12.5/25 kHz
Operating voltage
13.8VDC±15%
Current drain
Standby: Less than 0.4A
Transmit: Less than 8.0A
Operate temperature range
–20°C-+60°C
Weight
1200g
Dimensions
168*41.5*140mm
Transmitter
RF output power
VHF 40W/20W(144MHz)
UHF 35W/20W(440MHz)
Spurious and harmonics
70dB
Modulation
Wide: 16K0F3E
Narrow: 11K0F3E
FM Modulation Noise
Wide:45dB Narrow: 40dB
Audio distortion
Less than 3%
Frequency Stability
±2.5PPM
Receiver
Sensitivity(12dB SINAD)
Wide: 0.18uV Narrow: 0.22uV
Selectivity
Wide: 70dB Narrow: 60dB
Intermodulation
Wide: 70dB Narrow: 60dB
Spurious response
75dB
Audio power output
2.0W/8Ω
Frequency Stability
±2.5PPM
selling point
1.Air-band receiving
2.Front panel switches &controls
3.Cross-band repeater
4.Large LCD display
5.FM radio built-in
