Dual-color COB Lens

美元 $0.20 - 美元 $1.50

生產所需時間:

15 日

運送方式:

by sea by air

Brand:

Wisertop

描述

聯絡供應商

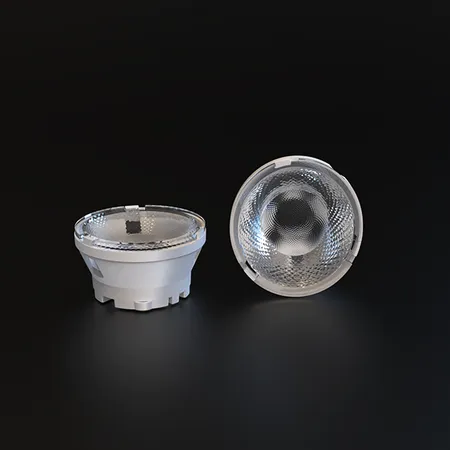

PMMA Mixing color Wall Washer LED Light Lens VA 36° For Down Light Diameter 32mm

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PMMA all available

Lens features:

● It has excellent color mixing characteristics and is compatible with a variety of two-color chip arrangements and some multi-color arrangement light sources.● Lamp color drift is small after lens; Single color light source color drift is no more than 0.5SDCM after lens, for example, light source fill in 2 SDCM, after lens no more than 2.5SDCM.● The light angles at different view are clearly distinguishable.● Soft and comfortable auxiliary lighting characteristics; no light exposure in the center of the spot, no stray light after light be cut off, clean and comfortable.● The interception of light is natural, lamp fit space better

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-32@16-M15COBL6-C2	¢4mm COB	15°	φ31.8×16	93%	PMMA
WT-32@16-M24COBL6-C2	¢4mm COB	24°		93%	PMMA
WT-32@16-M36COBL6-C2	¢4mm COB	36°		93%	PMMA

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
