Eco-v 6-12W, 100-240Vac, Constant current LED Driver in small case

美元 $1.44 - 美元 $1.62

美元 $1.60 - 美元 $1.80

生產所需時間:

7-35 日

運送方式:

By sea, by air, by train, by courier

應用:

LED Luminaires

品牌:

SINOBASE

特性:

Wide range of voltage input 100-240Vac

材料:

Plastic case

光源:

發光二極管照明

電源類型:

交流电

描述

聯絡供應商

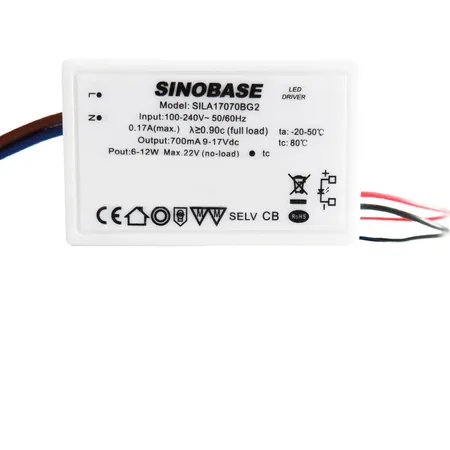

Small-sized water-proof LED driver (SinoBase) 6-12W, 100-240Vac Eco-v series

With 50,000Hrs warranty, optional for water-proof version

Features:

· Design in small size to fit your lamp；

· Easy for installation with cables at both ends；
· Constant current mode；
· Output SELV protection, short circiut, over current and over voltage protection；
· Extremely high precision output current；

· A wide range of input voltage 100-240Vac;

Specification：

Power	Model	U_input (Vac)	U_output (Vdc)	Rated I_output (A)	Ta(℃)	Tc (℃)	Max power (W)	Size (LWH, mm)
6-12W	SILA60020BG2	100-240V～50/60Hz	30-60	0.2	-20-50	80	12	693523.5
6-12W	SILA48025BG2	100-240V～50/60Hz	24-48	0.25	-20-50	80	12	693523.5
6-12W	SILA40030BG2	100-240V～50/60Hz	20-40	0.3	-20-50	80	12	693523.5
6-12W	SILA34035BG2	100-240V～50/60Hz	17-34	0.35	-20-50	80	11.9	693523.5
6-12W	SILA30040BG2	100-240V～50/60Hz	15-30	0.4	-20-50	80	12	693523.5
6-12W	SILA27045BG2	100-240V～50/60Hz	13-27	0.45	-20-50	80	12.15	693523.5
6-12W	SILA24050BG2	100-240V～50/60Hz	12-24	0.5	-20-50	80	12	693523.5
6-12W	SILA22055BG2	100-240V～50/60Hz	11-22	0.55	-20-50	80	12.1	693523.5
6-12W	SILA20060BG2	100-240V～50/60Hz	10-20	0.6	-20-50	80	12	693523.5
6-12W	SILA18065BG2	100-240V～50/60Hz	9-18	0.65	-20-50	80	11.7	693523.5
6-12W	SILA17070BG2	100-240V～50/60Hz	8-17	0.7	-20-50	80	11.9	693523.5

P.S.:

* The current step is 50mA, contact us for the specs outside of above tables.

* Option for glue potting or not as per you demand.

Certification：TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP

Application：

Design for all applicable LED luminaries with small-size led drivers, such as wall lamp, garden lamp, bollards, recessed light and other available luminaries, etc...
