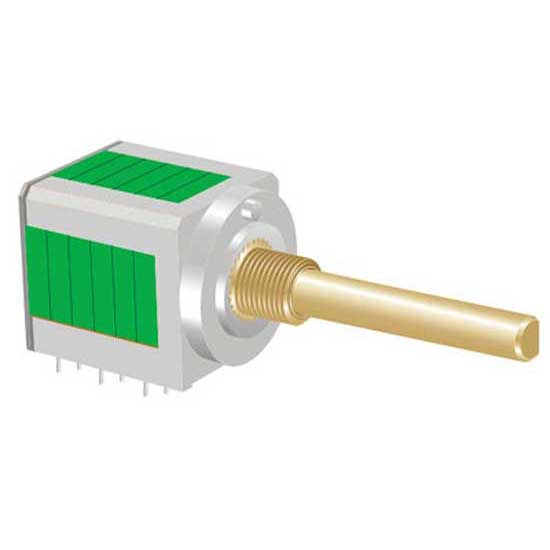

This is an encoder to be installed in a circuit to convert codes in one format. The encoder can work in a rotational way with an angle of 360° and work stably under a wide temperature range (-30 to 60℃). This efficient encoder can be applied in general electrical circuits.

• Rotational torque: 0.9±0.5Kgf.cm.
• Push-pull strength 10Kgf.cm for 15 seconds.
• Angle of throw: 9° x 40 channels.
• Terminal without loosening and damage.
• Applied 0.5kg force on top of terminal in any direction for 1 minute.
• Contact resistance: 1Ω maximum (including resistance of circuit).
• After being rotated several times, measured by voltage decreasing method at 5V DC 1A of less than 2mv 1K Hz.
• Insulation resistance: 100MΩ minimum at 100V DC.
• No subversion on insulating material: 250V AC (50-60Hz) per minute.
• Rotational life: 10,000 cycles without load, 16-20 times per minute.
• Soldering heat resistance: 350℃ at 3 seconds.
